Line Follower Sensor- 8 Array, Line Tracking Sensor Module 8 Channel
All Prices Incuding GST
Local Pickup
Estimated time to pack : 15 Mins.
Fast Delivery
Same Day Dispatch.
Bulk Purchase

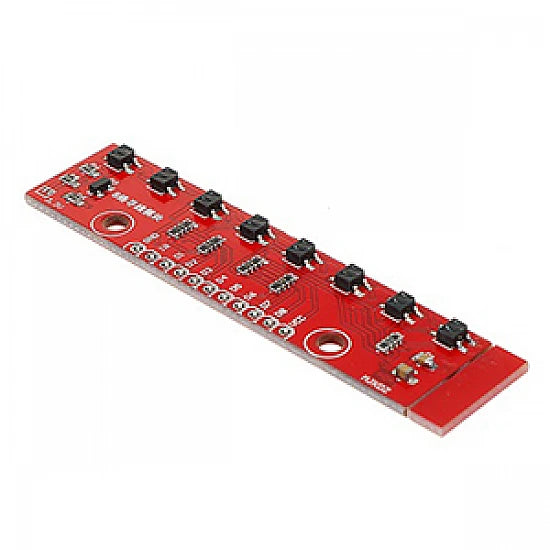

This sensor module contains 8 IR LED/phototransistor pairs. Each sensor has a separate digital I/O measurable output . This reflection sensor array is designed to be used as a line sensor, but it may also be used as a proximity or reflection sensor. The module serves as a carrier for eight IR emitter and receiver (photo-transistor) pairs that are uniformly placed at 0.35" inch intervals ".
This module finds application in DIY models of ROBOTS, Smart Cars, and other devices.
It works by detecting infrared light that is emitted, reflected, and detected by the synchronous circuit. The intensity of the light is then utilized to determine if an item exists. It can easily distinguish between black and white lines. In other words, when a phototransistor passes through black and white lines, its different conduction levels might produce different output voltages. The value of all 8 outputs is used to determine the position of the tracking line.
Pin out:
- GND: Ground
- VCC: Input voltage
- IR: Infrared Enable
- D1-D8: Sensor Output
SPECIFICATIONS
| Operating Voltage | 3.3V ~ 5V DC |
| Operating Current | 100mA |
| Output Signal Type | Digital |
| Optimal Sensing Distance | 3.0mm |
| Maximum Sensing distance | 9.5mm |
| Size | 67x17x3.2mm |
- Shipping Time:- Our orders are shipped within 24 Hours.
- Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
- Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
- Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
- Return:- Item mismatch or parts missing etc.
- No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
- We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
