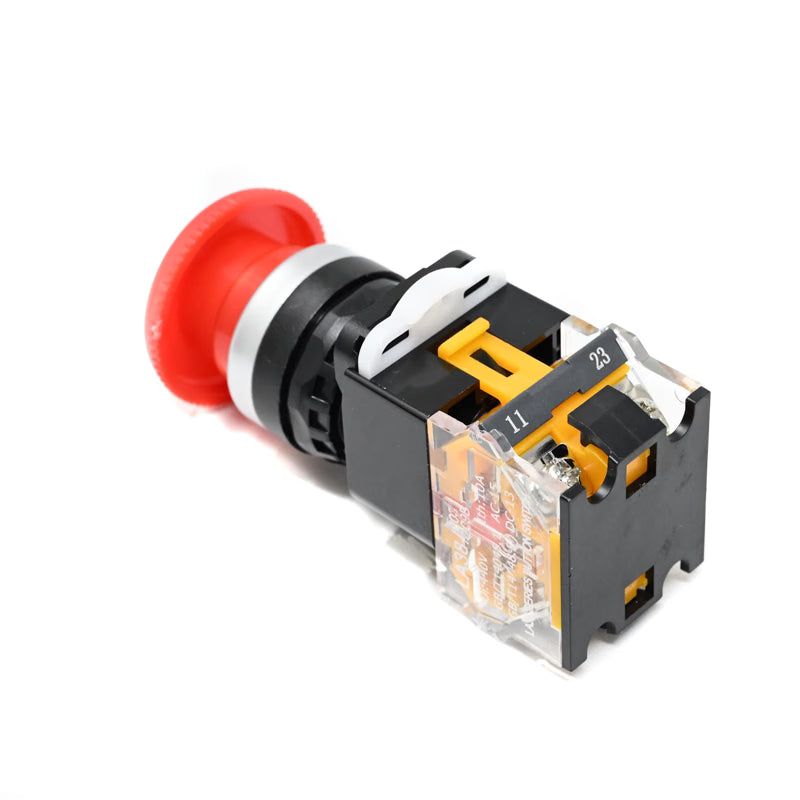

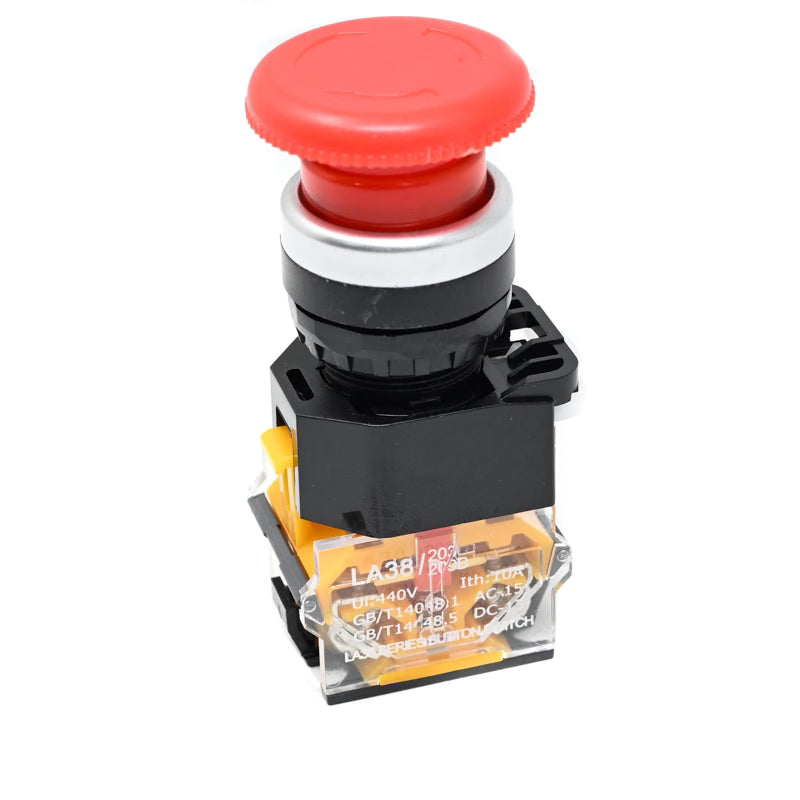

LA38-11ZS 22mm Mushroom Head Emergency Push Button Switch (Red)

• MPN: LA38-11ZS

• Color: Red
• Switch Operation: Latching

• Current/Voltage Rating: 10A 600V

• Operating Temperature: -25C~+85C

• Insulation Resistance: 100mΩ min (500VDC)

• Electrical Life: > =10,000 Cycles

• Dielectric Strength: 500VAC 1 minute

Features:

• Durable: Made with high-quality materials and sealed against dust and moisture.
• Easy to use: Large, red mushroom head button is easy to find and press, even in low-light conditions.
• Reliable: Momentary action ensures the button only stays engaged while pressed.

LA38-11ZS 22mm Mushroom Head Emergency Push Button Switch. It is a self-locking switch, meaning that it latches in the pressed position and must be manually reset to turn off. It has a 1NO + 1NC contact configuration, which means that it has one normally open (NO) contact and one normally closed (NC) contact. The NO contact opens when the button is pressed, and the NC contact closes. It is rated for 10A at 440VAC. This type of switch is commonly used in industrial applications to stop machinery in an emergency. It is also used in some consumer products, such as power tools and treadmills.
