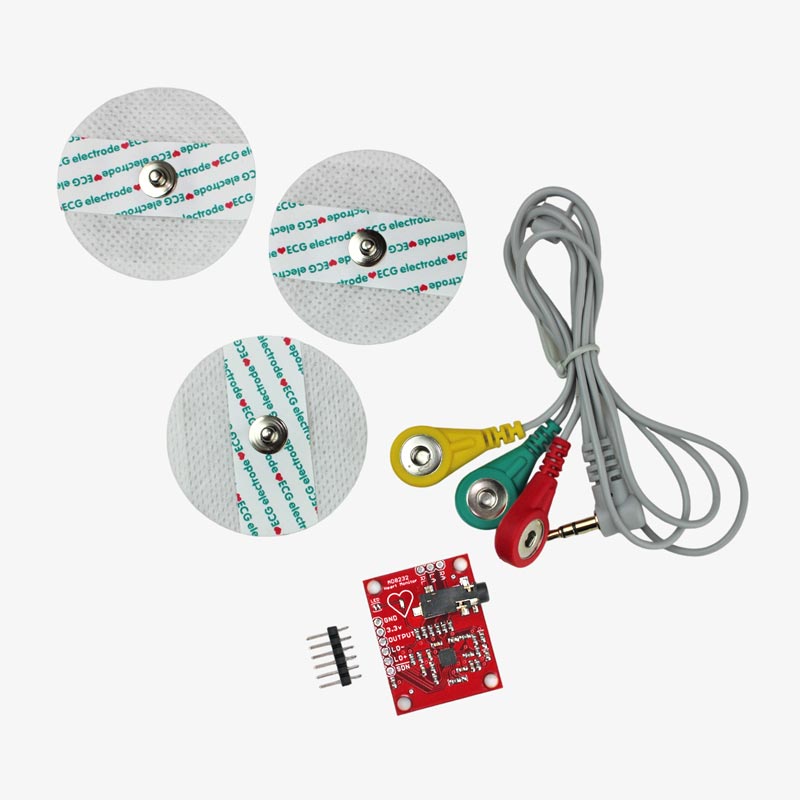

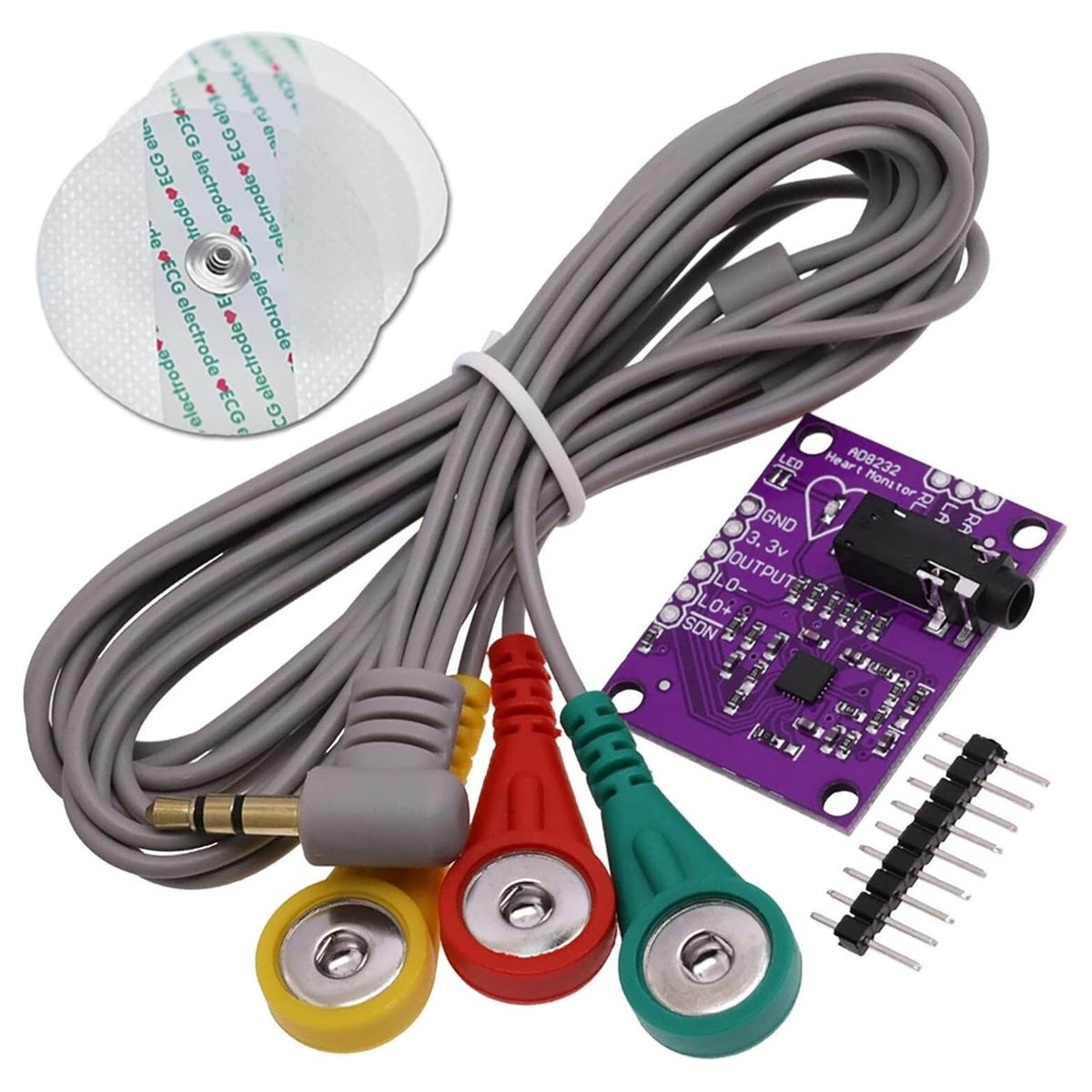

Heart Rate Monitor Kit with AD8232 ECG Sensor Module Kit

Explore ECG Signals with the AD8232 Heart Rate Monitor Kit

Bring biopotential sensing to your electronics workbench with this AD8232 ECG sensor module kit. Designed to extract, amplify and filter small electrical signals, the single-lead module provides an analog output for ECG waveform experiments with Arduino and other suitable development boards.

From learning how signal conditioning works to plotting a waveform in an educational project, this module offers a practical starting point for students, makers and electronics enthusiasts.

Key Features

• AD8232 signal conditioning: Extracts, amplifies and filters small biopotential signals.
• Single-lead ECG sensing: Supports experiments involving the electrical activity of the heart.
• Analog output: Connects to a suitable microcontroller analog input for signal acquisition and visualization.
• Leads-off detection: LO+ and LO− connections support electrode-disconnection detection.
• Shutdown control: SDN connection provides access to the shutdown function.
• Onboard LED indicator: Provides a visual indication during operation.
• 3.5 mm connection: Jack for a compatible electrode lead cable.

Connections and Integration

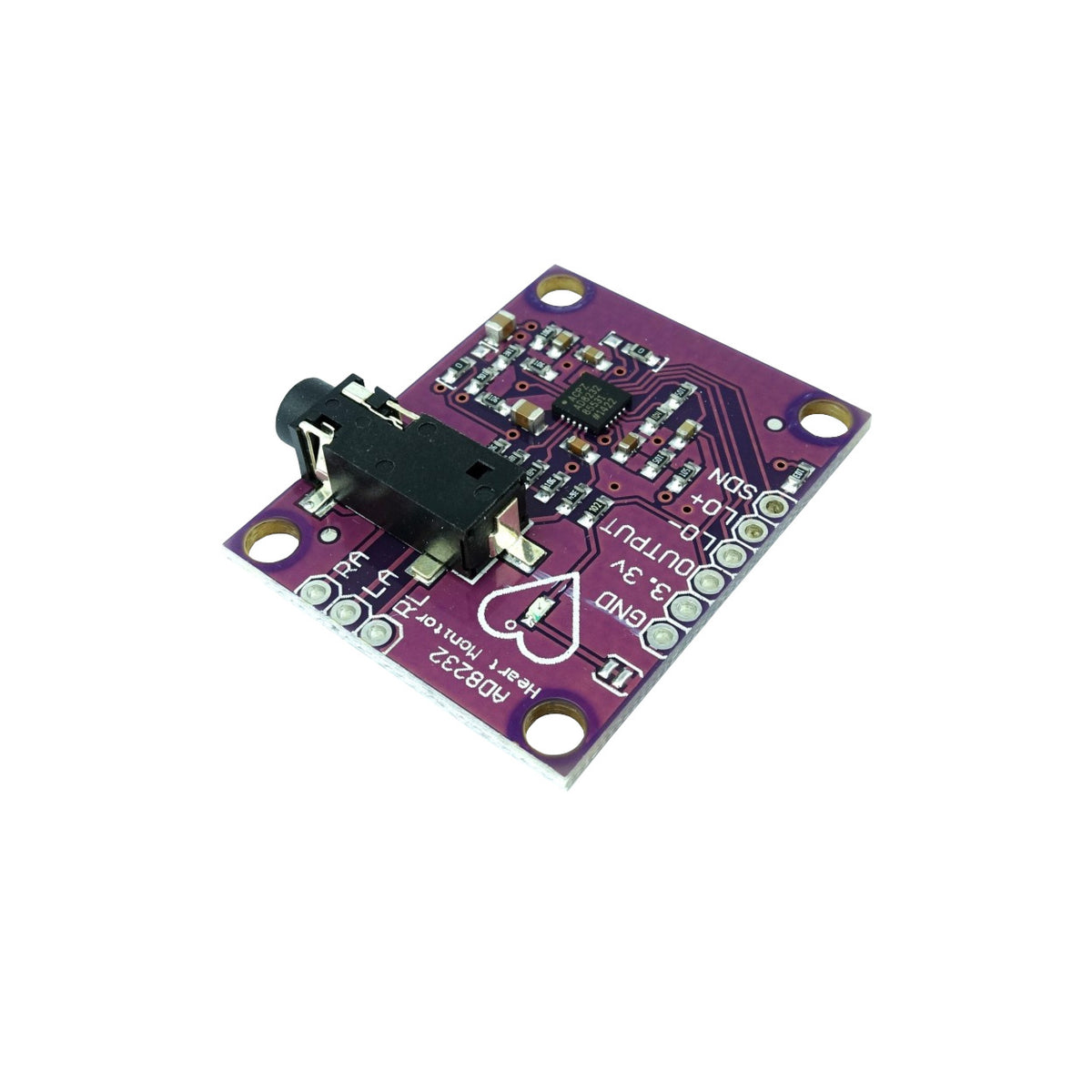

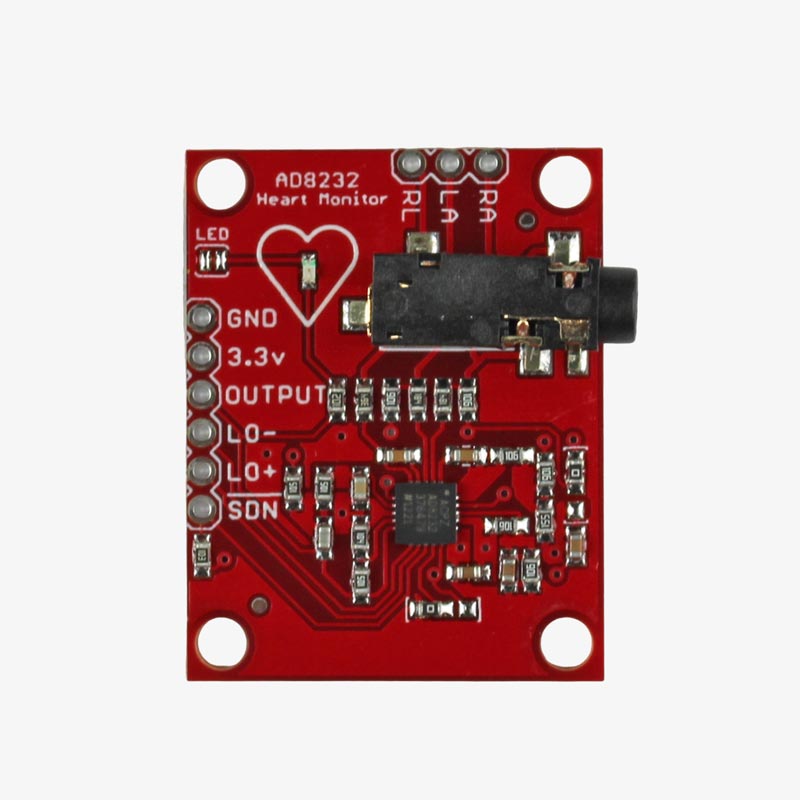

The module exposes connections including 3.3V, GND, OUTPUT, LO+, LO− and SDN. Check the board pin labels, supply requirements and your development board's analog-input limits before wiring. Additional hardware and programming are required to acquire and display the signal.

Project Ideas

• Educational ECG waveform visualization.
• Arduino-based analog signal acquisition.
• Biopotential signal-conditioning demonstrations.
• Student electronics and sensor-interface prototypes.

Important Usage Note

Intended for educational experimentation and prototyping, not for medical diagnosis, treatment or clinical monitoring. Follow appropriate electrical-safety precautions for any body-connected electronics. Do not rely on experimental readings for health decisions.
