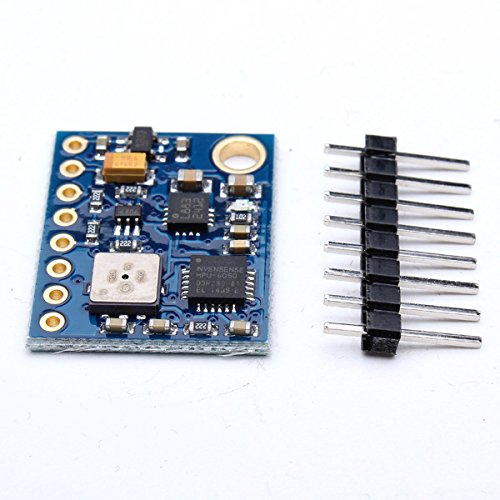

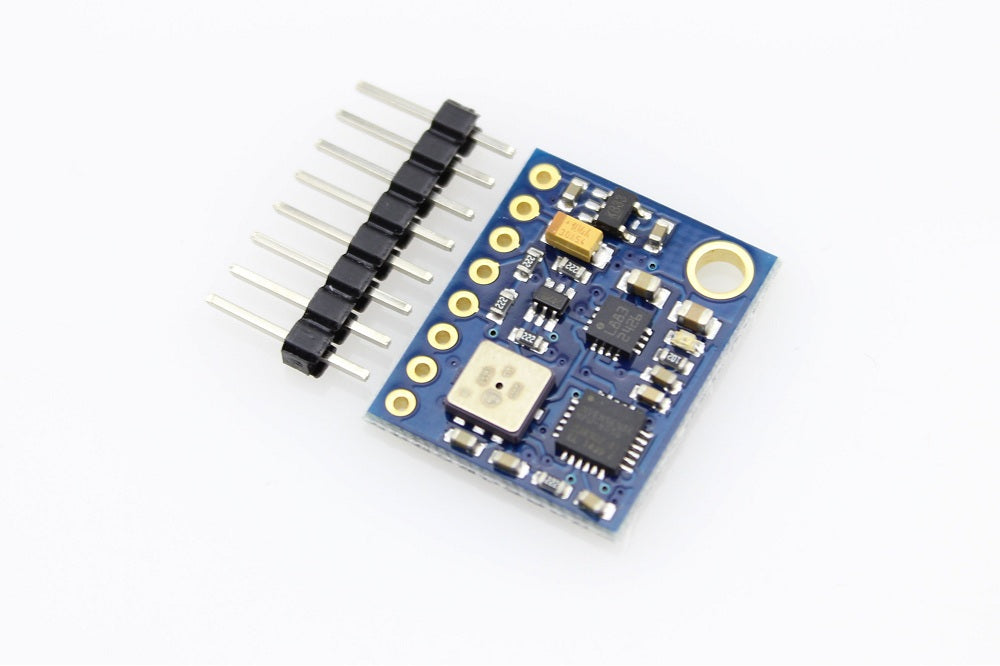

The GY-88 10DOF IMU Module includes the MPU 6050 Motion Sensor,HMC5883L module and BMP085 barometer pressure sensor on a single board for a complete orientation and heading measurement.The  MPU6050 sensor  is the world’s first integrated 6-axis Motion Tracking device, that combines a 3-axis gyroscope, 3-axis accelerometer, and a Digital Motion Processor(DMP).The Honeywell’s HMC5883L  is a 3-axis digital compass. The BMP085 is a high-accuracy chip to detect barometric pressure and temperature.You can uses it in your DIY or your product,for example, Quadcopter, Self-Balancing Robot and so on.

Features

• Three 16-bit analog-to-digital converters (ADCs) for digitizing the gyroscope outputs

• Three 16-bit ADCs for digitizing the accelerometer outputs

• A 12-bit ADCs for digitizing the magnetometer outputs

• Gyroscope full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps)

• Accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g

• Wide Magnetic Field range:+/-8 Oe

• Pressure range:300 to1100hPa (+9000m to -500m above sea level)

• I2C interfaces

• Power supply: 3-5v

Applications

• TouchAnywhere™ technology (for “no touch” UI Application Control/Navigation)

• MotionCommand™ technology (for Gesture Short-cuts)

• Motion-enabled game and application framework

• Location based services, points of interest, and dead reckoning

• Handset and portable gaming

• Motion-based game controllers

• 3D remote controls for Internet connected DTVs and set top boxes, 3D mice

• Wearable sensors for health, fitness and sports

• Enhancement of GPS navigation
