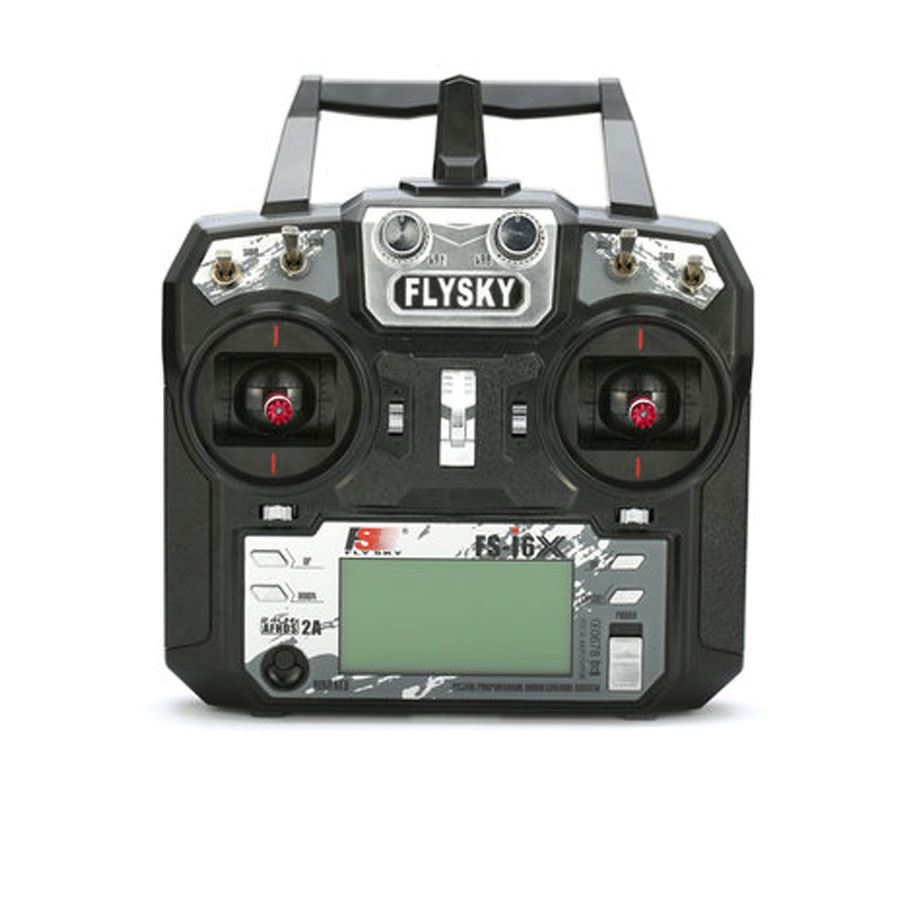

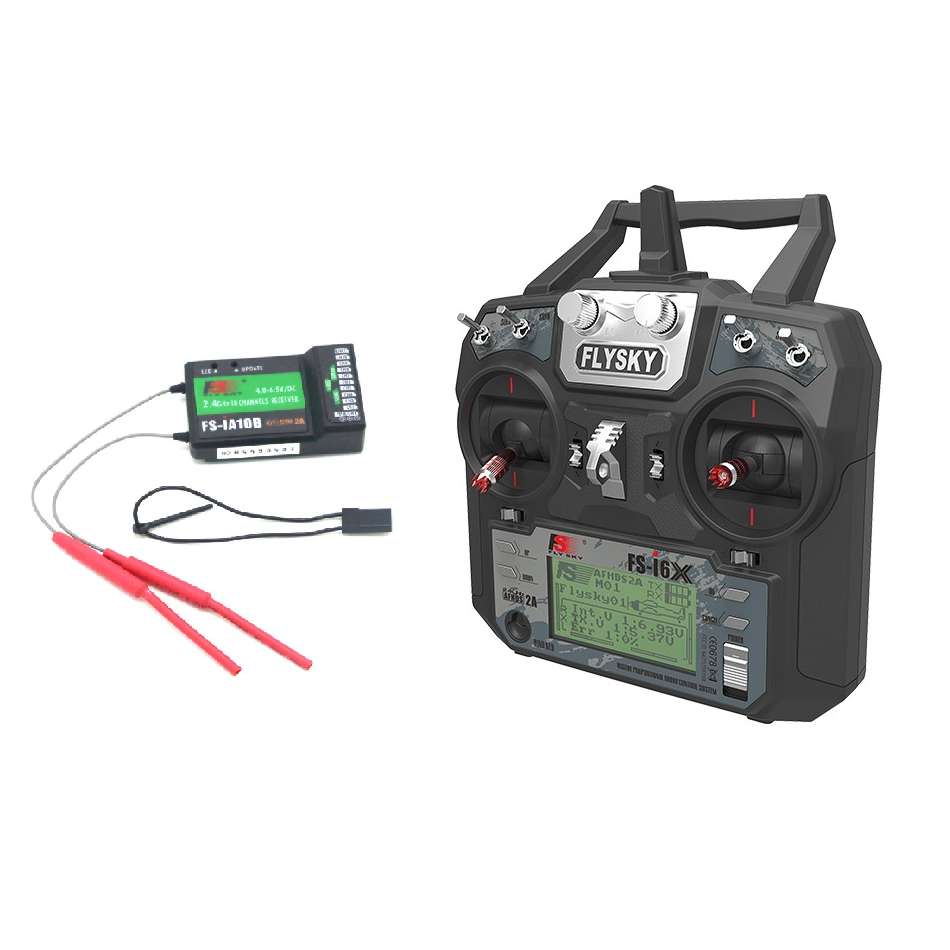

Flysky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver

• Transmitter: FS-i6X (6 Channels)

• Receiver: FS-iA10B (10 Channels)

• RF Range: 2.408-2.475 GHz.

• RF Power : < 20 dBm.

• RF Channel: 135.

• Bandwidth: 500 KHz.

• Total Weight: 392 gm.

• Power: 6V DC 1.5A.

The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and presented by FLYSKY is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,

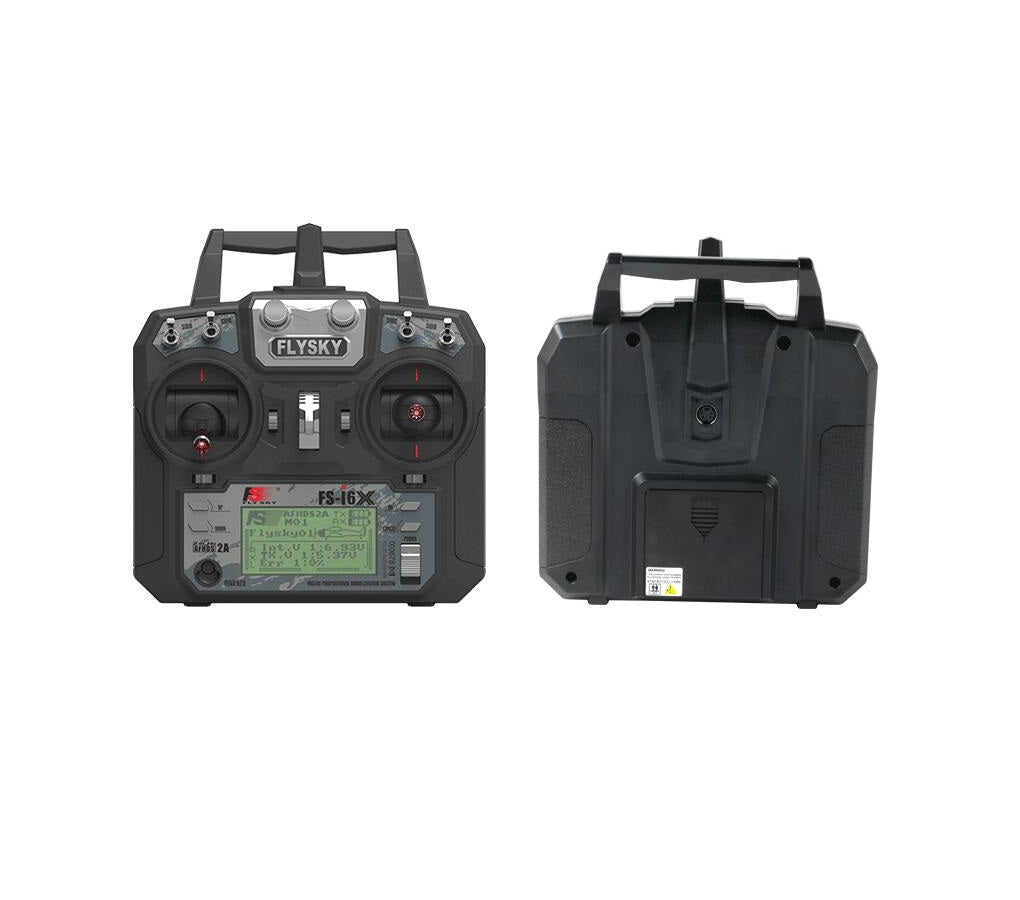

Specification  for FS-i6X RC Transmitter :

• Item: FS-i6X RC Transmitter

• Tx Channel: 6

• Model Type: Fixed-Wing/Glider/Helicopter

• RF Range: 2.408-2.475GHz

• RF Power : < 20dBm

• RF Channel: 135

• Bandwidth : 500KHz

• 2.4GHz System : AFHDS 2A / AFDHS

• Modulation Type: GFSK

• Stick Resolution: 4096

• Low Voltage Warning: < 4.2V

• DSC port: PS/2 Port PPM

• Chargeable: No

• Antenna Length: 26mm (Dual Antenna)

• Weight: 392g

• Power : 6V DC 1.5A

• Size : 174 x 89 x 190 mm

• Online Update: Yes

• Color: Black

• Certificate: CE0678, FCC

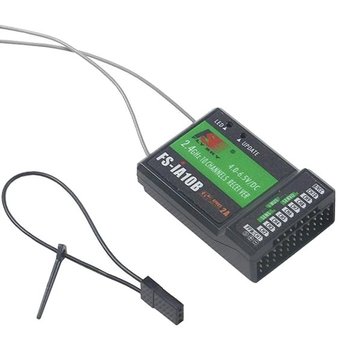

Specifications for FS-iA10B RC Receiver:

• Rx Channels: 10

• Suitable models: Airplane / glider / helicopter Health

• Frequency range :2.4-2 .48 GHz

• Transmitting power: not more than 20dBm

• Receiver sensitivity:-105dBm

• 2.4G modes: automatic frequency second generation digital system

• Encoding: GFSK

• Antenna length: 26 mm * 2 (dual antenna)

• Weight: 19.3 g

• Input power :4.0-6 .5 V DC

• Dimensions: 47 x 33.1 x 14.7 mm

• Color: Black

• Certification: CE0678, FCC

• i-BUS Interface: Yes

• Data acquisition interface: Yes

• Color: Black.

• Model Type : Airplane / Glider / Helicopter

• Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

Package Includes :
