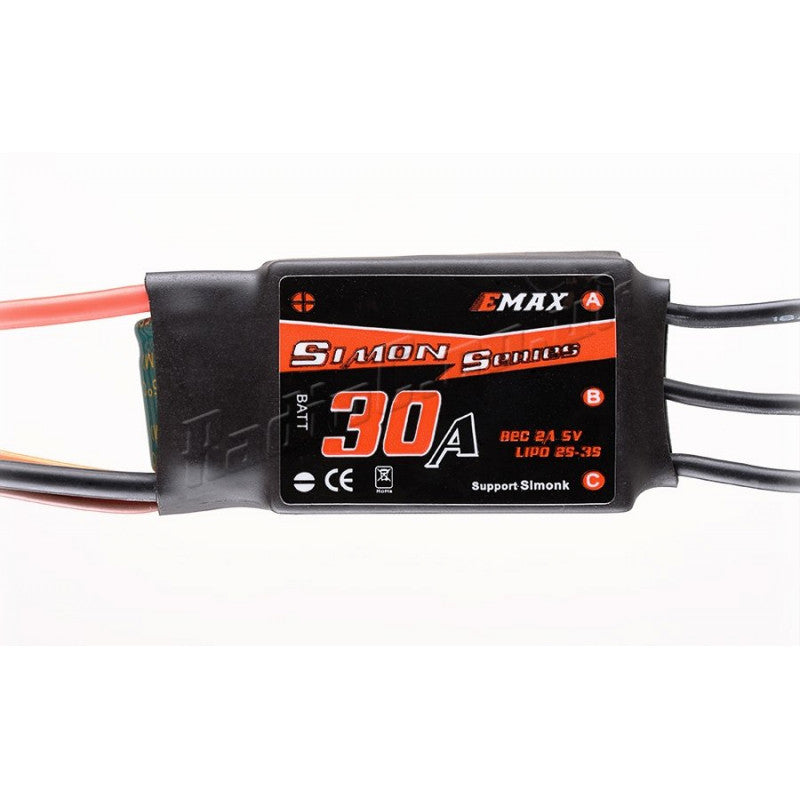

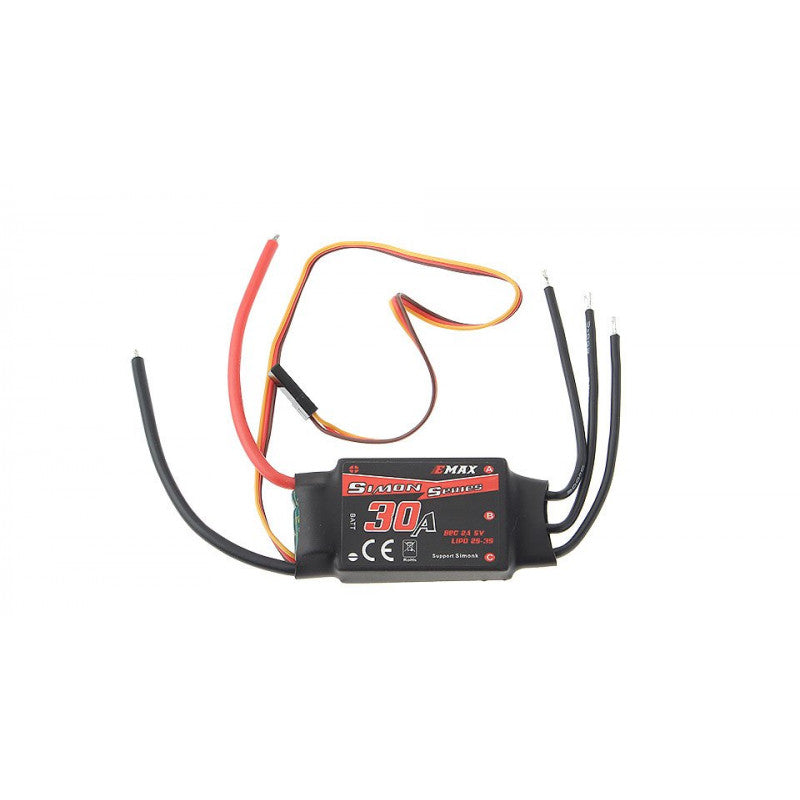

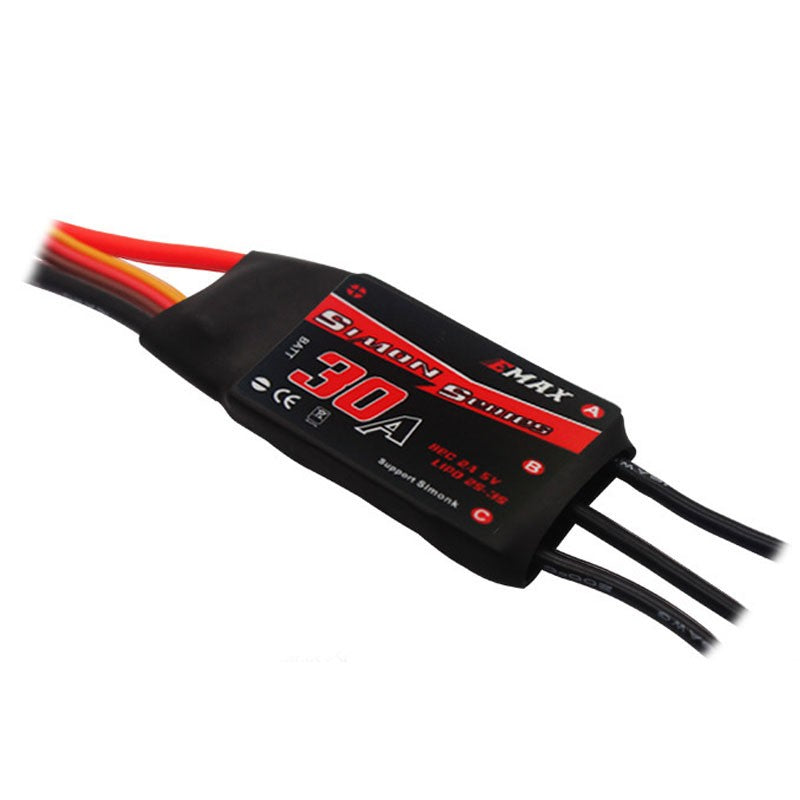

EMAX 30A SIMON SERIES MULTIROTOR BRUSHLESS ESC (ORIGINAL)
EMAX 30A SIMON SERIES MULTIROTOR BRUSHLESS ESC (ORIGINAL)
Regular price
Rs. 1,649.00
Regular price
Sale price
Rs. 1,649.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Emax Simon Series Multirotor 30A Brushless ESC (Original) is a brushless dc motor speed controller. The low output resistance greatly enhances power stability, and this will improve the great battery life. Emax SimonK Series Multirotor 30A Brushless ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.
Features:
- Based on SimonK firmware, further optimized to the perfect drive performance.
- Low-voltage protection, over-heat protection, and throttle signal loss protection.
- Separate power supply for MCU and BEC, enhancing the ESCs ability to eliminate magnetic interference.
- Parameters of the ESC can be set via a program card or transmitter.
- Throttle range can be set to be compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Package Includes:
1x Emax SimonK Series Multirotor 30A Brushless ESC module.
Specifications:
| Model |
Emax SimonK Series 30A |
| Burst Current (A) |
40 |
| Constant Current (A) |
30 |
| BEC |
Yes (5V/2A) |
| Suitable Lipo Batteries |
2 ~ 3S |
| Color |
Black and Red |
| Dimensions (mm) LxWxH |
52 x 26 x 7 |
| Weight (gm) |
28 |
| Application |
BLDC Motors, Multirotors, Rc Planes etc. |
|
|
* Product Images are shown for illustrative purposes only and may differ from actual product.
