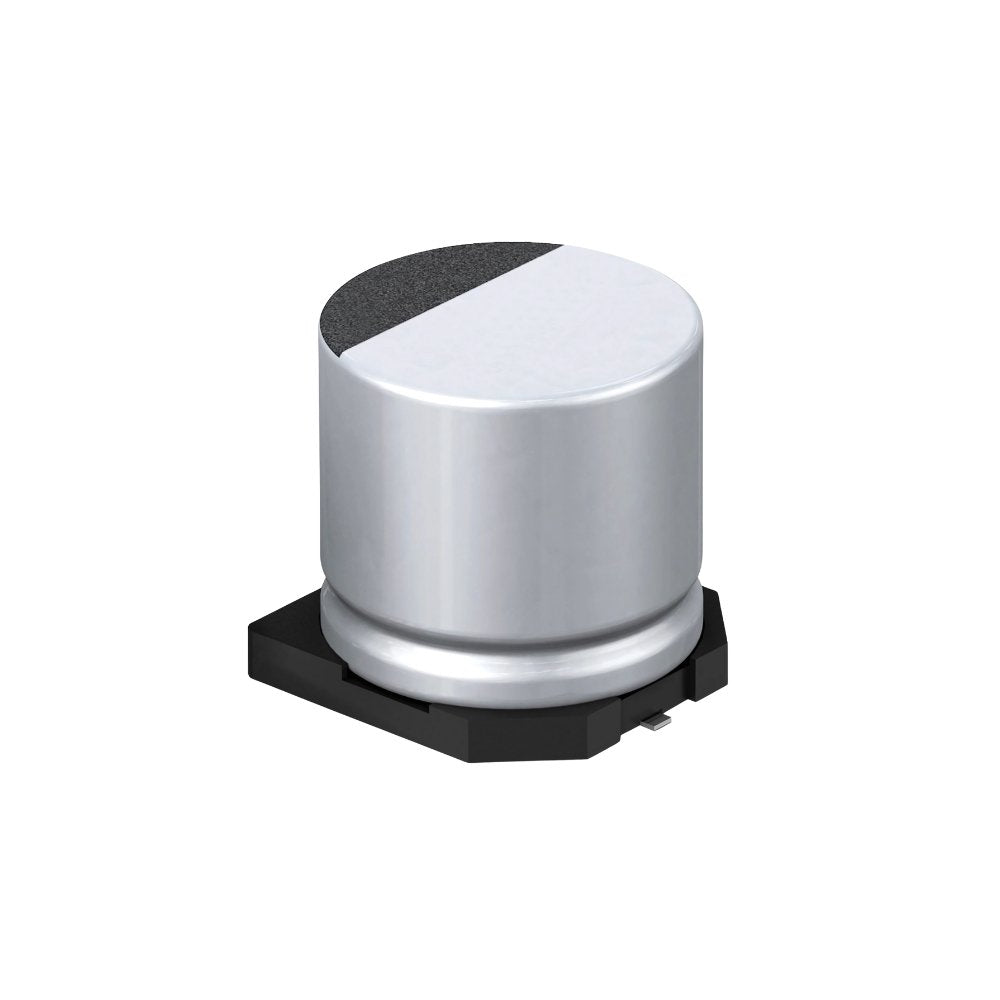

SMD Aluminium Electrolytic Capacitors are a type of polarized capacitor that use aluminium as the anode and an electrolyte as the cathode. These capacitors are designed for surface-mount applications, meaning they are intended to be soldered directly onto the surface of a printed circuit board (PCB) rather than inserted through holes.

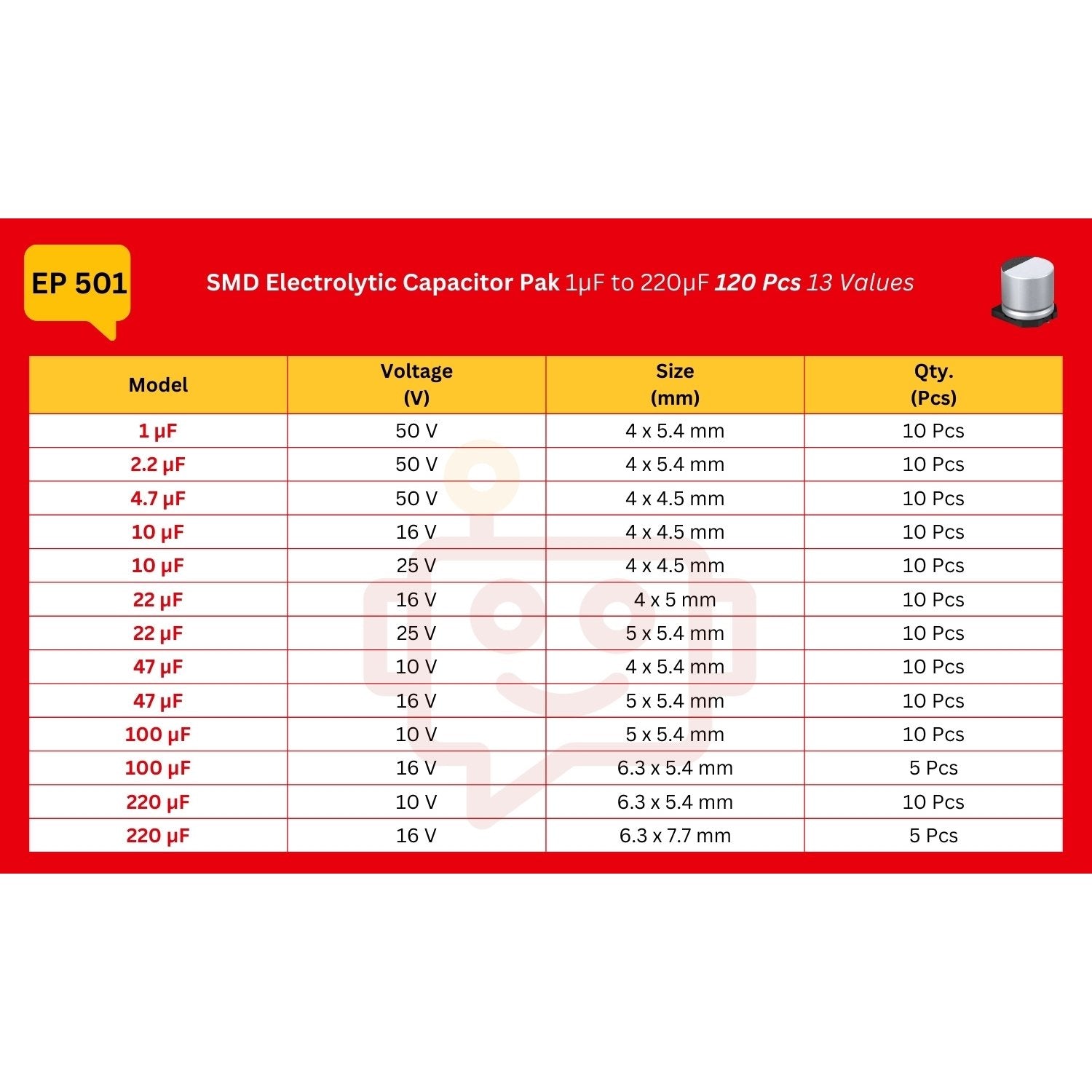

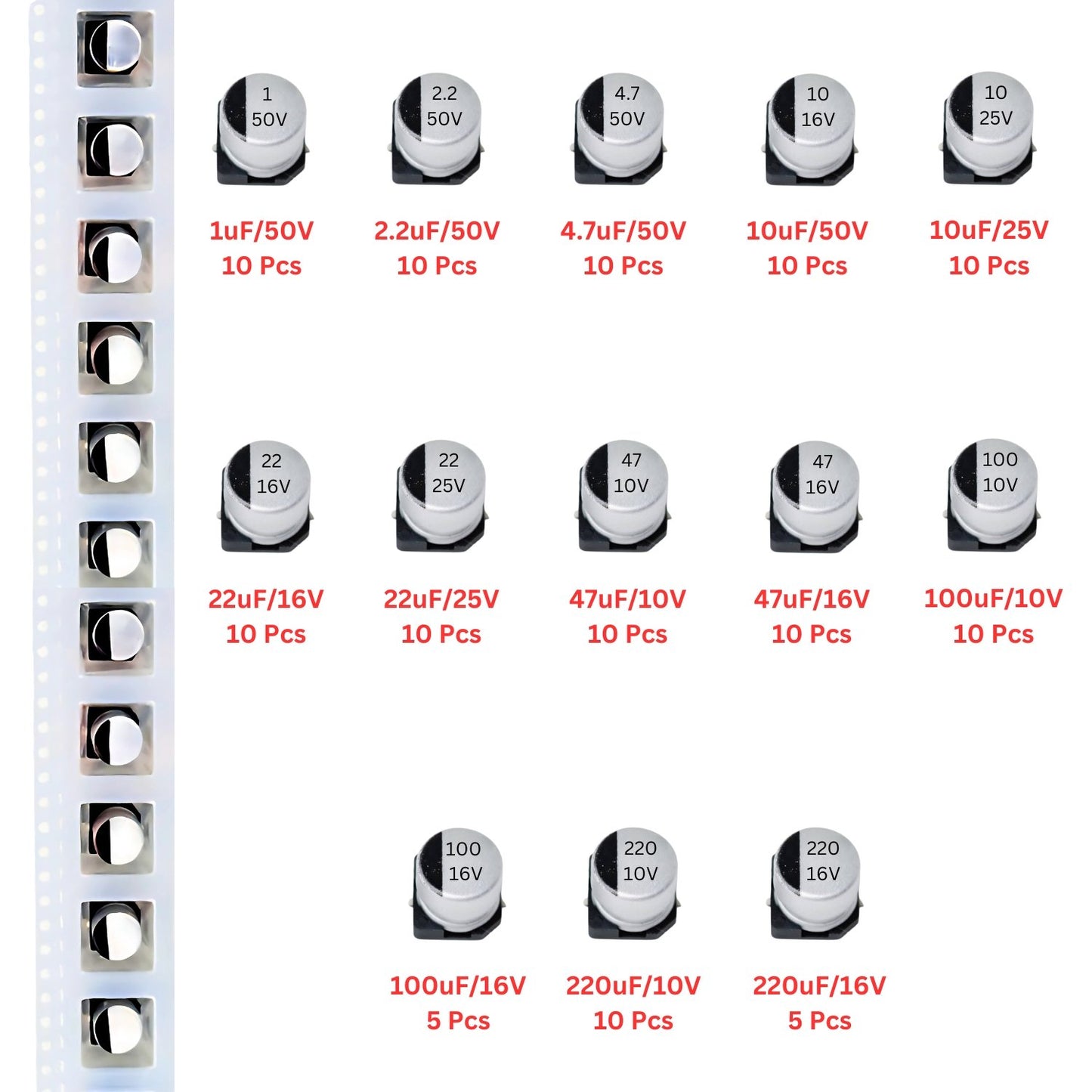

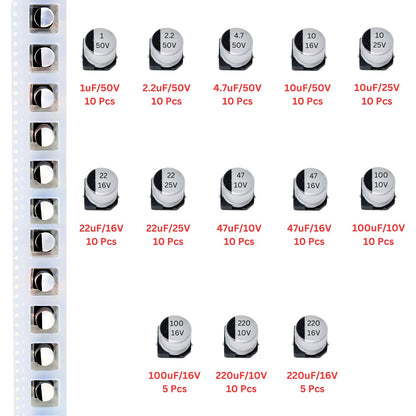

This SMD Electrolytic Capacitor Assortment includes 120 capacitors in 13 different values, providing a comprehensive selection for various electronic projects and repairs. These capacitors are compact, high-performance, and suitable for applications requiring low ESR and high ripple current handling.
Electrolytic Cap Symbol:
Electrolytic Cap Structure:
Electrolytic Cap Part Code:
Features:
- Compact size
- Wide capacitance range
- High voltage ratings
- Low ESR
- High ripple current handling
- Long lifespan
- Stable performance
- Automated PCB assembly compatible
- Ideal for filtering & decoupling
Applications:
- Power Supply Filtering: Smooths voltage fluctuations in power circuits
- Voltage Regulation: Stabilizes voltage in regulator circuits
- DC-DC Converters: Ensures efficient energy transfer in switching circuits
- Signal Coupling & Decoupling: Blocks DC components while allowing AC signals
- Embedded Systems & IoT Devices: Used in compact, low-power electronic devices
- Consumer Electronics Repair: Replaces faulty capacitors in electronic gadgets
- Automotive Electronics: Supports power management in vehicle control systems
- Industrial Equipment: Used in control circuits and power electronics
- Audio & RF Circuits: Reduces noise and improves signal quality
- LED Drivers & Lighting Systems: Regulates power for stable LED operation
