General purpose diodes use a basic P-N junction construction and are designed for moderate switching speed applications. Fast recovery diodes utilize additional epitaxial layers to reduce reverse recovery time, making them ideal for fast switching applications like power supplies. Schottky diodes combine a metal and semiconductor junction, offering very fast switching speeds and lower forward voltage drops for high-speed rectification and RF applications

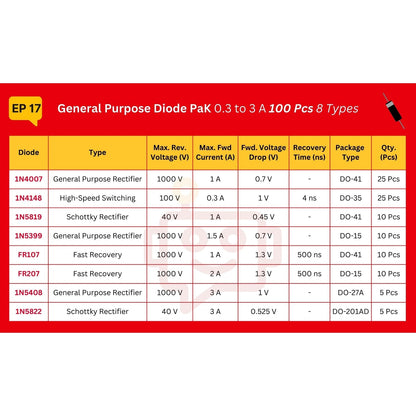

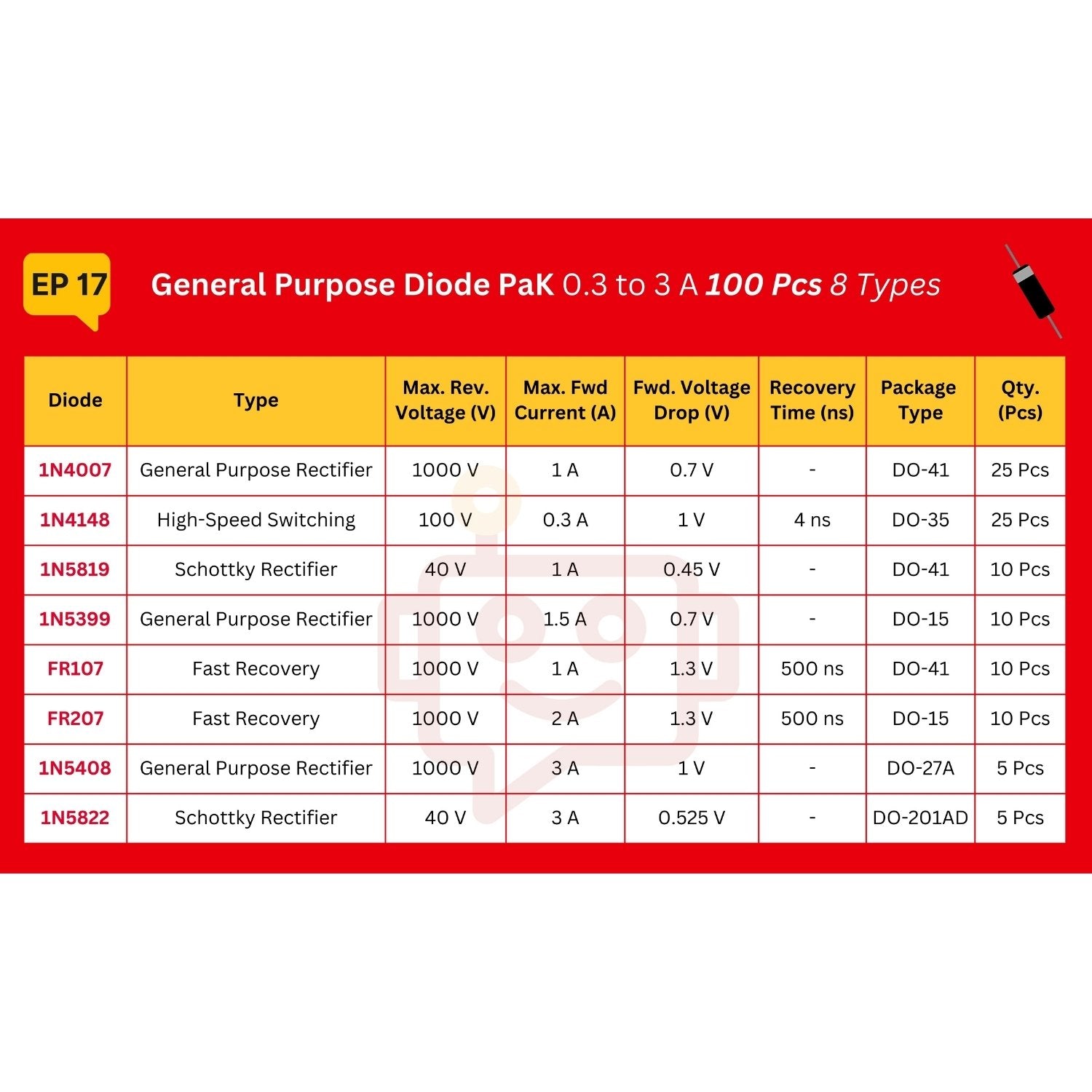

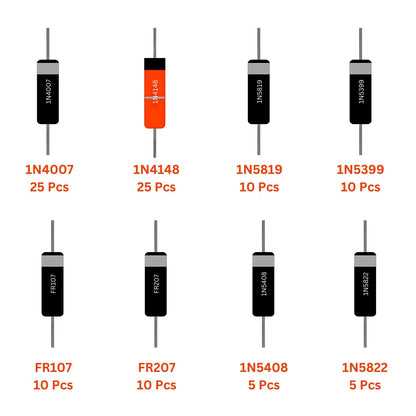

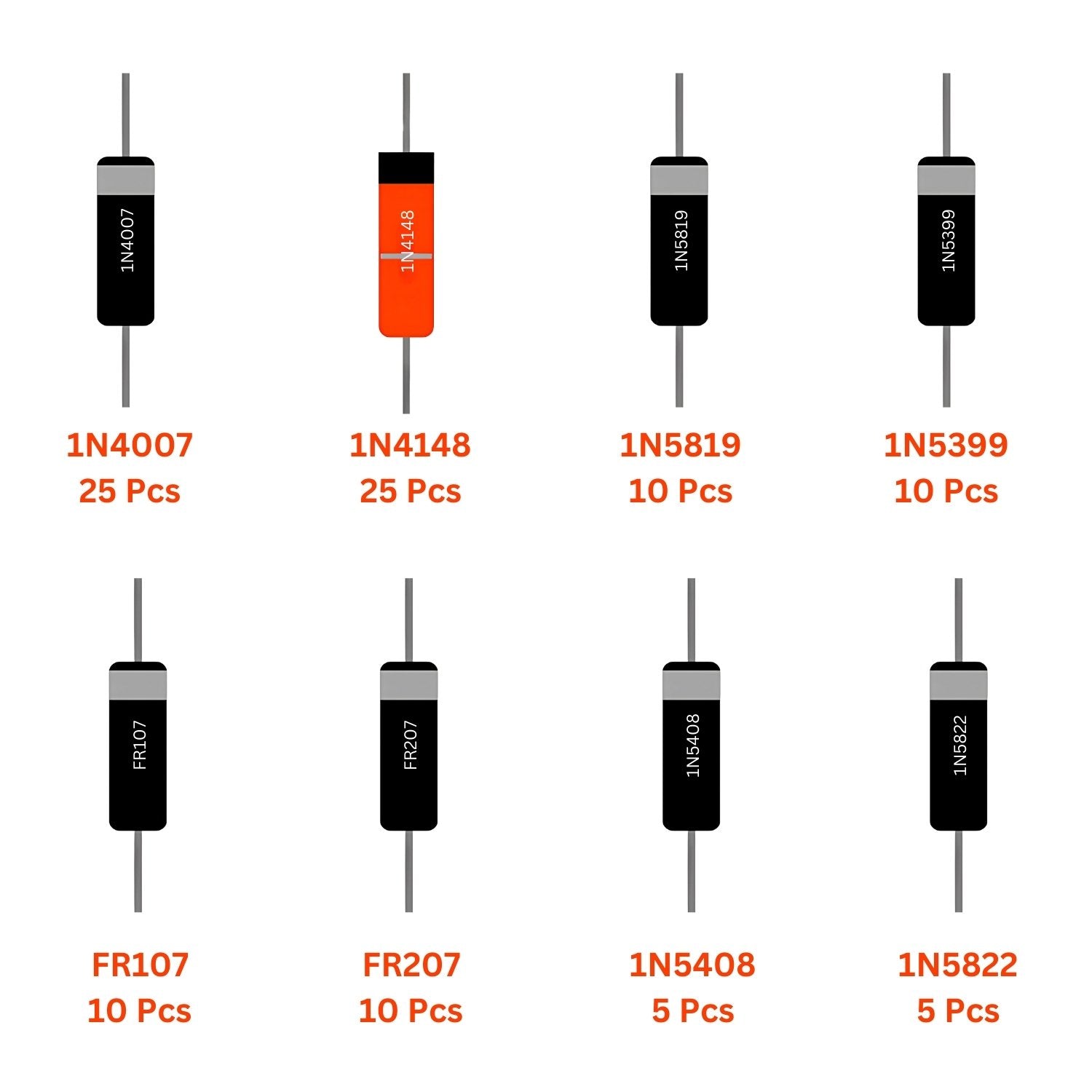

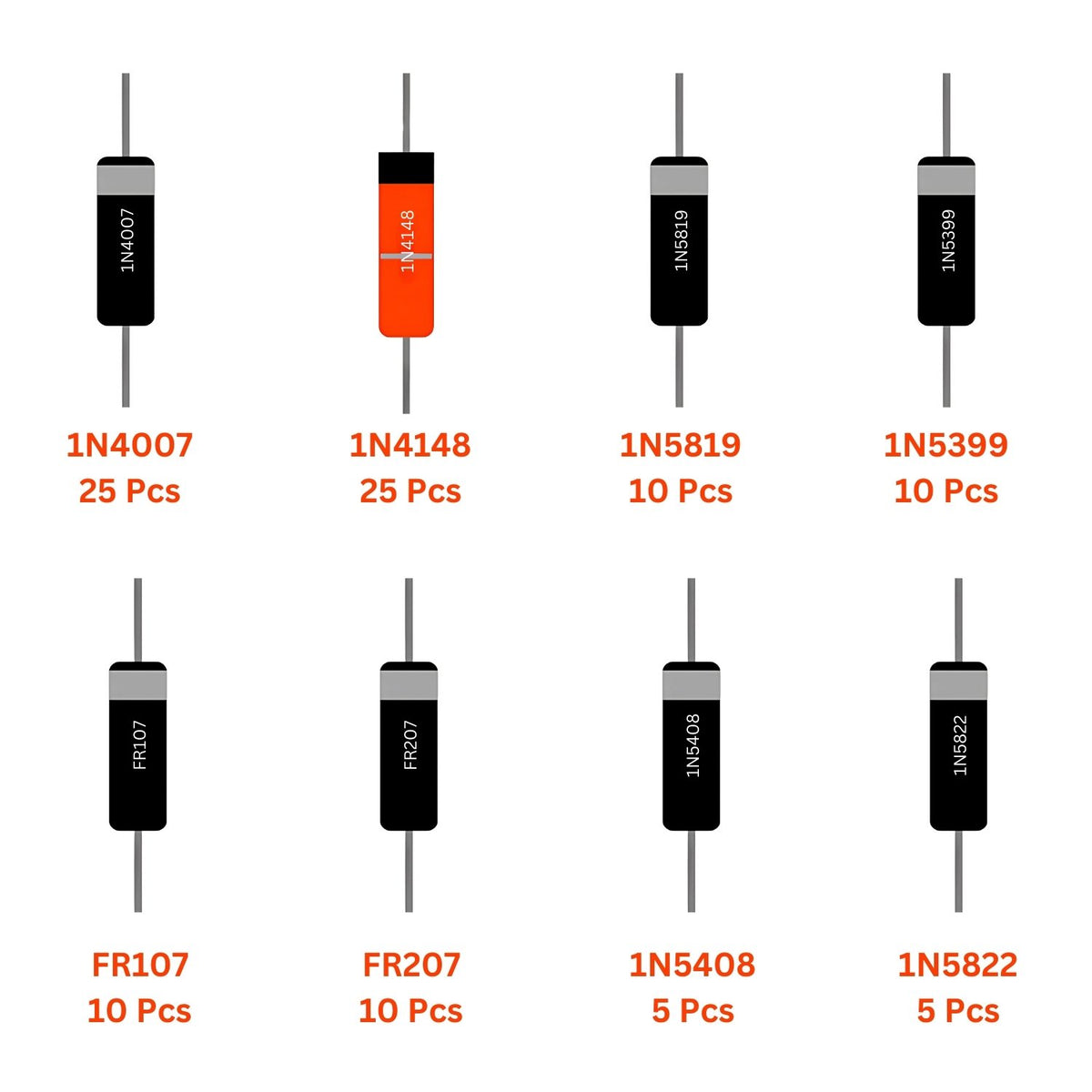

General-purpose diodes are available in various types, such as rectifier diodes (e.g., 1N4007, 1N5399) for AC-to-DC conversion, Schottky diodes (e.g., 1N5819, 1N5822) for fast switching and low voltage drop, and fast recovery diodes (e.g., FR107, FR207) for high-speed rectification

• Forward Bias Behavior: When the diode is forward-biased (positive voltage on the anode), it conducts current after reaching a threshold voltage (typically 0.7V for silicon diodes), and current increases rapidly beyond this point.
• Reverse Bias Behavior: In reverse bias (negative voltage on the anode), the diode blocks current, with only a small leakage current until the reverse breakdown voltage is reached, beyond which it may conduct in the reverse direction.
• Voltage-Current Relationship: The graph shows a sharp increase in current after the threshold voltage in forward bias, while in reverse bias, the current remains near zero until the breakdown voltage is exceeded.

Features:

• Affordable
• Provides consistent performance
• Simple integration into designs
• Handles moderate current and voltage
• Works across a wide temperature range
• Quick recovery time for fast switching
• Effectively converts AC to DC

Applications:

• Rectifying AC to DC: Converts alternating current (AC) to direct current (DC) in power supplies
• Signal Clipping: Limits the amplitude of signals in audio and video circuits to prevent distortion
• Voltage Regulation: Maintains a stable output voltage in power systems by preventing voltage fluctuations
• Protection Against Voltage Spikes: Safeguards sensitive electronics from high-voltage surges or spikes
• Demodulation: Extracts audio or information signals from modulated carrier waves in radio frequency circuits
• Surge Protection: Limits high-voltage surges to protect other components in electronic devices
• Current Direction Control: Ensures current flows in a specific direction in DC circuits, allowing controlled power distribution
• Noise Reduction: Reduces electrical noise and interference in electronic devices, improving signal clarity
• Frequency Conversion: Changes the frequency of a signal in communication systems for various applications like radio or audio processing
