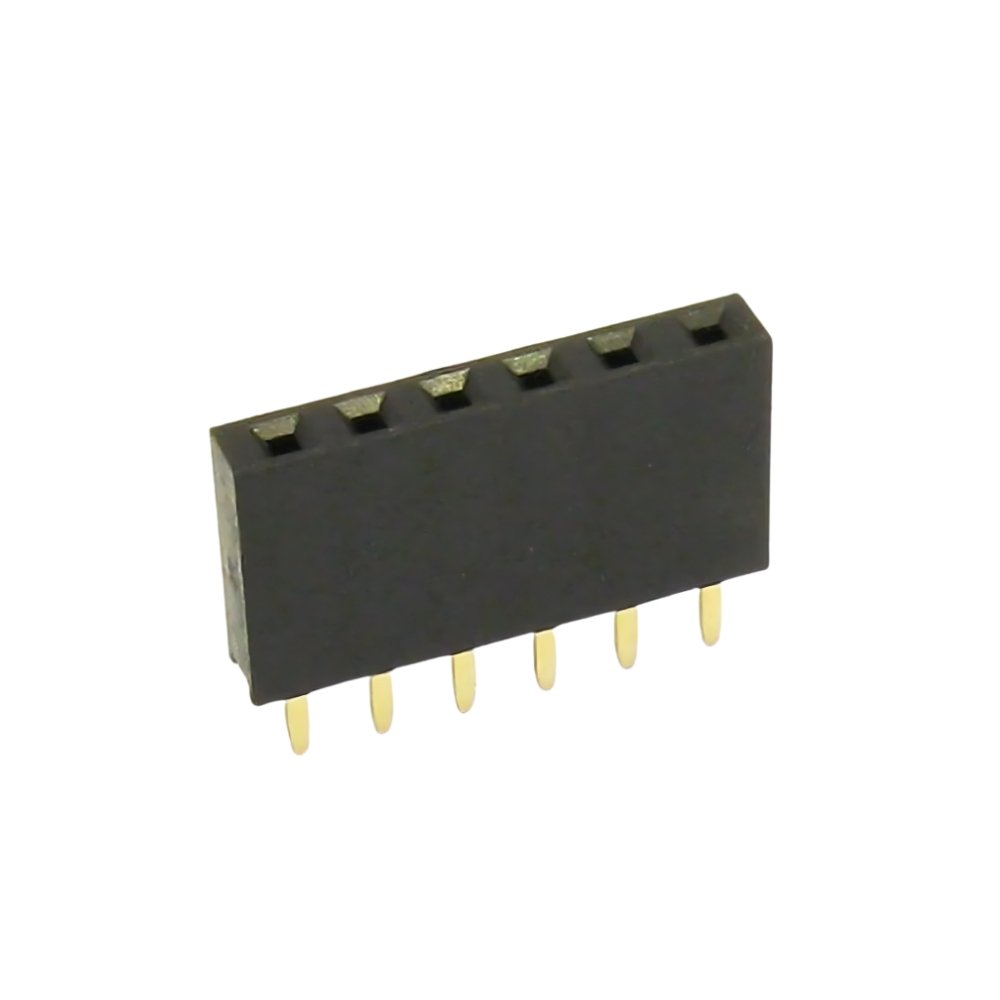

Elepak Female Header Single Row 2.54mm Pak 4 to 20 Pin 55 Pcs 7 Types
Elepak Female Header Single Row 2.54mm Pak 4 to 20 Pin 55 Pcs 7 Types
Regular price
Rs. 420.00
Regular price
Sale price
Rs. 420.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

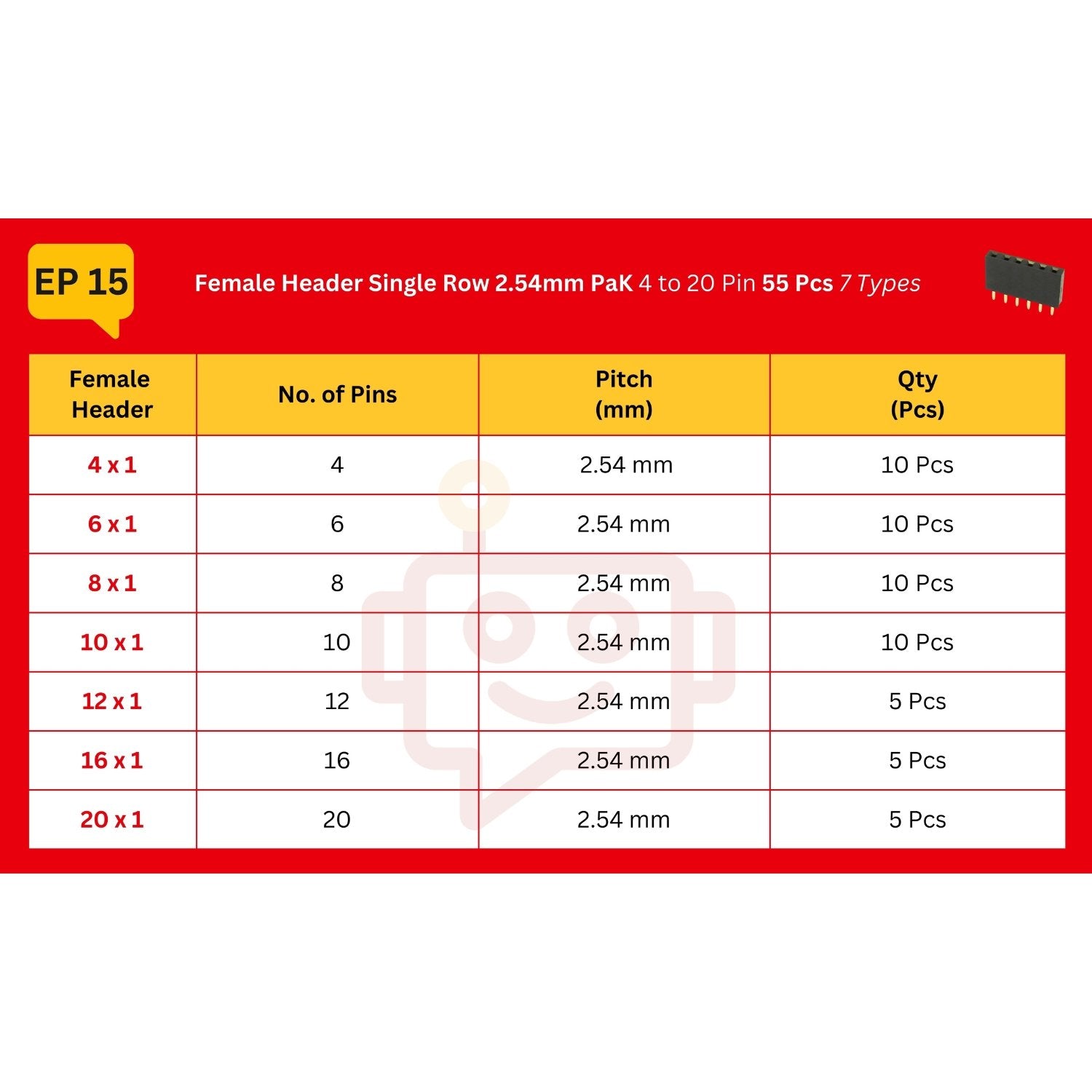

Package Includes:

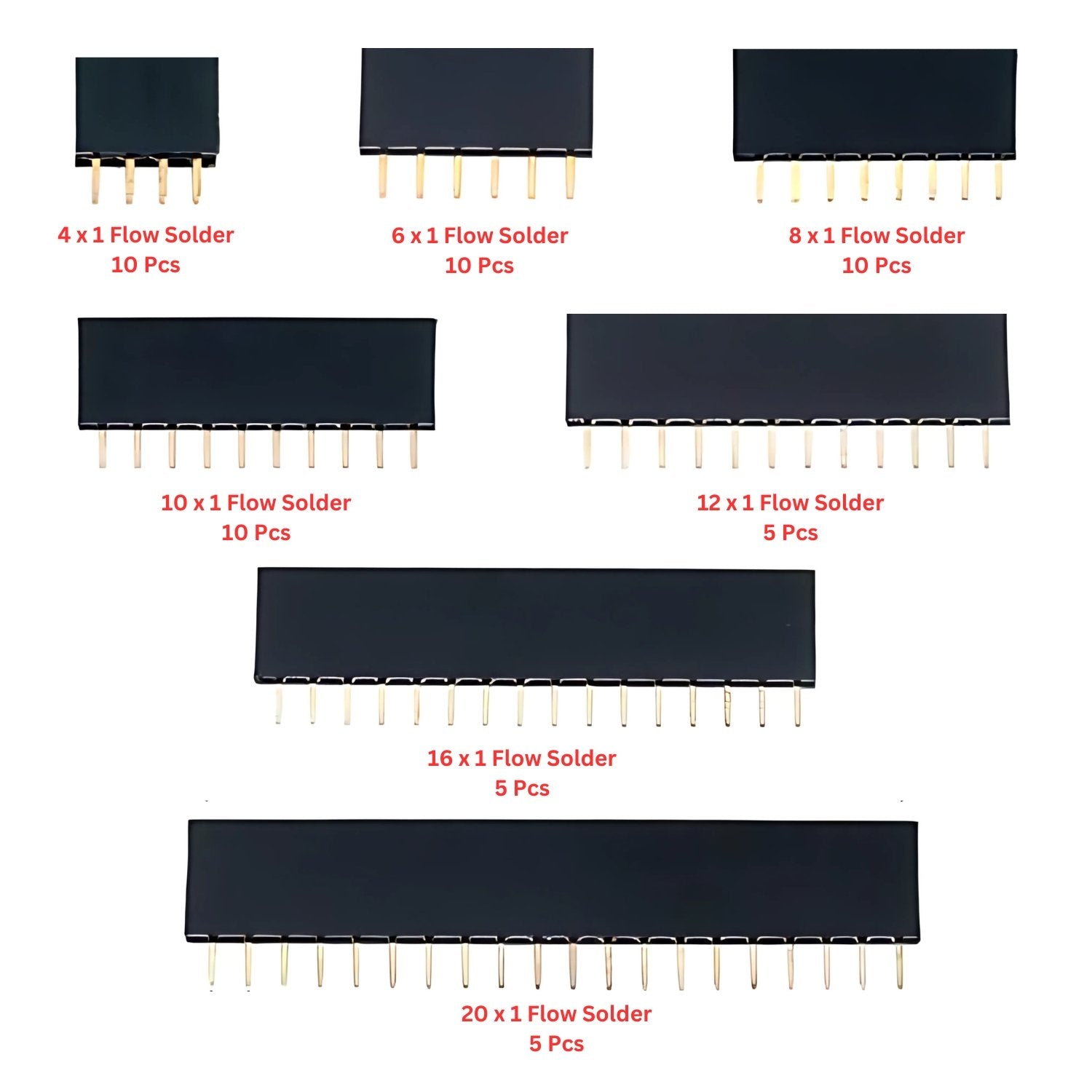

55 Female Headers 2.54 mm 7 Types
- 4x1 Flow Solder – 10 Pcs
- 6x1 Flow Solder – 10 Pcs
- 8x1 Flow Solder – 10 Pcs
- 10x1 Flow Solder – 10 Pcs
- 12x1 Flow Solder – 5 Pcs
- 16x1 Flow Solder – 5 Pcs
- 20x1 Flow Solder – 5 Pcs
Technical Specifications:
- Type: Through Hole
- Model: Single Row Flow Solder
- Header Pin Type: Female
- Connector: Header Strip
- Pin Count: 4 – 20 Pin
- Lead Spacing: 2.5 mm
- Current Rating: Upto 3 A
- Voltage Rating: 250 V AC/DC
- Pak Weight: 200 gm
- Pak Dimensions: 90 x 60 x 24 mm
Description
Flow Solder Single Row connectors with a 2.54mm pitch are commonly used in PCB (Printed Circuit Board) assemblies for reliable electrical connections. These connectors are designed for wave soldering (also known as flow soldering), a process where the PCB is passed over a wave of molten solder to create secure joints.
Connector Symbol:
Flow Solder Structure:
Flow Solder Pin Insertion:
Features:
- Strong & Reliable Solder Joints
- Efficient for Mass Production
- Consistent & Uniform Connections
- Reduces Manual Soldering Effort
- Cost-Effective for Large-Scale Manufacturing
Applications:
- PCB Assembly - Efficiently solders components in mass production
- Prototyping and Development - Quick assembly for testing and design validation
- Consumer Electronics - Reliable, cost-effective soldering for devices like smartphones and TVs
- Automotive Electronics - Durable connections for critical automotive systems
- Medical Devices - Precise soldering for high-safety, performance-required devices
