E18 D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm NPN NO Photoelectric Switch
E18 D80NK Adjustable Infrared Proximity Sensor Switch 3-80cm NPN NO Photoelectric Switch
Couldn't load pickup availability
- Sensing range: 3 – 80cm.
- Input voltage: 5 VDC.
- Current Consumption: 100mA.
- Digital Output.
- Cable length: 115 cm.
- Diffuse reflective type
- Digital output
- Adjustable detection distance
- NPN NO
The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.
The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.
The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.
Connection

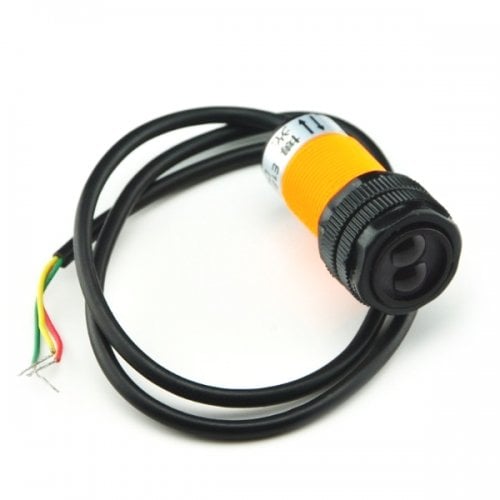

Red wire: +5V
Green wire: GND
Yellow wire: Digital output
OR

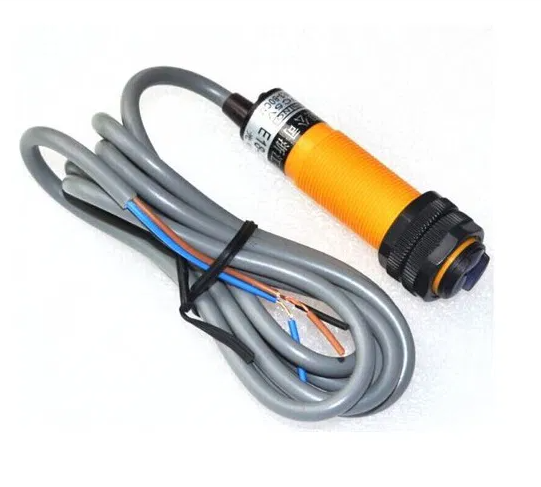

Brown wire: +5V
Blue wire: GND
Black wire: Digital output.
Features :
- Diffuse reflective type.
- Digital output.
- Adjustable detection distance.
- Low consumption.
- Compact size.
