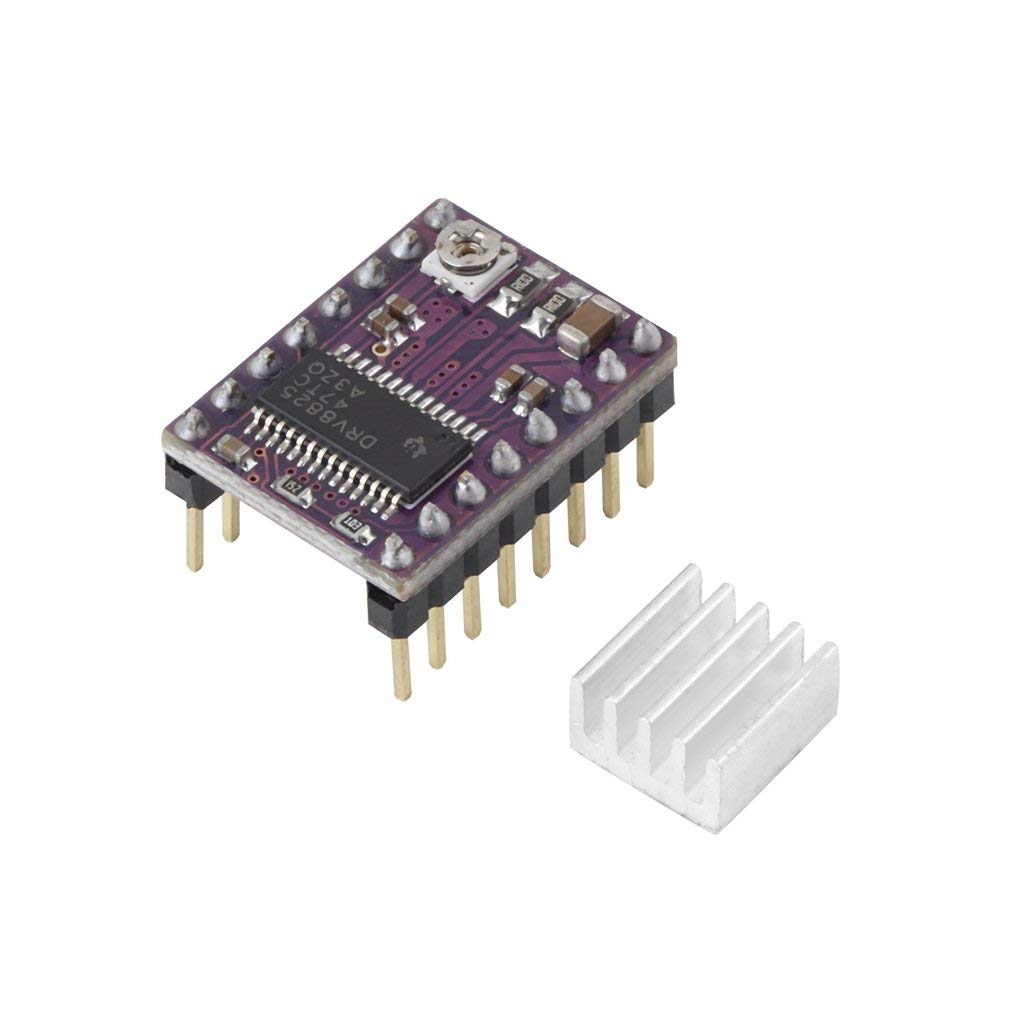

DRV8825 Stepper Motor Driver with Aluminum Heat Shrink for 3D printer

Rs. 280.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

Simple step and direction control interface Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step Can interface directly with 3.3 V and 5 V systems
Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout Short-to-ground and shorted-load protection 4-layer, 2 oz copper PCB for improved heat dissipation


The drv8825 stepper motor driver carrier is a breakout board for ti’s drv8825 micro stepping bipolar stepper motor driver. The drv8825 features adjustable current limiting, overcurrent and over temperature protection and six micro step resolutions (down to 1 or 32step). It operates from 8.2 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). This product is a carrier board or breakout board for ti’s drv8825 stepper motor driver; we therefore recommend careful reading of the drv8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil (see the power dissipation considerations section below for more information). Here are some of the driver’s key features: simple step and direction control interface six different step resolutions: full step, half step, 1 or 4step, 1 or 8step, 1 or 16step and 1 or 32step adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to Achieve higher step rates intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay) 45 v maximum supply voltage built-in regulator (no external logic voltage supply needed) can interface directly with 3.3 V and 5 v systems over temperature thermal shutdown, overcurrent shutdown and under voltage lockout shorttoground and shorted load protection 4layer, 2 oz. copper piece for improved heat dissipation exposed solder able ground pad below the driver ic on the bottom of the piece this product ships with all surface mount components—including the drv8825 driver ic.

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Amazon Shipping, Ekart Logistics, Delhivery & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
