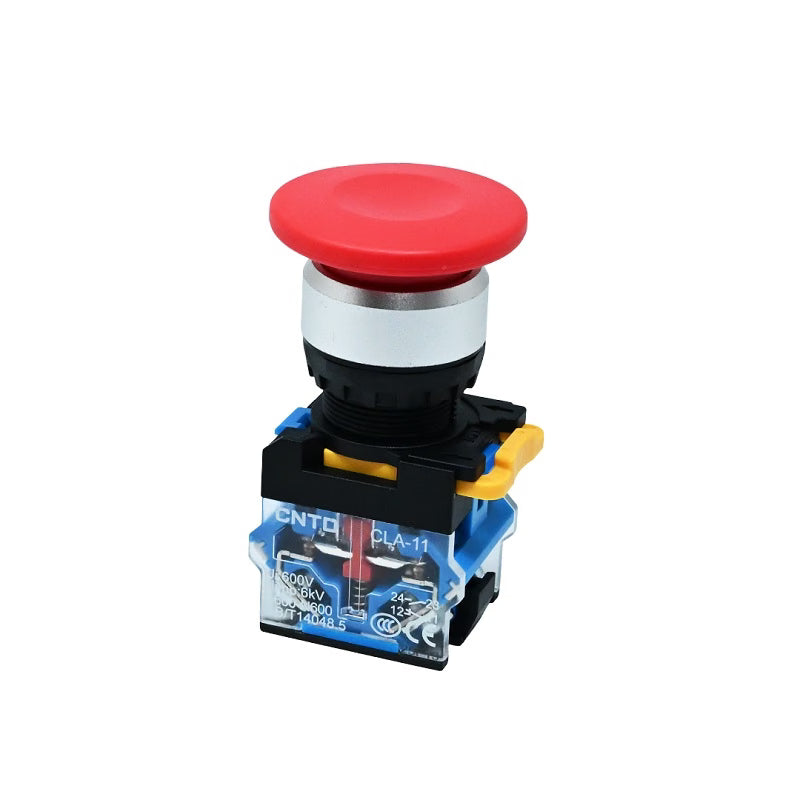

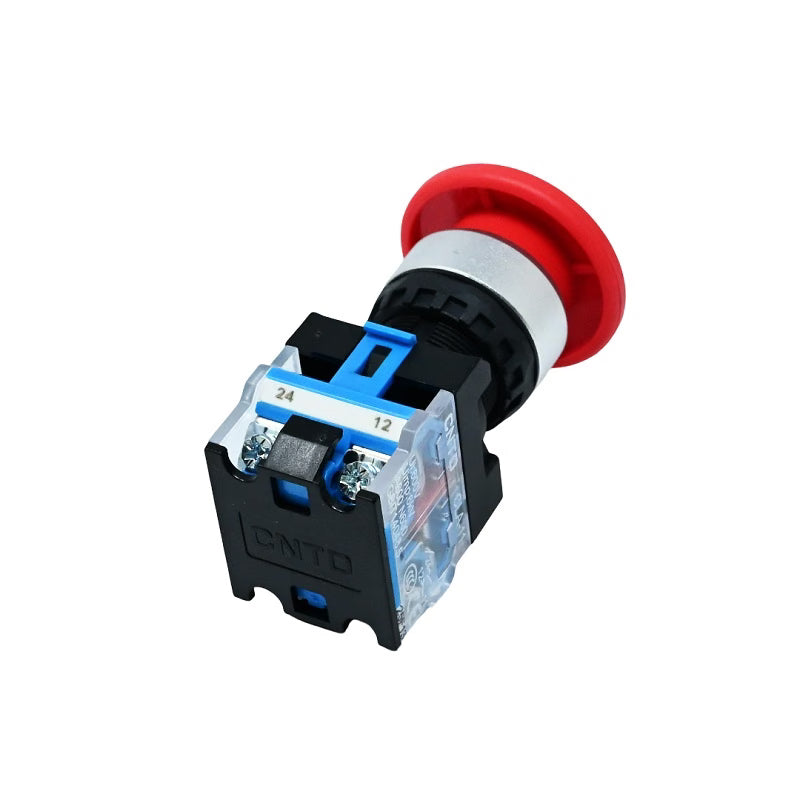

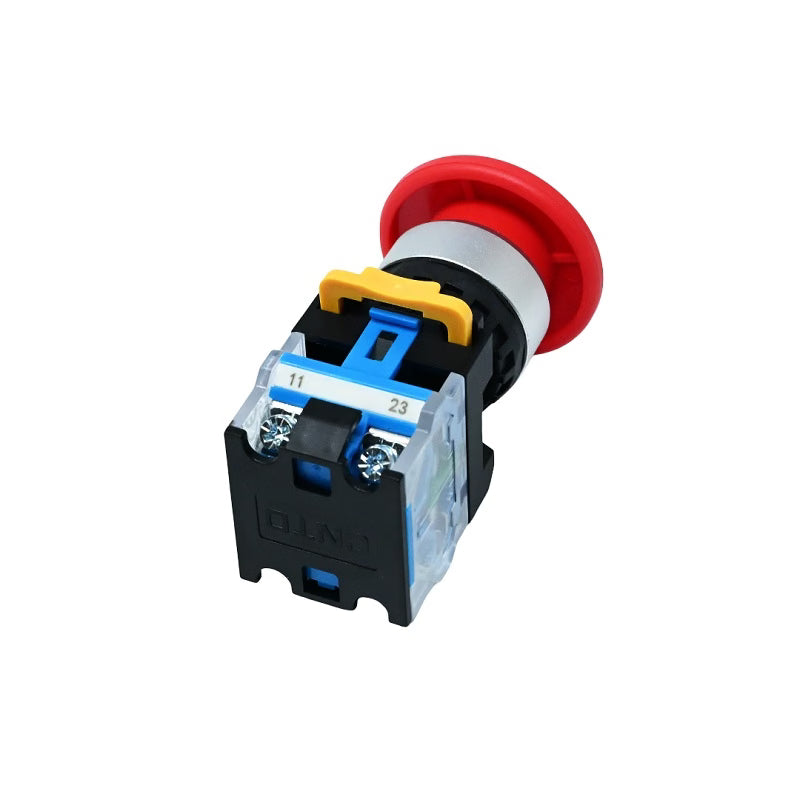

CNTD-CLA38-11M40L-R (CLA-11)-10A 220V AC/DC 40mm Mushroom Self Reset Pushbutton Switch (Red)

Specifications:

• Ambient temperature: -25℃ ~+75℃ (With no icing)
• Humidity: 45~85%RH
• Contact resistance: ≤50mΩ
• Insulation resistance: ≥100MΩ
• Power frequency withstand voltage: 1890VAC/50Hz/60s
• Vibration resistance: Amplitude: about 1.0mm/50Hz
• Impact resistance: > 10g
• Degree of protection: IP40
• Electrical life: ≥100,000 times
• LED type: Bidirectional LED
• Life: ≥40000h

Features:

• Red mushroom head for high visibility and easy operation.
• Self-resetting push action.
• Dual contacts: 1NO + 1NC for flexible circuit control.
• Standard panel mounting design.
• Rugged build for long mechanical and electrical life.
• Suitable for emergency stop and industrial control applications.

CNTD-CLA38-11M40L-R (CLA-11)-10A 220V AC/DC 40mm Mushroom Self Reset Pushbutton Switch (1NO1NC) (Red). This is a rugged industrial pushbutton switch featuring a large 40 mm red mushroom head for quick and easy operation, especially suited for emergency or critical stop functions. It has a self-resetting (momentary) action, meaning the button returns automatically to its original position once released. Designed with dual contacts (1NO + 1NC), it allows simultaneous make and break functions in control circuits. Rated at 10A for 220V AC/DC, the switch is reliable for a wide range of industrial applications. Its screw terminal connections ensure secure wiring, while the robust build provides long mechanical and electrical life. The bright red head offers excellent visibility, and the durable construction with proper insulation makes it suitable for harsh environments, standard 22 mm panel mounting, and repeated use in machinery control panels and operator stations.
