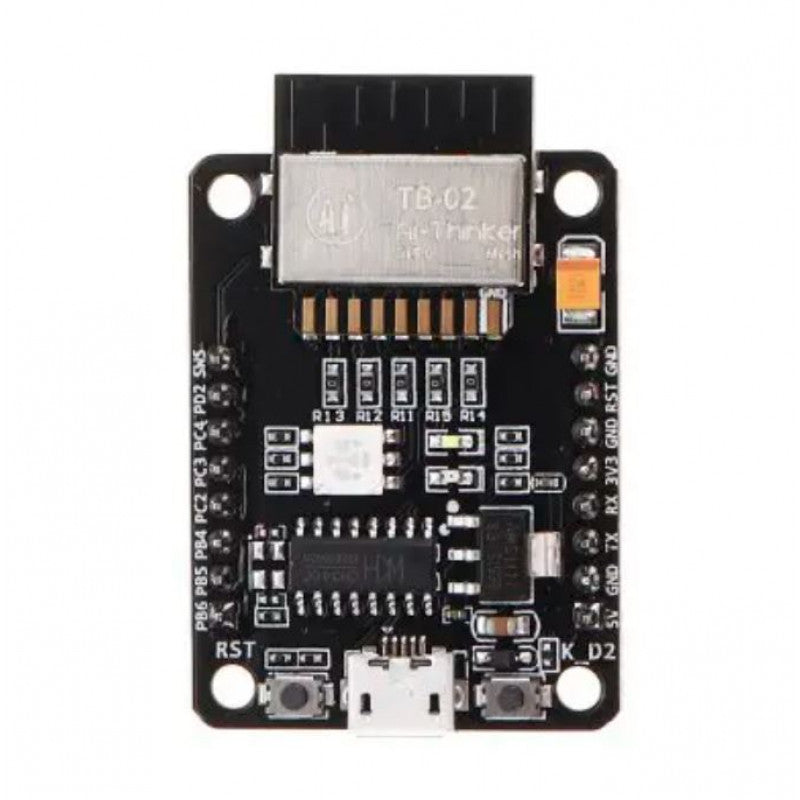

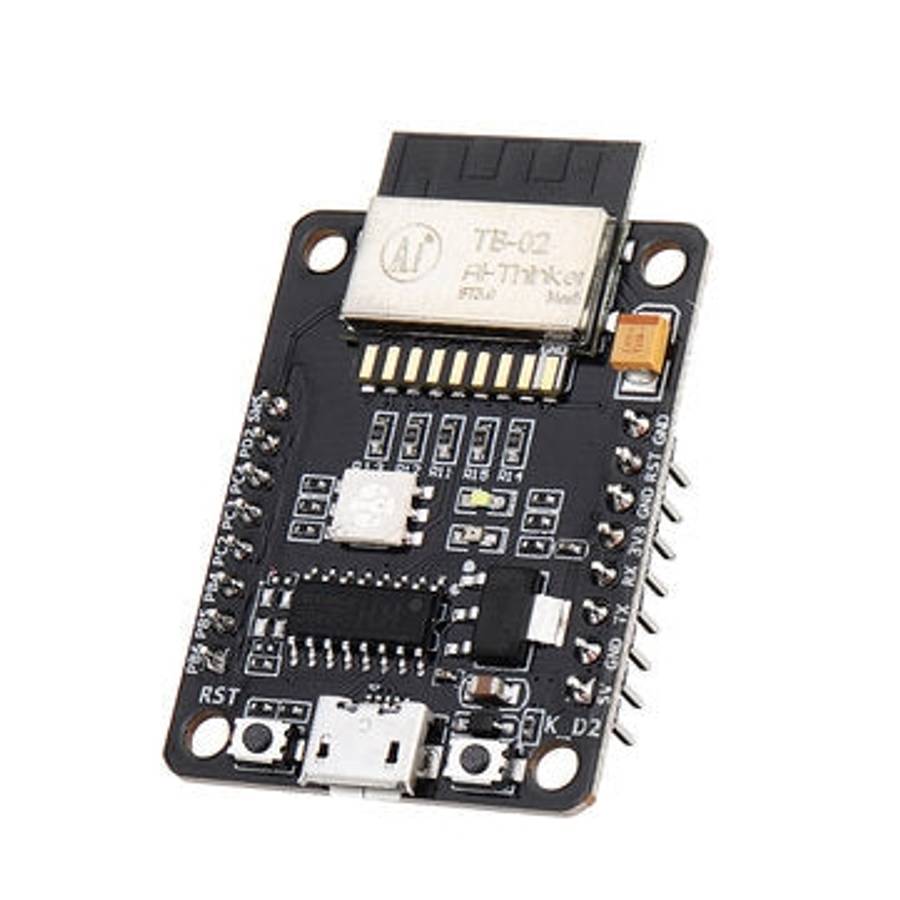

AI-Thinker TB-02 Development Board Bluetooth 5.0 BLE Mesh Controller
AI-Thinker TB-02 Development Board Bluetooth 5.0 BLE Mesh Controller
Regular price
Rs. 549.00
Regular price
Sale price
Rs. 549.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Specifications:-
- Model Name : TB-02
- Size : 18.0x18.0x2.8(±2)mm
- Package : DIP-18 or SMD-13
- Wireless Standard : Bluetooth V5.0
- Frequency Range : 2400 ~ 2483.5MHz
- Output Power : 10dBm
- Sensitivity : -93dBm
- Interface : GPIO/PWM/SPI/ADC
- Work Temperature : -20°C ~ 70 °C
- Store Temperature : -40°C~ 125°C, < 90%RH
- Voltage Range : Voltage 2.7V ~ 3.6V, Current: >=50mA
- Power Deep Sleep Mode: 0.8uA
- Sleep Mode: 1.8uA
- TX: 12.62mA
- Transmission Distance : 80m ~ 150m
Features:-
- Can be directly controlled by Tmall Elf without a gateway
- 1.6mm pitch pin vertical solder DIP18 or SMD-13 package
- 6 PWM outputs
- With on-board antenna, no need to design antenna
- Brightness (duty cycle) adjustment range 5% -100%
- Factory default 50% duty cycle for cool and warm colors
- PWM output power 1KHz
- With night light function
- With wall switch to switch color temperature function
