Features:

1. Model: Ai-M62-12F-Kit
2. Antenna: on-board PCB antenna
3. Frequency: 2400 ~ 2483.5MHz
4. Storage temperature: -40℃ ~ 125℃ , < 90%RH
5. DIP 30 package
6. Supports IEEE 802.11 b/g/n protocol
7. Wi Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
8. Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps
9. Bluetooth BLE 5.0, Bluetooth Mesh
10. Supports Station + BLE mode, Station + SoftAP + BLE mode
11. Supports 32 bit RISC CPU and 276KB RAM
12. Secure Startup. Images with ECC 256 signatures are supported
13. Supports real time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES 128 CTR mode
14. Supports AES 128, 192, and 256 bit encryption engines
15. Supports SHA 1/224/256
16. Real random number generator (TRNG)
17. The public key accelerator (PKA) supports large numbers of basic operations. The software provides application interfaces such as signature and verification
18. Supports SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO
19. Integrated Wi Fi MAC/BB/RF/PA/LNA/Bluetooth
20. Supports multiple sleep modes with a deep sleep current of 12μA
21. Quick Start of universal AT commands
22. Supports secondary development and integrates Windows and Linux development environments

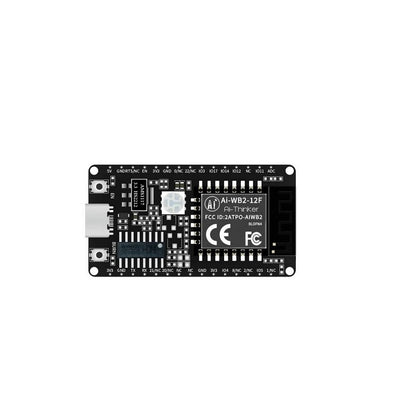

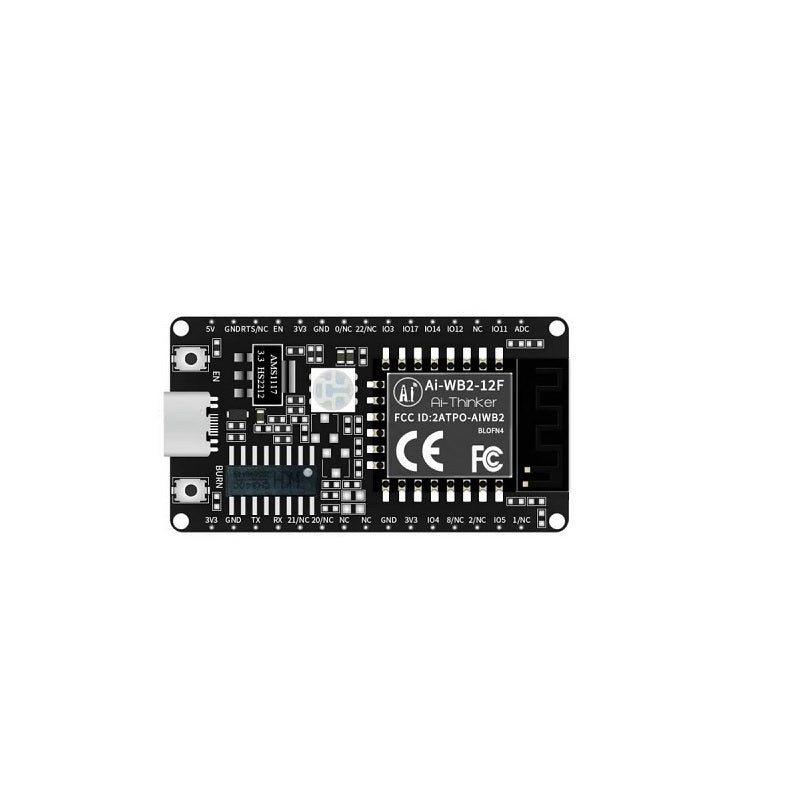

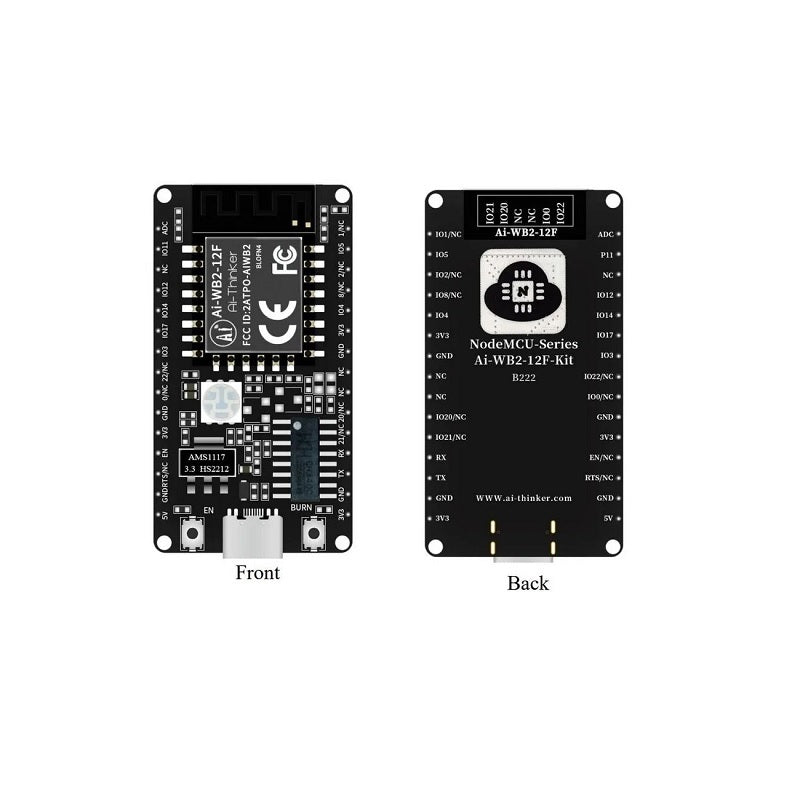

Ai WB2 12F Kit is a development board designed for Ai WB2 12F modules. Ai WB2 12F is a Wi-Fi & Bluetooth module. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low power consumption, 276KB RAM, and a wide range of peripheral interfaces, including SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.
