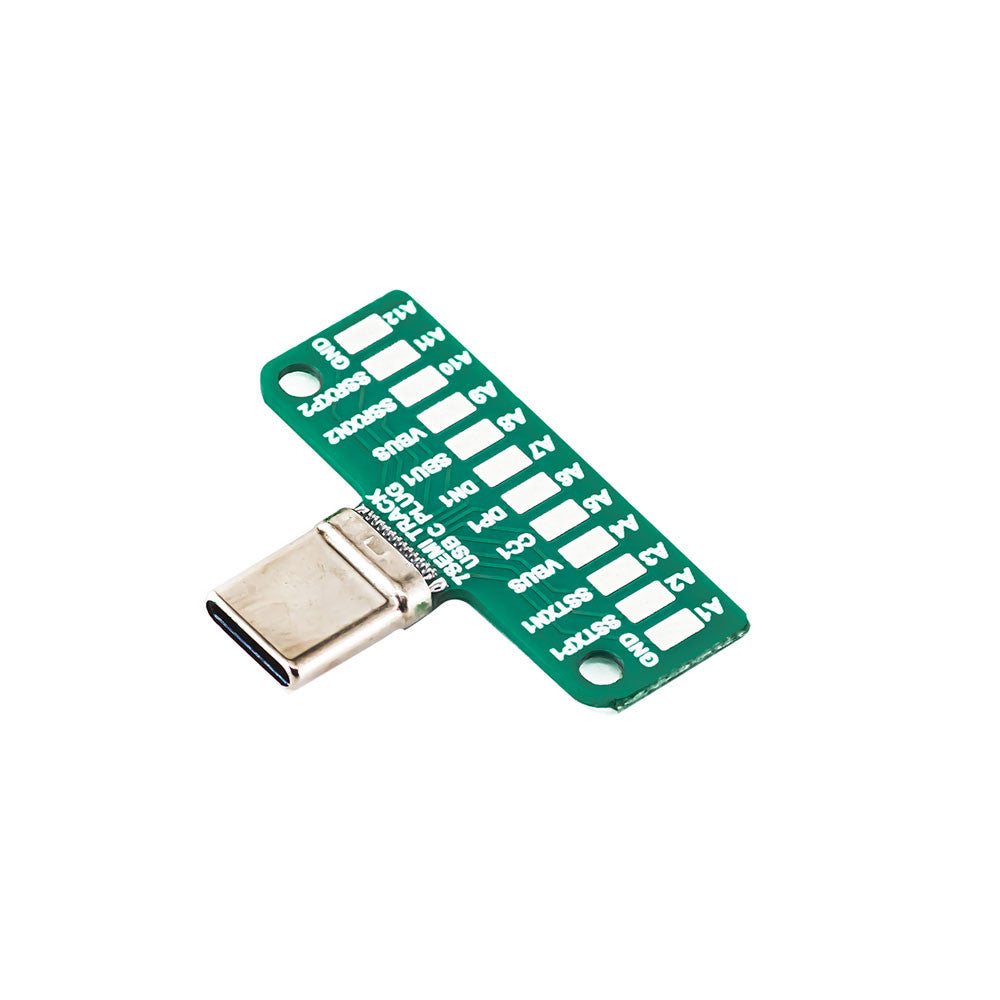

7Semi USB Type-C 3.1 Male Breakout Board – 24-Pin USB-C Connector for Prototyping and Embedded Applications
7Semi USB Type-C 3.1 Male Breakout Board – 24-Pin USB-C Connector for Prototyping and Embedded Applications
Couldn't load pickup availability
The 7Semi USB Type-C 3.1 Male Breakout Board simplifies the integration of USB-C connectivity into electronic projects and product designs. Featuring a USB Type-C 3.1 male connector with all 24 pins broken out to accessible pads, this compact board eliminates the challenges of soldering directly to fine-pitch USB-C connectors.
The straight connector orientation makes it ideal for applications where a direct plug-in connection is required without additional mounting hardware. Whether you're developing USB-powered devices, custom cables, embedded systems, test fixtures, or USB communication projects, this breakout board provides a convenient and reliable interface for rapid prototyping and product development.
Designed for engineers, makers, students, and hardware developers, the board offers easy access to USB-C power, data, configuration, and high-speed signal pins, enabling flexible implementation across a wide range of USB-C applications.
Features
- USB Type-C 3.1 male connector breakout board
- Breaks out all 24 USB-C connector pins
- Eliminates the need to solder directly to fine-pitch USB-C connectors
- Straight connector orientation for direct plug-in applications
- Compact design suitable for prototyping and embedded systems
- Easy access to power, ground, USB 2.0, USB 3.x, CC, and configuration pins
- Supports USB power and data applications
- Suitable for custom USB-C cable development
- Ideal for testing, debugging, and product prototyping
- Compatible with USB Type-C devices and hosts

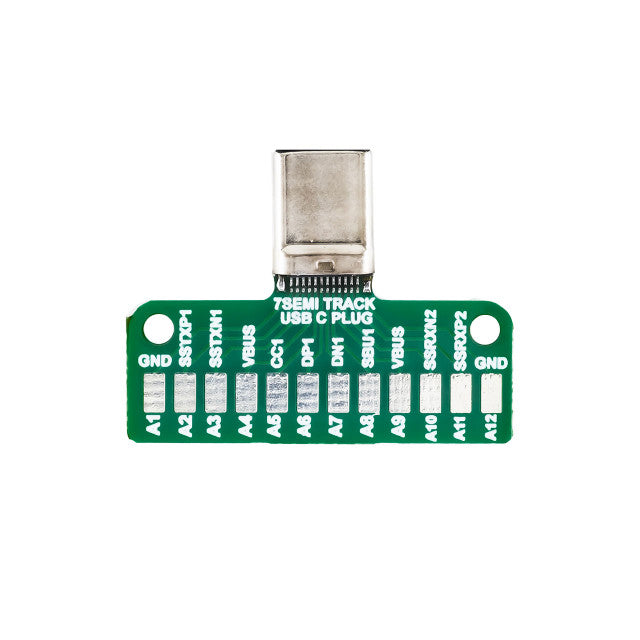

- Clearly labeled breakout pads for easy wiring
- Durable PCB construction for repeated use
