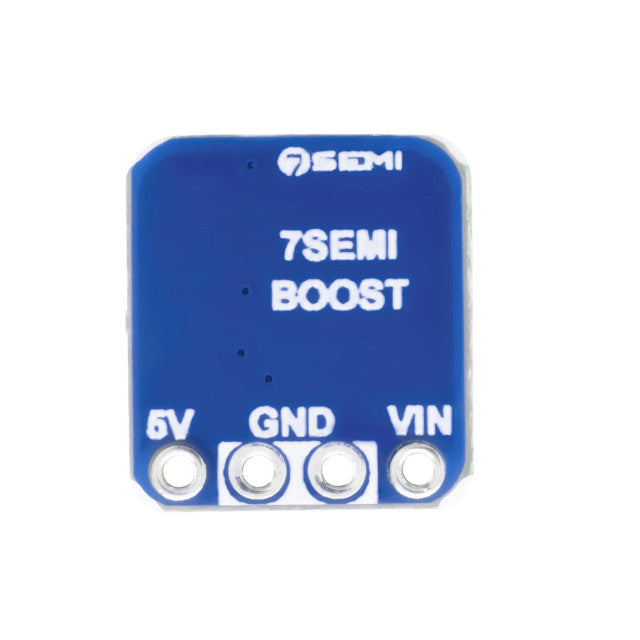

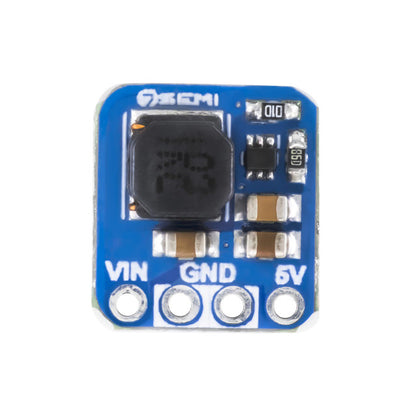

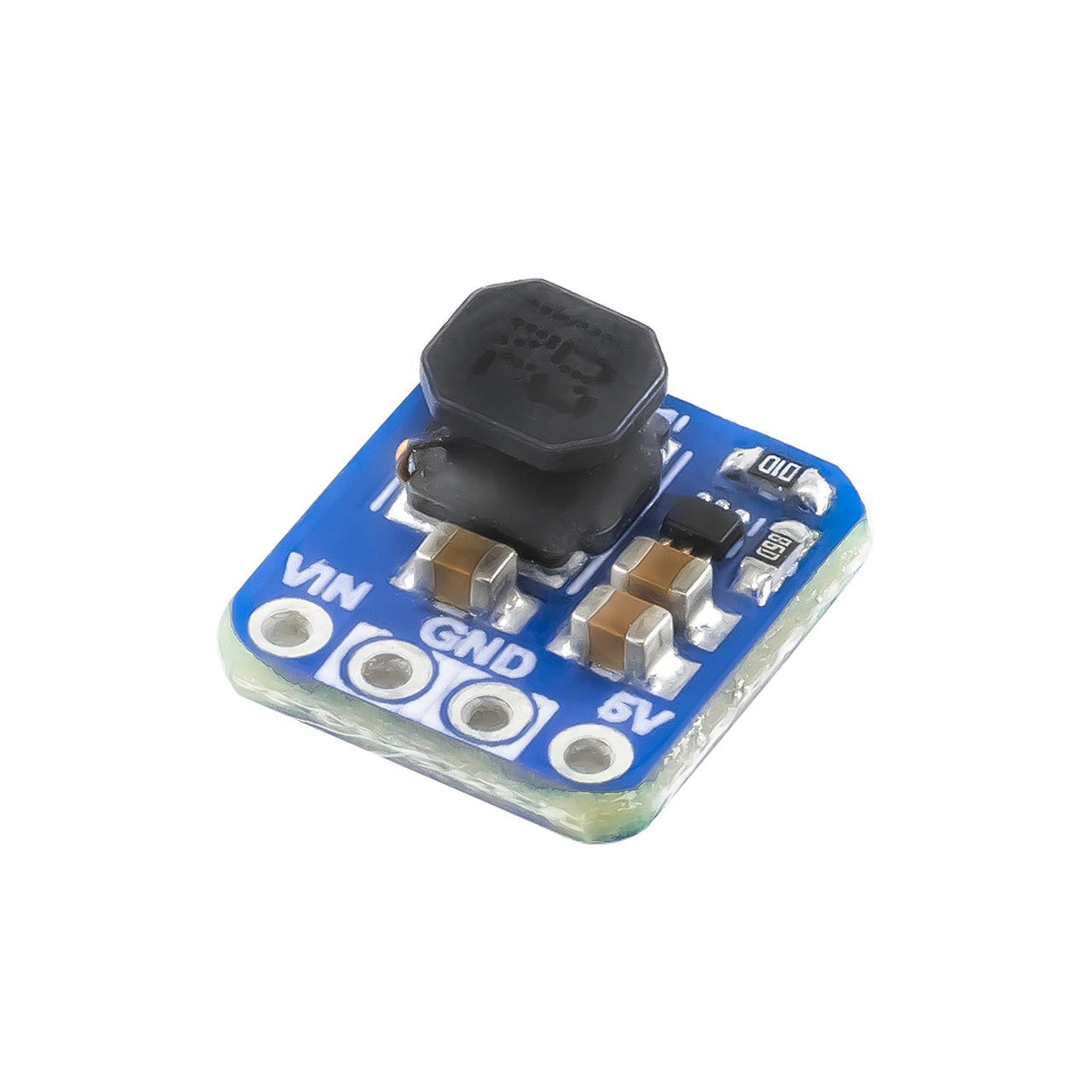

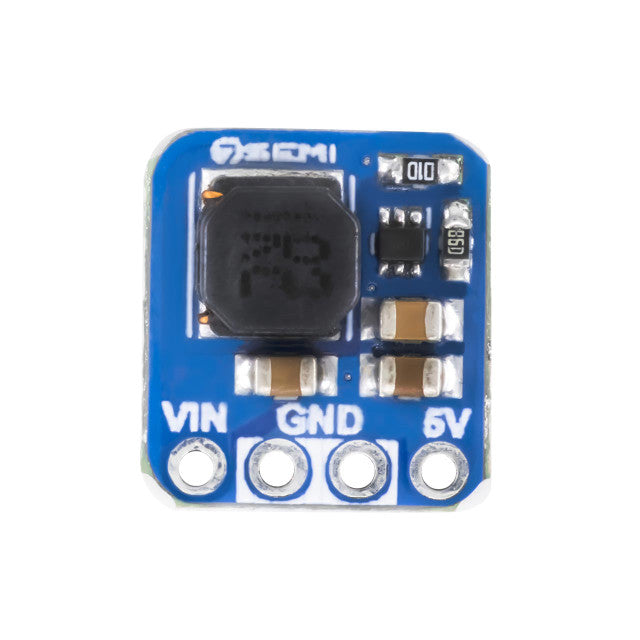

The 7Semi TPS61023 Boost Converter is a small and powerful module that increases low input voltage (1.5V to 3.3V) to a stable 5V output. It can deliver up to 3.7A current, making it suitable for devices that need strong and stable 5V power from low-voltage sources like batteries. The module works with high efficiency, so less power is wasted as heat. It also includes safety features to protect your circuit during operation. Its compact size and reliable performance make it ideal for portable devices, IoT projects, and battery-powered applications.

Specifications:

• Category of product : Synchronous boost converter
• Input Voltage : 1.2 TO 3.3V
• Output Voltage : 5V
• Output Current : 3.7A
• Switching frequncy : 1MHz
• Operational Temprature : –40°C to +70°C
• Efficiency : 94% at VIN 3.6V
• Dimension In mm : 12mm X 11mm X 5.36mm

Features:

• Boost Converter: Steps up low voltage to stable 5V output.

• Wide Input Range: Works from 1.5V to 3.3V input.

• High Output Current: Supports up to 3.7A output.

• High Efficiency: Up to 94% efficiency for better performance.

• Fixed 5V Output: Provides stable and consistent voltage.

• Smart Operation Modes: Adjusts automatically for light and heavy loads.

• Built-in Protection: Includes over-voltage, short-circuit, and thermal protection.

• Low Power Loss: Efficient design reduces heat and saves energy.

• Compact Size: Easy to use in small and portable projects.
