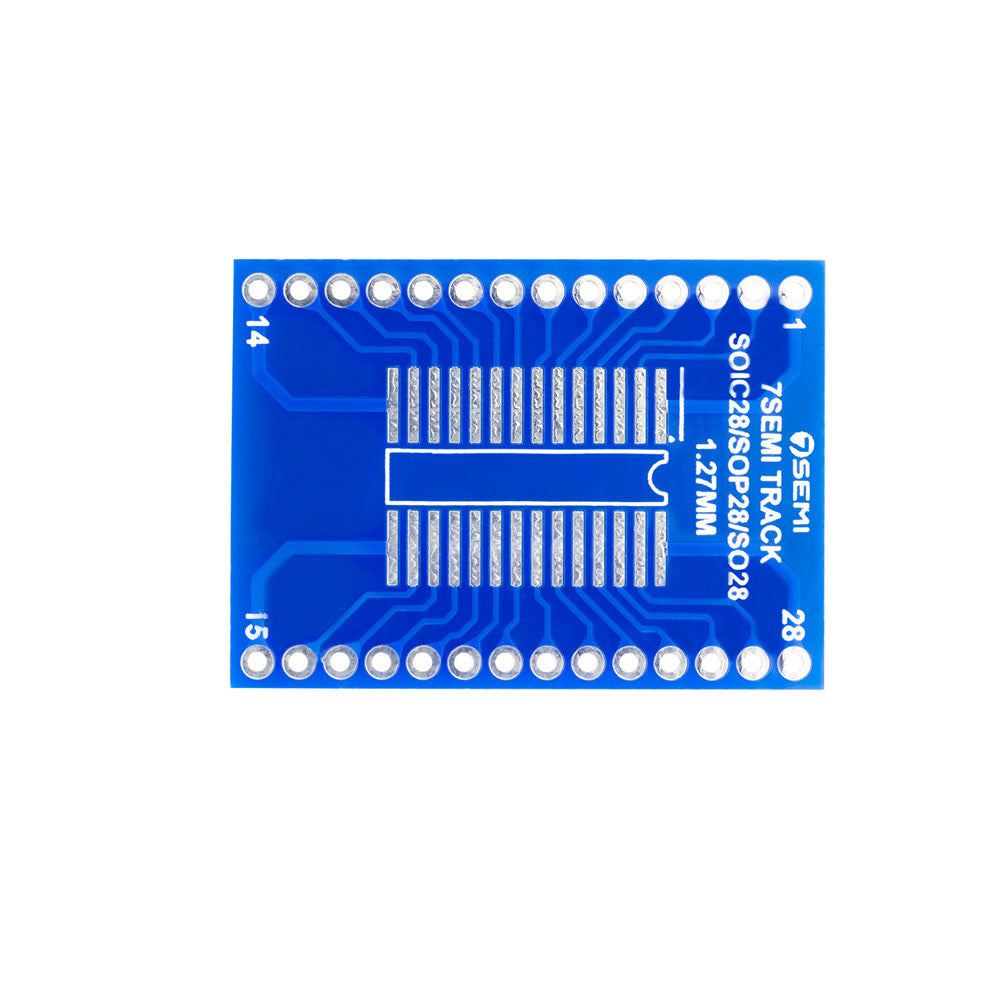

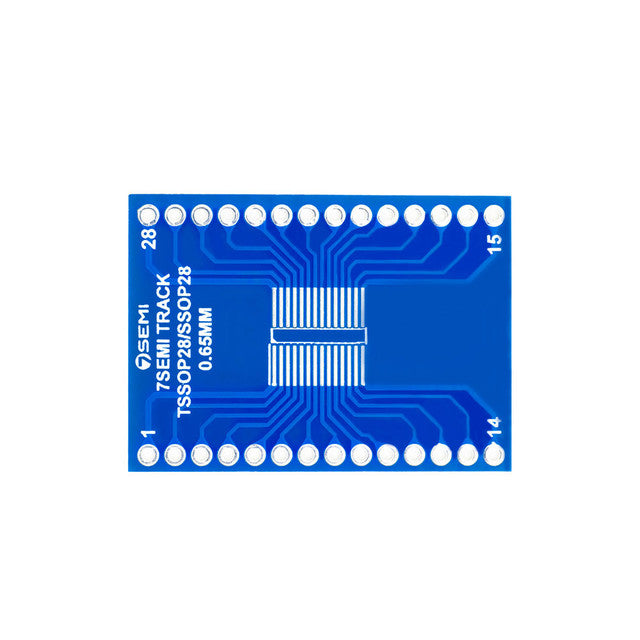

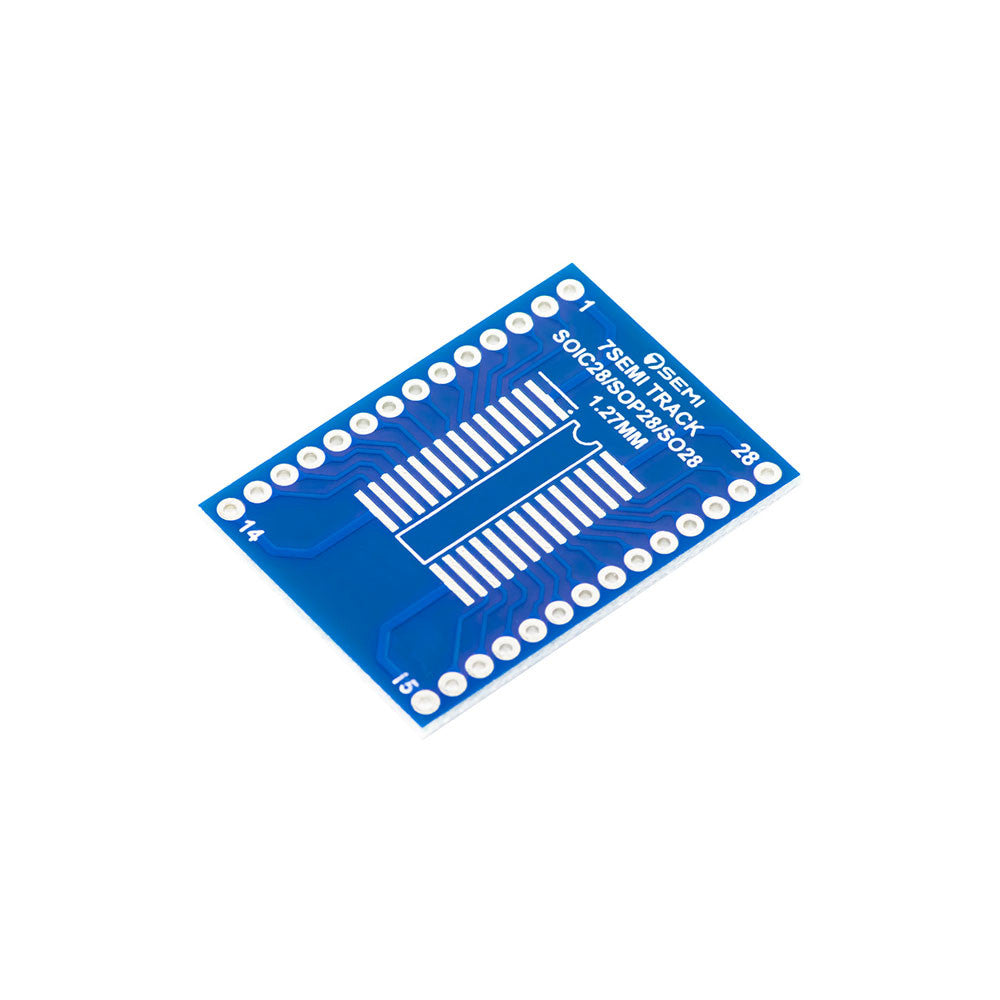

The Breakout PCB for 7Semi SOIC28/SOP28/SO28 TSSOP28/SSOP28 serves as a specialized adapter tailored for surface-mount device (SMD) packages. These commonly used and compact SMD packages, such as SOIC28, SOP28, SO28, TSSOP28 (1.27 mm pitch), and SSOP28 (0.65 mm pitch), can now seamlessly interface with a breadboard or other prototyping tools.

This innovative breakout PCB streamlines and expedites the prototyping process, providing engineers and hobbyists with an interface that transforms SMD packages into a more user-friendly DIP package compatible with standard prototyping tools. The breakout PCB is designed with pins brought out to the board's surface, connecting to two rows of 0.1" spaced holes. This thoughtful design facilitates effortless connectivity, allowing for swift testing and development of new circuit designs.

Its compatibility with breadboards ensures a seamless fit, and the pin spacing simplifies the identification of pin numbers, including Pin 1, making it straightforward to establish accurate connections for your projects. By simplifying the connection process between SMD packages and breadboards or other prototyping tools, this breakout board not only saves valuable time but also enhances overall prototyping efficiency.

Whether you're an engineer or a hobbyist, the 7Semi SOIC28/SOP28/SO28 TSSOP28/SSOP28 Breakout PCB stands as an indispensable tool for your prototyping needs. It effectively streamlines the complexities associated with working with SMD packages, offering a reliable interface that empowers you to concentrate on testing and refining your circuit designs with ease.

Specifications:

• Category of product : SMD to DIP Adapters
• Supply Voltage : As per mounted IC
• OPERATIONAL TEMPRATURE : -40C TO 80C
• Dimension in mm : L=37mm W=27mm H=1.57mm

• Pin Spacing is compatible with breadboard.
• Pin numbers and Pin 1 are easily identifiable.
• Pins are out with traces going to two rows of 0.1" spaced holes.
