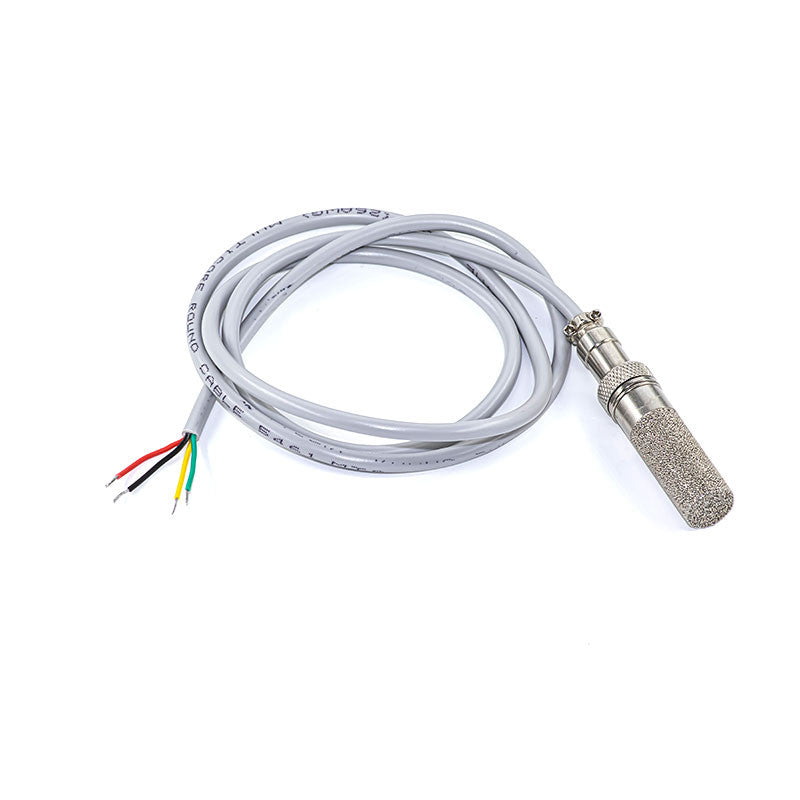

The 7Semi SHT20 Humidity and Temperature Sensor Probe is a high-performance sensing solution designed for environments where precision, stability, and durability are paramount. Equipped with advanced CMOSens technology, this sensor ensures highly accurate and stable humidity and temperature readings across a wide operating range from -40°C to 125°C. Its I2C digital interface supports seamless integration with microcontroller-based systems, allowing efficient data communication with minimal power consumption.

Encased in a stainless steel breathable shell, the metal probe is engineered to withstand high pressures (up to 150 bar), extreme temperatures, and corrosive conditions without compromising sensor functionality. With features like multi-point factory calibration, digital output, and enhanced protection against dust and chemical contaminants, this sensor is ideal for industrial, laboratory, and outdoor applications. The Mini Round Shell connector and 1-meter cable length provide flexible deployment, even in confined or harsh environments such as test chambers, trenches, pipes, and hazardous zones.

Specifications:

• Operating Voltage : 3.3V
• Interface : I2C
• Temperature Range : -40 to 125 C
• Humidity Range : 0~100%rh
• Humidity Accuracy : a=+/- 3 %
• Temp Accuracy : a+/- 0.3 C
• Sensor Brand : Sensirion
• Sensor Used : SHT20
• Wiring : Red: VCC, Black: GND, Yellow: SDA, Green: SCL
• Probe : Metal probe with copper sintered filter/ PE

Features and Benefits

• Accurate & Stable Measurements
  CMOSens technology ensures digital, linearized readings with minimal drift over time, supporting a temperature range of -40°C to 125°C.

• Robust Metal Probe Construction
  Stainless steel porous housing resists high pressure, corrosion, and dust, ideal for long-term industrial use.

• Advanced Breathable Shell Design
  Provides large air permeability and fast humidity exchange rate while protecting internal electronics from dust and chemical exposure.

• Pre-Calibrated & Digital Output
  Fully factory-calibrated for humidity and temperature with I2C interface for easy integration and low power data communication.

• High Filtration Efficiency
  Precision pore sizes (5 to 120 microns) offer excellent filtration, interception, and uniform dispersion performance.

• Exceptional Environmental Resistance
  Performs reliably in challenging scenarios such as high humidity, hot drying processes, confined spaces, vacuum chambers, and explosive environments.

• Long-Term Durability
  Anti-shedding design and superior material quality ensure a longer service life and dependable readings over time.
