7Semi INA260 High Precision I2C Current Voltage and Power Monitor Module with Integrated 2mΩ Shunt, 15A, 36V
7Semi INA260 High Precision I2C Current Voltage and Power Monitor Module with Integrated 2mΩ Shunt, 15A, 36V
Couldn't load pickup availability

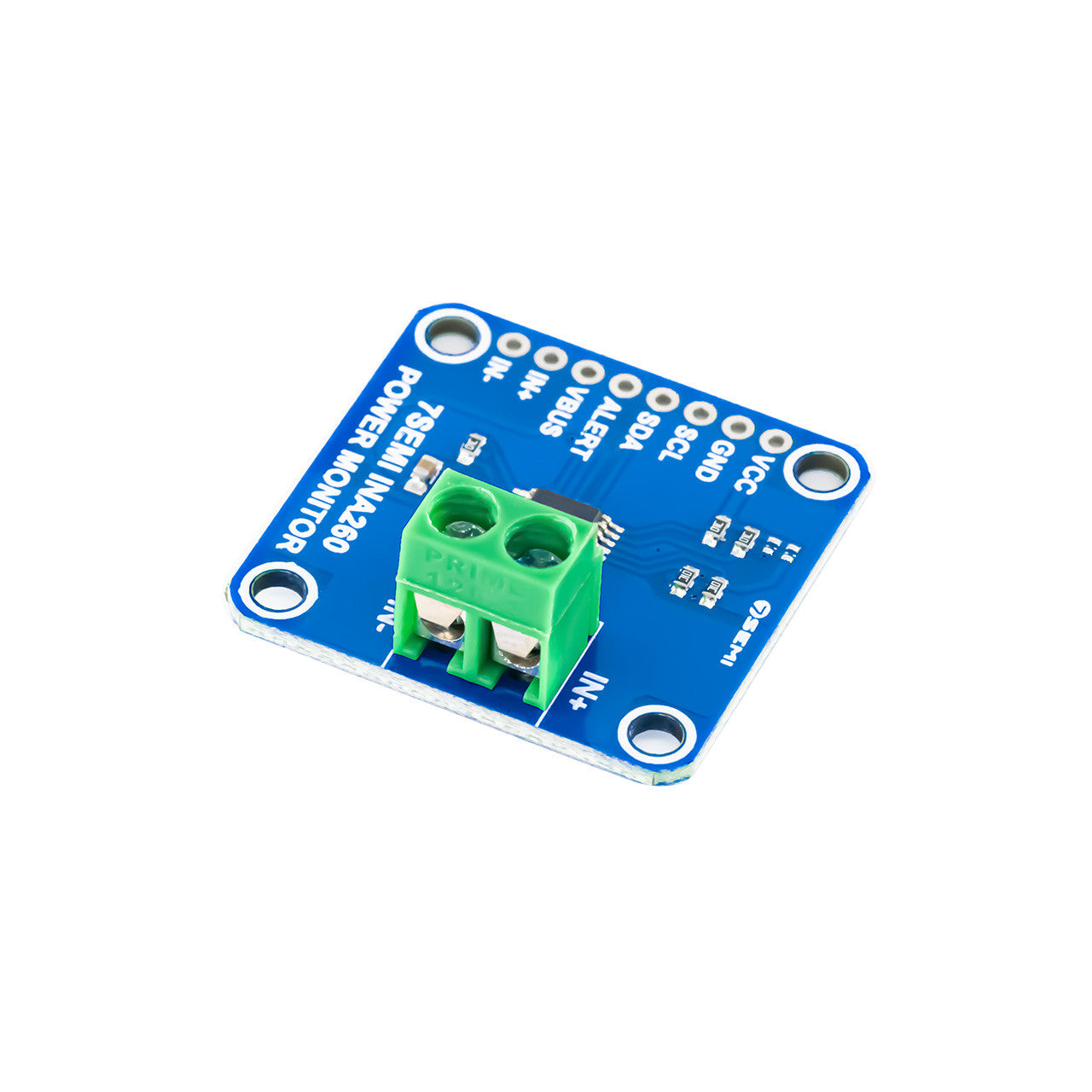

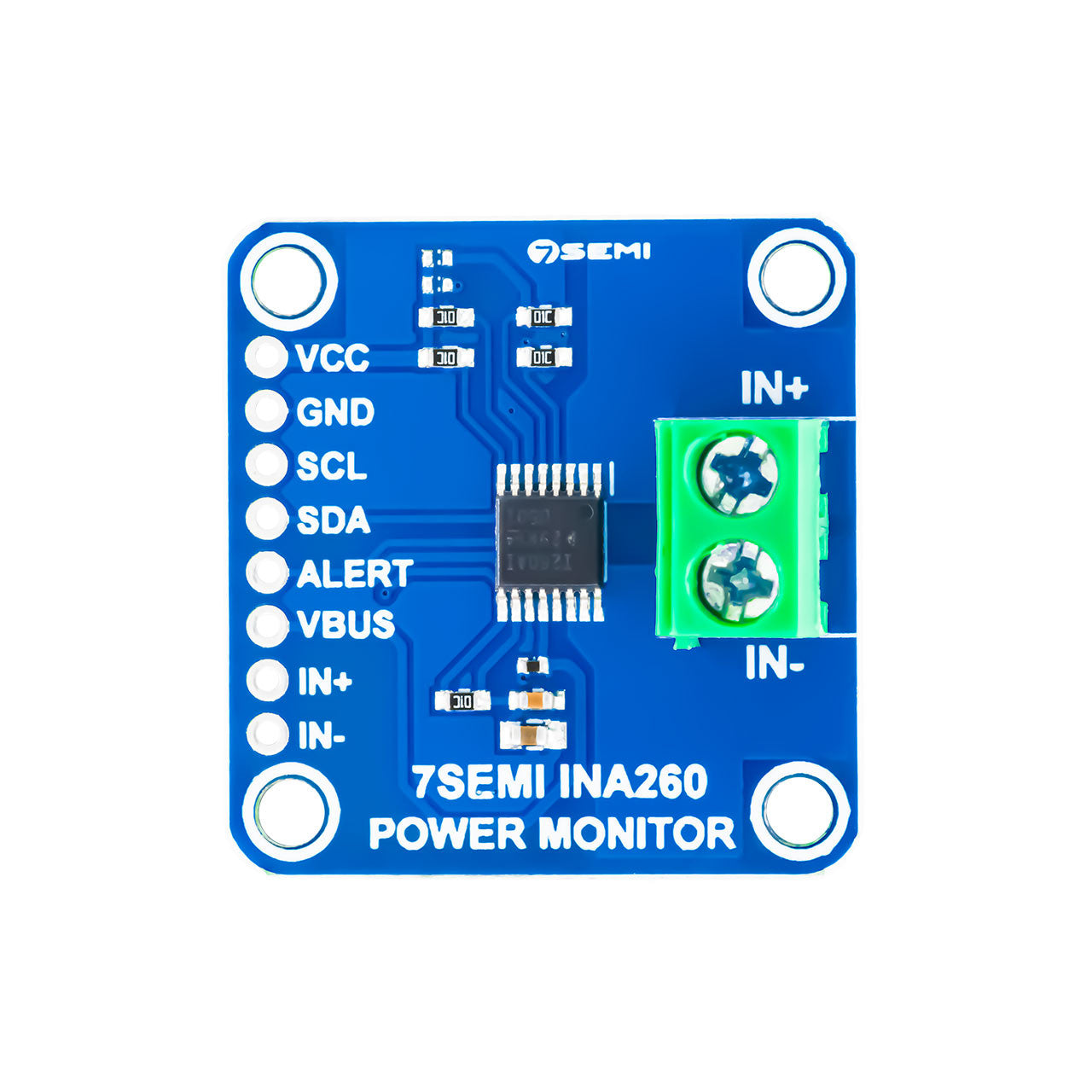

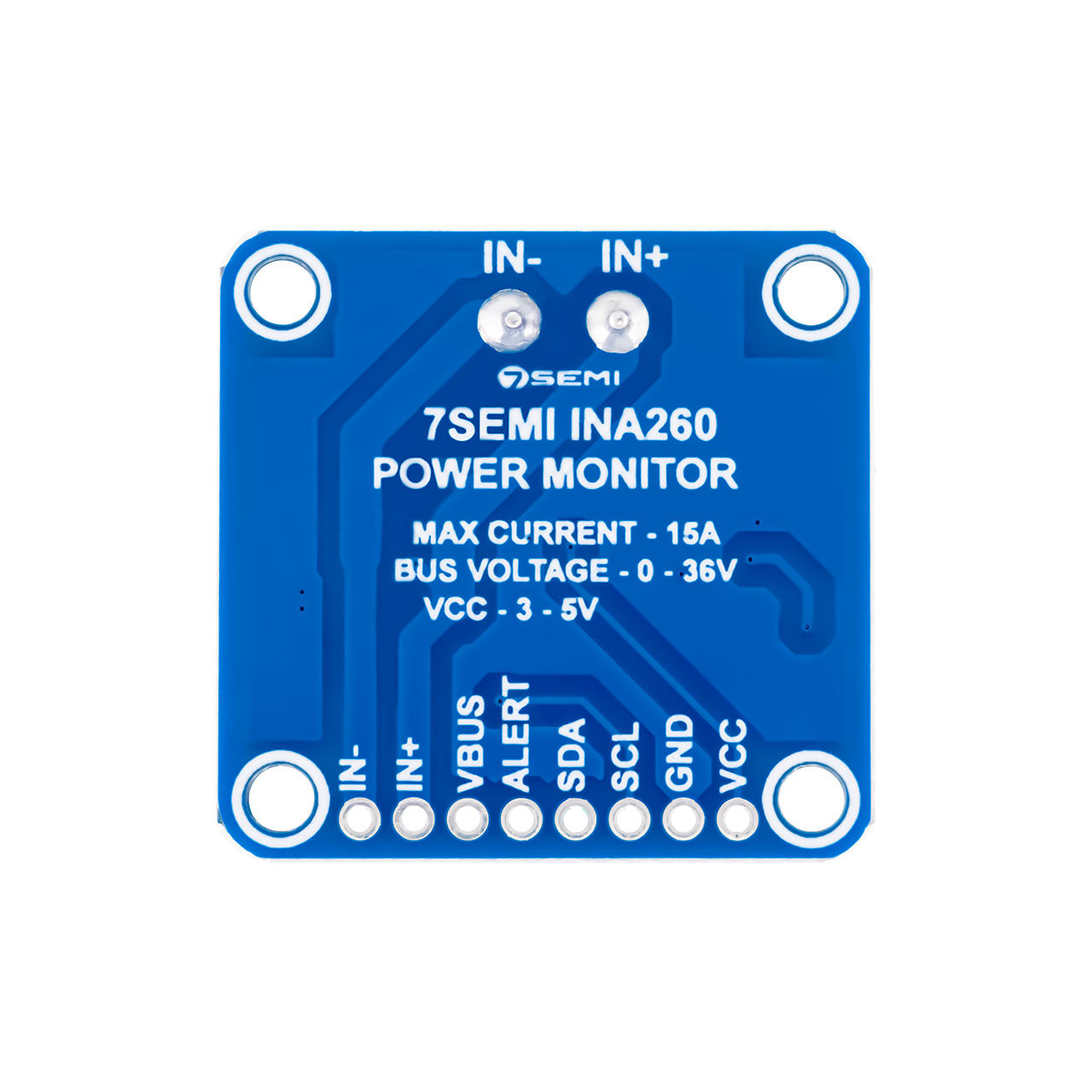

The 7Semi INA260 Power Monitor Module is a compact, high-accuracy digital current, voltage, and power measurement board designed for embedded systems, IoT devices, battery monitoring, DC power analysis, robotics, industrial control, solar power monitoring, power supply testing, and energy management applications. Built around the Texas Instruments INA260, it provides direct digital readings over I2C without requiring an external shunt resistor.
This module integrates a precision 2mΩ current-sense resistor inside the INA260, helping reduce calibration errors, PCB layout issues, and external component count. It can measure bus voltages from 0V to 36V and supports bidirectional high-side or low-side current sensing, making it suitable for monitoring loads, batteries, chargers, DC motors, embedded boards, communication equipment, and power distribution systems.
With I2C/SMBus communication, programmable alert output, configurable averaging, and 16 programmable I2C addresses, the 7Semi INA260 module is ideal for Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller-based projects that require reliable real-time current sensing, voltage monitoring, power logging, over-current detection, and system power optimization. The board operating temperature rating is -40°C to +80°C.
Specifications:
- Operating Voltage : 5V
- Accuracy : 0.15% System Gain Error (Maximum), 5-mA Offset (Maximum)
- Programmable Addresses : 16
- Senses Bus Voltages : 0V to 36V
- Dimension in mm : L=31mm W=30mm H=14mm
Features
- Based on Texas Instruments INA260 precision digital power monitor IC
- Measures current, voltage, and power through I2C digital interface
- Integrated precision 2mΩ shunt resistor for accurate current sensing
- Supports bus voltage measurement from 0V to 36V
- Supports up to ±15A continuous current measurement
- High-side and low-side current sensing compatible
- Reports current in amperes, voltage in volts, and power in watts
- I2C and SMBus-compatible communication interface
- 16 programmable I2C address options for multi-sensor systems
- Programmable alert output for over-current, under-current, voltage, and power limit monitoring
- Configurable ADC conversion time and averaging options
- 16-bit ADC resolution for precise digital measurement
- Low supply current, suitable for power-sensitive embedded designs
- Works with Arduino, ESP32, STM32, Raspberry Pi, and industrial controllers
- Compact 7Semi PCB with labeled pins and screw terminal for load connection
- Connection With Arduino
Board Dimensions
7Semi INA169, INA219, INA260 Current Sensor Breakout Comparison Table
