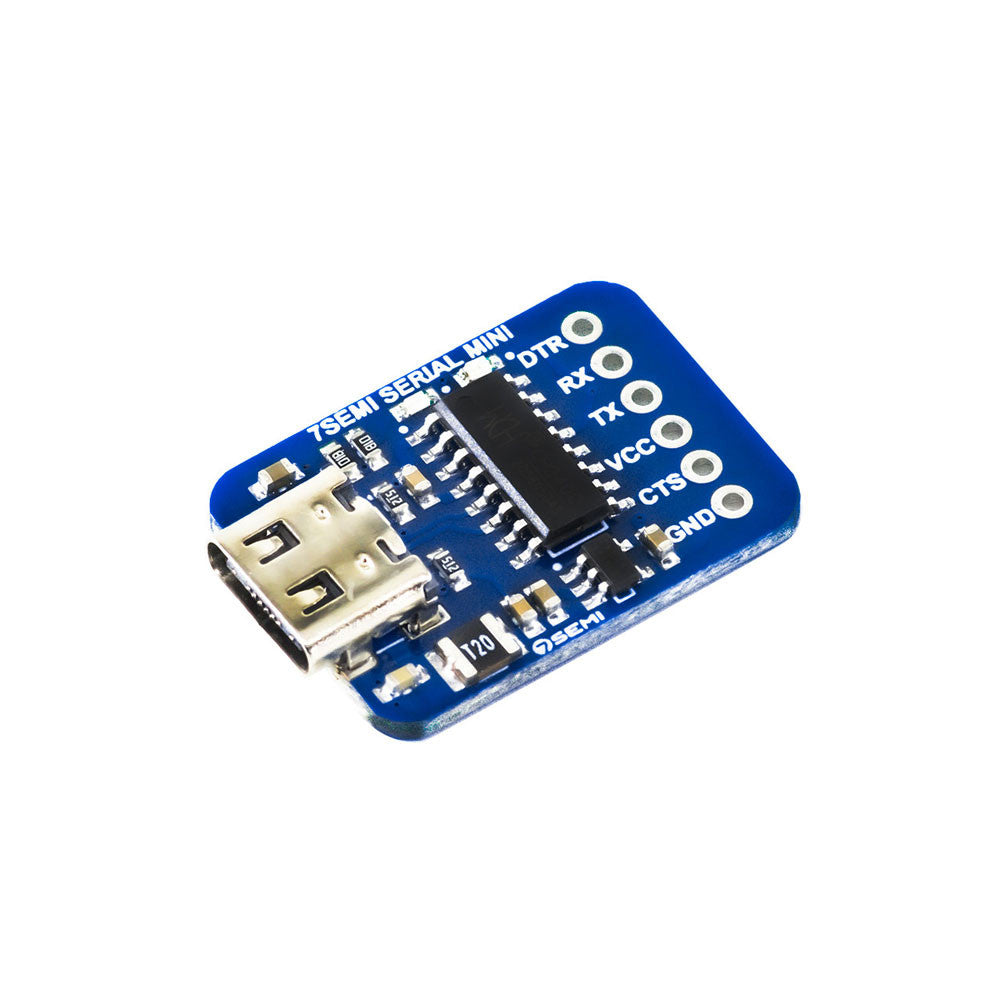

7Semi CH340C USB-C to Serial TTL Converter Module
7Semi CH340C USB-C to Serial TTL Converter Module
Couldn't load pickup availability
The 7Semi CH340C USB-C to Serial TTL Converter Breakout represents a state-of-the-art solution designed for effortless device connectivity. Featuring a USB-C type connector, this compact breakout board ensures convenient and dependable links for a variety of applications.
Powered by the latest CH340C chip, this converter boasts outstanding performance and compatibility. Its comprehensive pinout, encompassing DTR, RX, TX, VCC, CTS, and GND, facilitates compatibility with a diverse array of devices, facilitating seamless communication and data transfer.
Whether you're interfacing with GPS modules, microcontrollers, or other electronic components, the 7Semi CH340C USB-C to Serial TTL Converter Breakout offers the flexibility and versatility required. Elevate your projects to new heights with this advanced converter, experiencing heightened productivity and smooth integration.

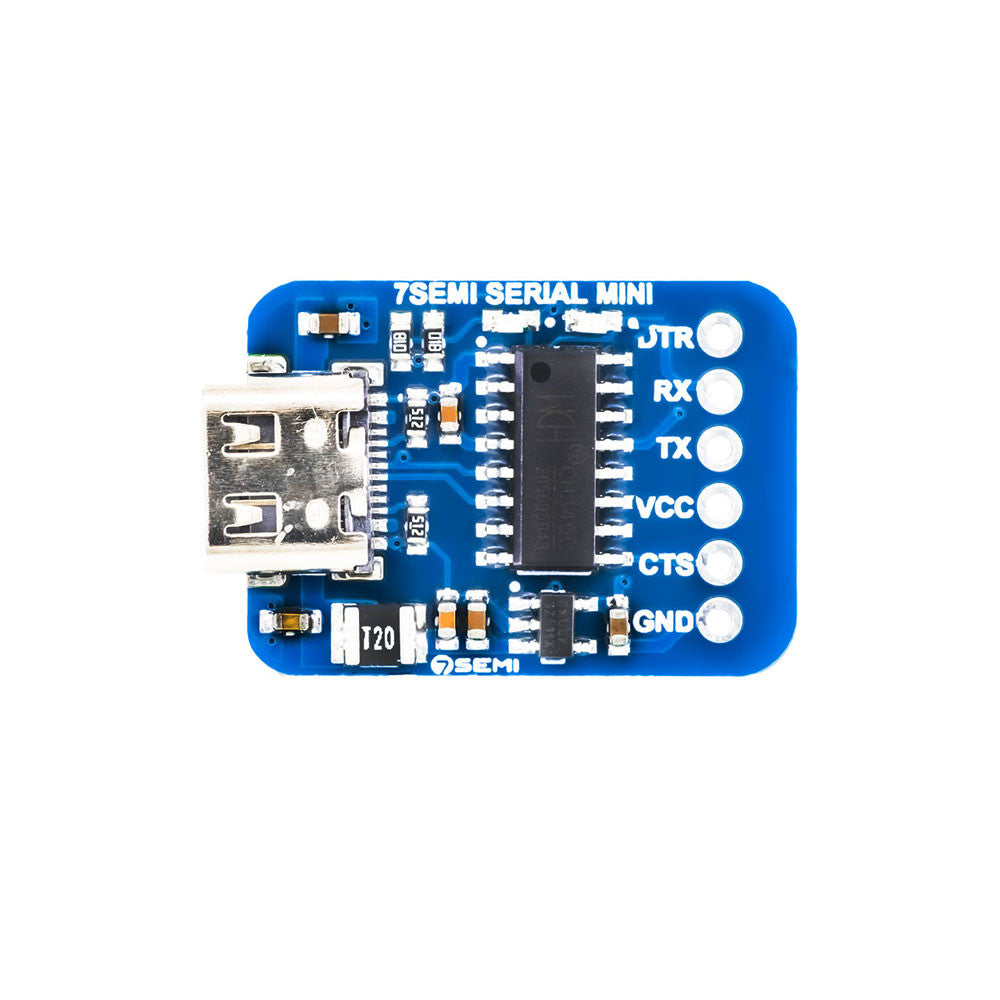

LEDs:
The board features two LEDs, TX (Blue) and RX (Red), linked and correctly aligned with the RX and TX pins. This provides a quick and easy method to monitor serial traffic.
Specifications:
- OPERATIONAL VOLTAGE : 3.3V TO 5V
- PITCH IN MM : 2.54MM HEADDERS
- USB TYPE : USB 2.0 TYPE C
- OPERATIONAL TEMPRATURE : -40°C to +70°C
- BAUD RATE : 2000BPS TO 11500BPS

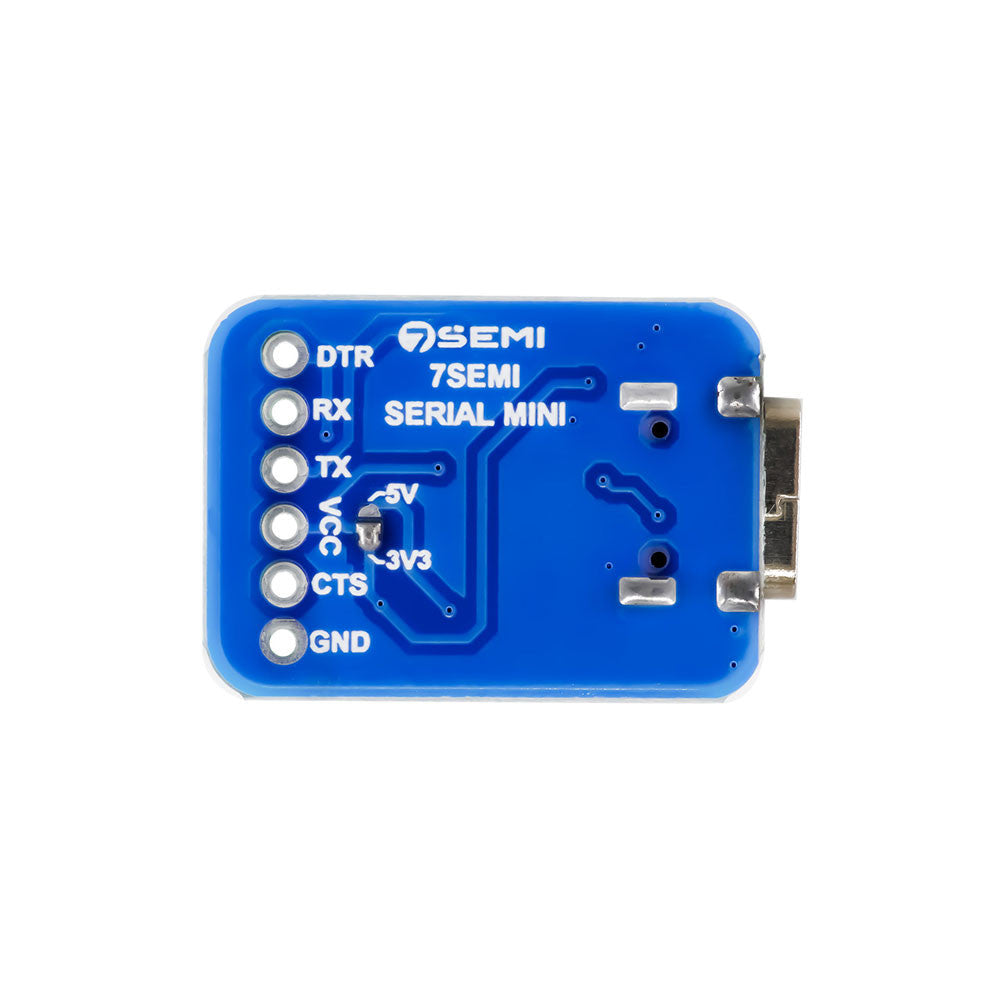

USB to Serial Adapter Pins Overview
| Pin Label | Input/Output | Description |
|---|---|---|
| DTR | Output | Data Terminal Ready, Active Low |
| RX | Input | Serial Receive |
| TX | Output | Serial Transmit |
| VCC | Supply Output | Power supply 3.3V (Default) or 5V |
| CTS | Input | Clear To Send, Active Low |
| GND | Supply Output | Ground (0V) supply |
