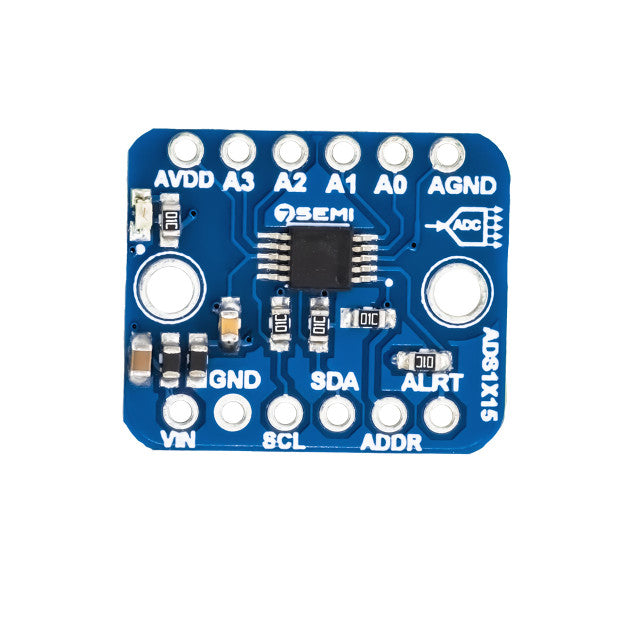

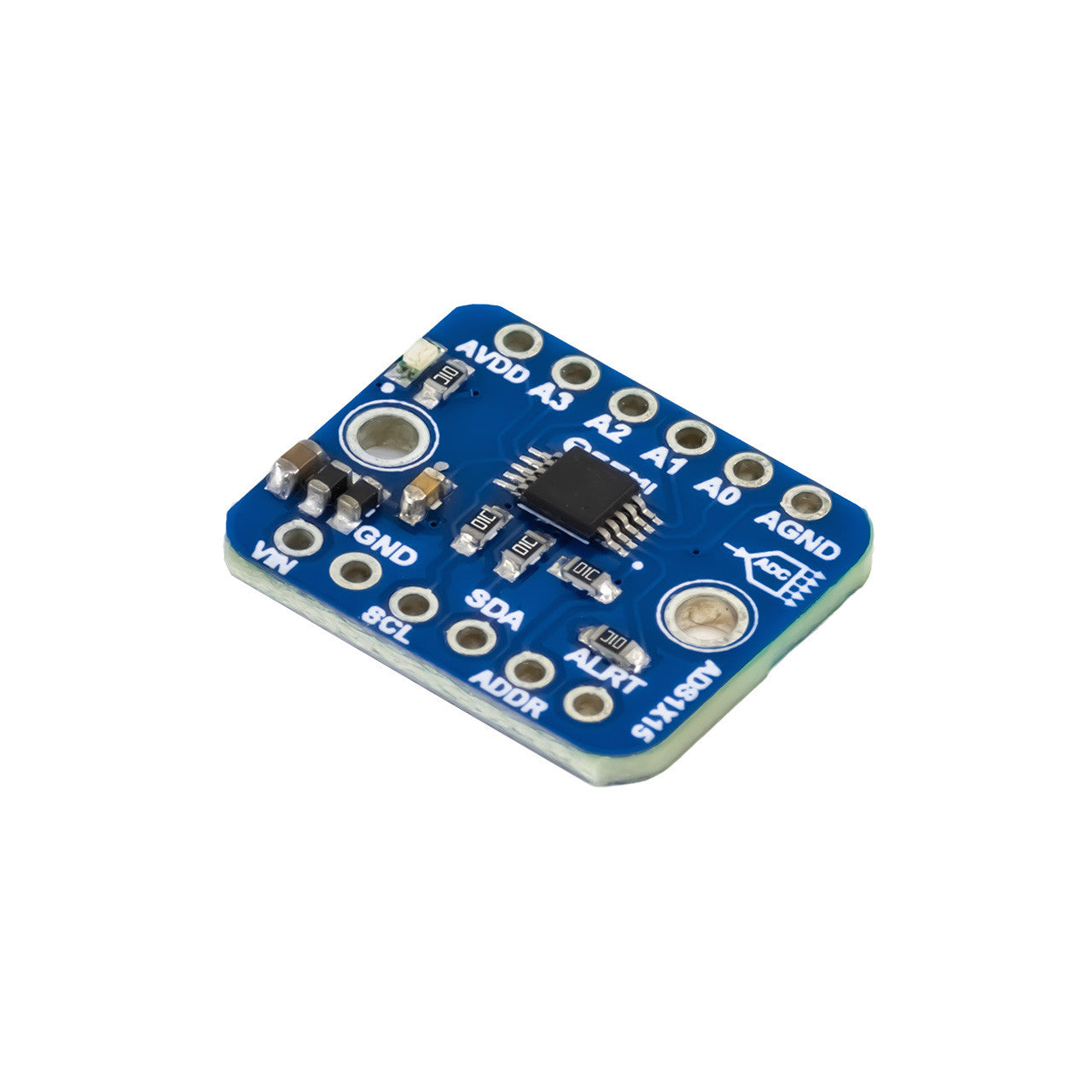

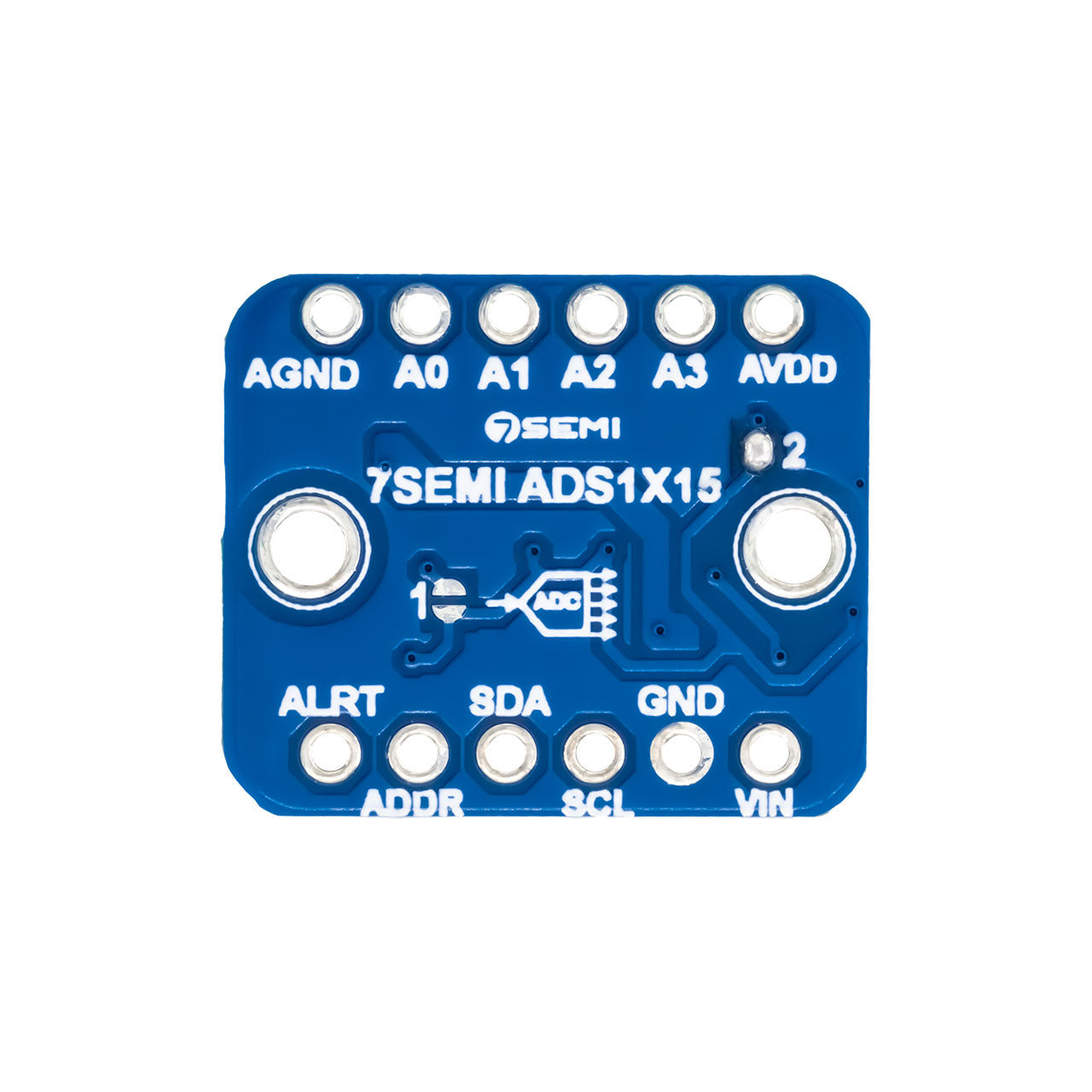

The 7Semi ADS1115 ADC Module is a high-precision board used to convert analog signals into digital values. It is ideal for reading sensors where accuracy is important. With 16-bit resolution, it provides very fine measurement results. The module uses I2C communication, making it easy to connect with microcontrollers. It supports a wide voltage range and low power operation, making it suitable for portable, industrial, and embedded applications.

Specifications:

• CHIP USED : ADS1115
• CATEGORY : ADC
• SUPPLY VOLTAGE (Vdd) : 3.3V
• OPERATING TEMPRATURE : -40°C TO 80°C
• COMMUNICATION : I2C
• RESOLUTION : 12BIT
• SAMPLING RATE (SPS) : 860 KSPS
• TOPOLOGY : TOPOLOGY delta-sigma (ΔΣ) + PGA
• DIMENSION : L=19mm W=16mm H=2.55mm

Features:

• 16-Bit ADC: High accuracy analog to digital conversion.

• 4-Channel Input: Connect multiple sensors easily.

• I2C Interface: Simple and fast communication.

• Wide Voltage Range: Works from 2.0V to 5.5V.

• Programmable Gain: Adjusts for different signal levels.

• Adjustable Data Rate: Supports 8 to 860 samples per second.

• Low Power Consumption: Suitable for battery-powered projects.

• Flexible Input Modes: Supports single-ended and differential inputs.

• Wide Temperature Range: Reliable operation in harsh environments
