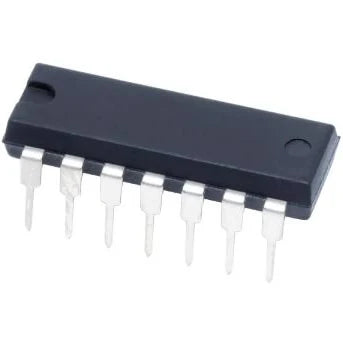

7420 Dual 4-input NAND Gate IC
Regular price
Rs. 29.00
Regular price
Sale price
Rs. 29.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
The 74HC20 is a 14 Pin Quad 4-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs.
All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Features :-
- Complies with JEDEC standard JESD7A
- Low-power dissipation
- Input Levels : For 74HC20: CMOS level / For 74HCT20: TTL level
- ESD protection: HBM JESD22-A114F exceeds 2000 V / MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from 40 C to +80 C and from 40 C to +125 C.
Specifications :-
| Parameter | Specification |
| Supply Voltage (VCC | − 0.5 to + 7.0V DC |
| Input Voltage (VIN) | −0.5V to VDD + 0.5V |
| Output Voltage (VOUT) | − 0.5 to VCC + 0.5V |
| Clamp Diode Current (IIK, IOK) | ± 20 mA |
| DC Output Current, per pin (IOUT) | ± 25 mA |
| DC VCC or GND Current, per pin (ICC) | ± 50 mA |
| Storage Temperature Range (TSTG) | − 65°C to + 150°C |
| Power Dissipation (PD) (Note 4) | 500 mW |
| S.O. Package only | 500 mW |
