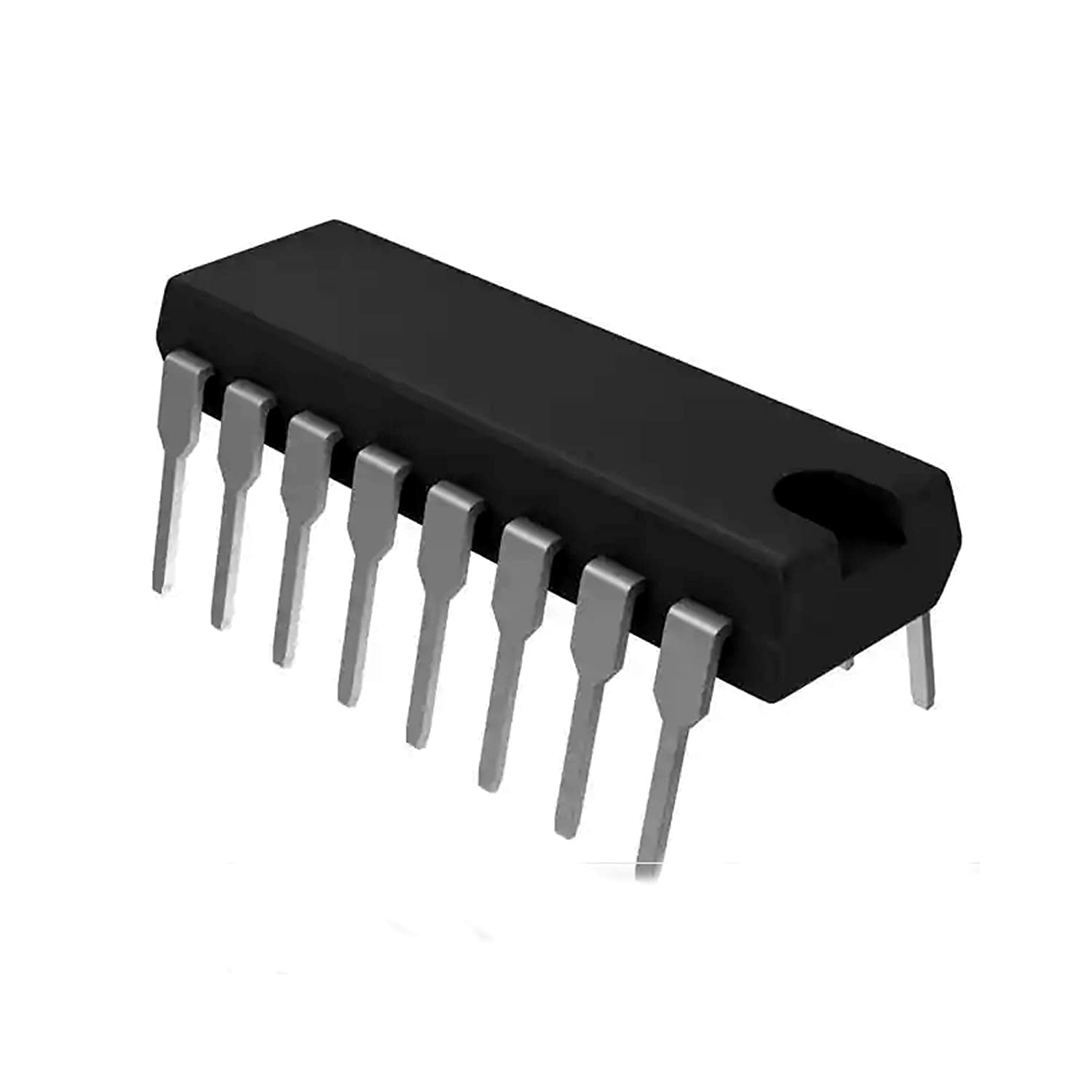

74112 Dual J-K Negative Edge Triggered Flip-Flop IC
Rs. 35.00
Rs. 95.00
Subcribe to back in stock notification
All Prices Incuding GST
Save upto 28% in Input Credit
Order Through WhatsApp
+91-8249931161
Fast Delivery
Same Day Dispatch.
Bulk Purchase
Get Attractive Discount on Bulk
- Dual JK Negative Edge Triggered Flip-Flops With Preset and Clear
- High-level input voltage: 2V
- Low-level input voltage: 0.8V
- High-level output current: -0.4mA
- Low-level output current: 8mA
- Maximum clock frequency: 45MHz
- Propagation delay time: 20ns
- Supply voltage range: 4.75 to 5.25V
- Package: DIP-16
The SN74LS112AN is a dual J-K Negative-Edge-Triggered Flip-Flop with clear and preset. When preset and clear are inactive (high), data at the J and K inputs meeting the setup time requirements are transferred to the outputs on the negative-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold time interval, data at the J and K inputs may be changed without affecting the levels at the outputs. This versatile flip-flop can perform as toggle flip-flop by tying J and K high. The SN74S112A is characterized for operation from 0 to 70°C.
