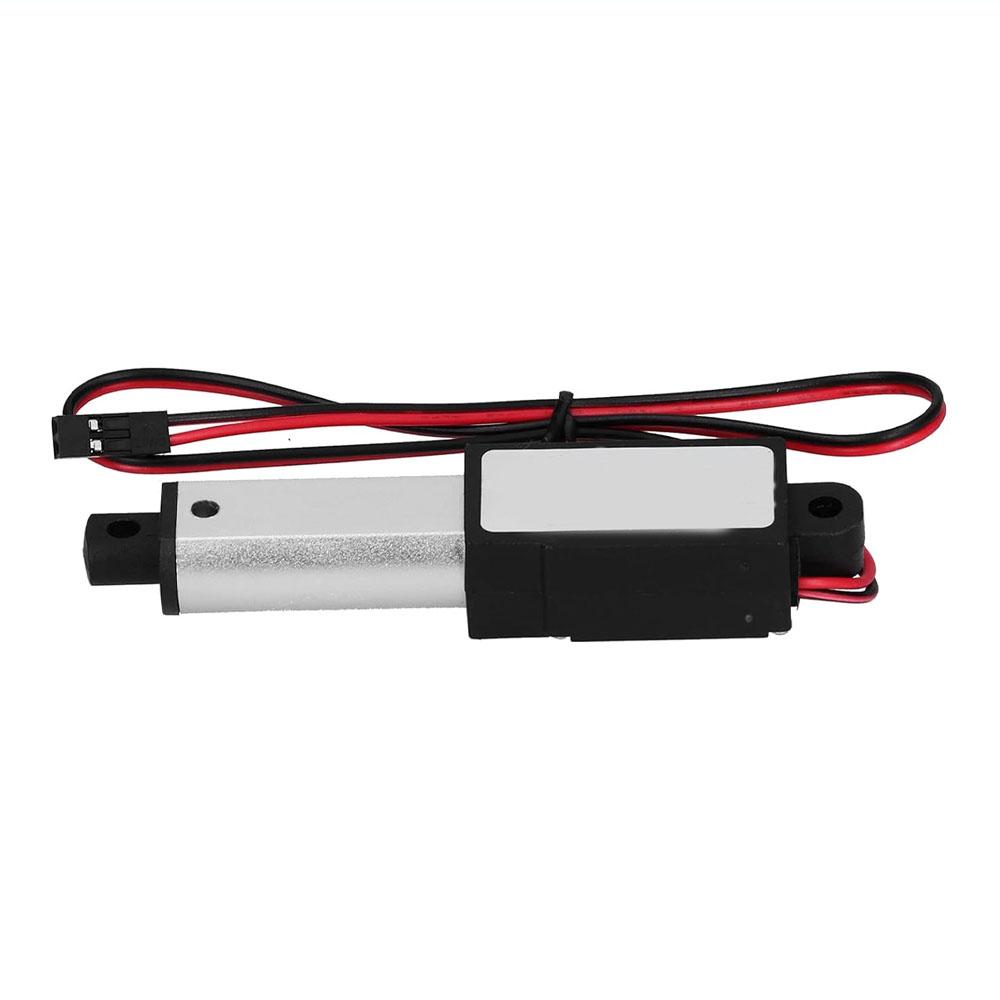

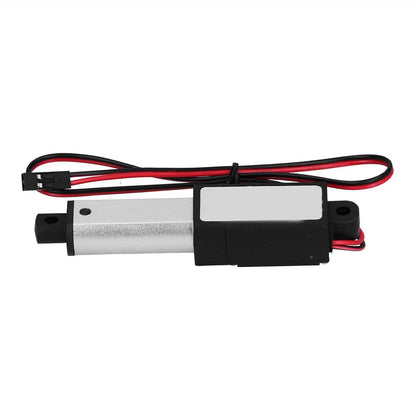

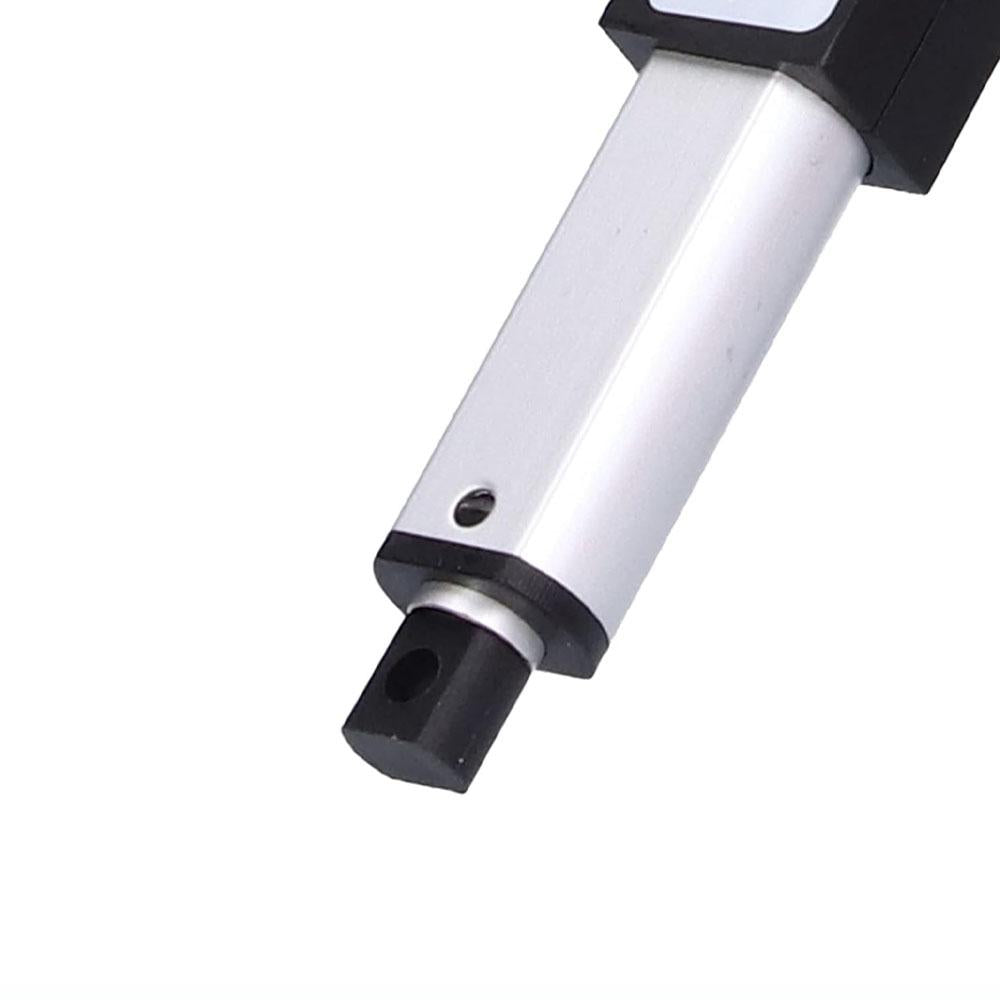

12v 50MM 15mm/S 64N Mini Linear Actuator
Regular price
Rs. 3,199.00
Regular price
Sale price
Rs. 3,199.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Is compact mini linear actuator offers a 50mm stroke, delivering precise motion at a speed of 15mm/s. With a force capacity of 64N, it is ideal for small-scale automation projects where space is limited but reliability is crucial. Operating on a 6V DC power supply, it is suitable for a variety of applications, including robotics, medical devices, and home automation.
Features:
- Stroke Length: 50mm
- Speed: 15mm/s for smooth and controlled movement
- Force: 64N, providing reliable lifting and pushing power
- Voltage: 12V DC for efficient energy consumption
- Compact Design: Ideal for applications with limited space
- Durability: Built to last with high-quality materials
Specifications:
- Input Voltage: 12V DC
- Stroke Length: 50mm
- Speed: 15mm/s
- Max Load Capacity: 64N
- Duty Cycle: 25% (max 1 minute continuous use, 3 minutes rest)
- Operating Temperature: -20°C to +65°C
- Protection Class: IP54 (resistant to dust and splashing water)
- Connection: 2-wire configuration for easy installation
Package Includes:
1 x 12v 50MM 15mm/S 64N Mini Linear Actuator
