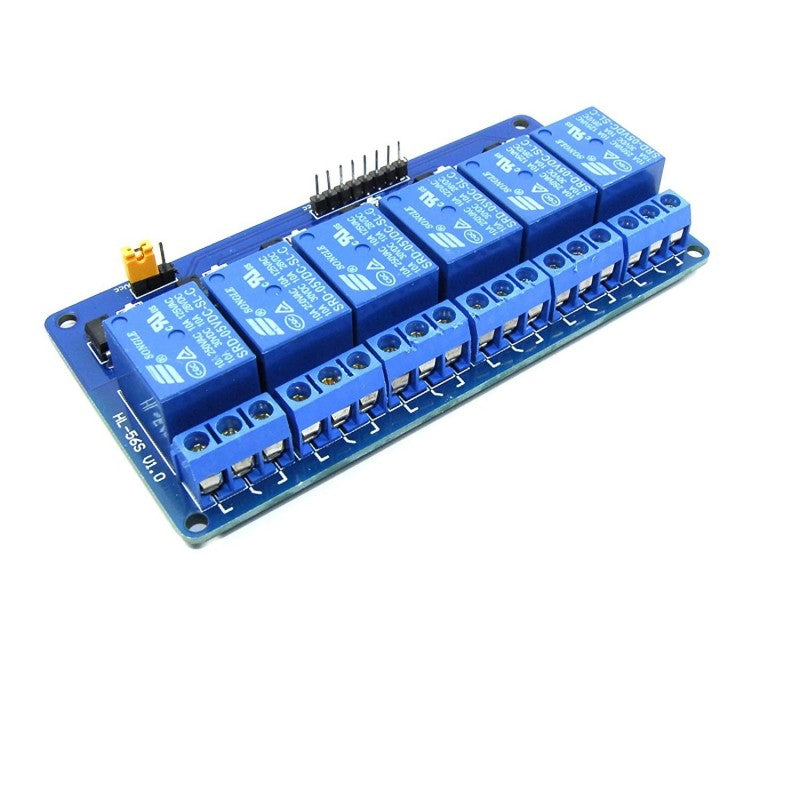

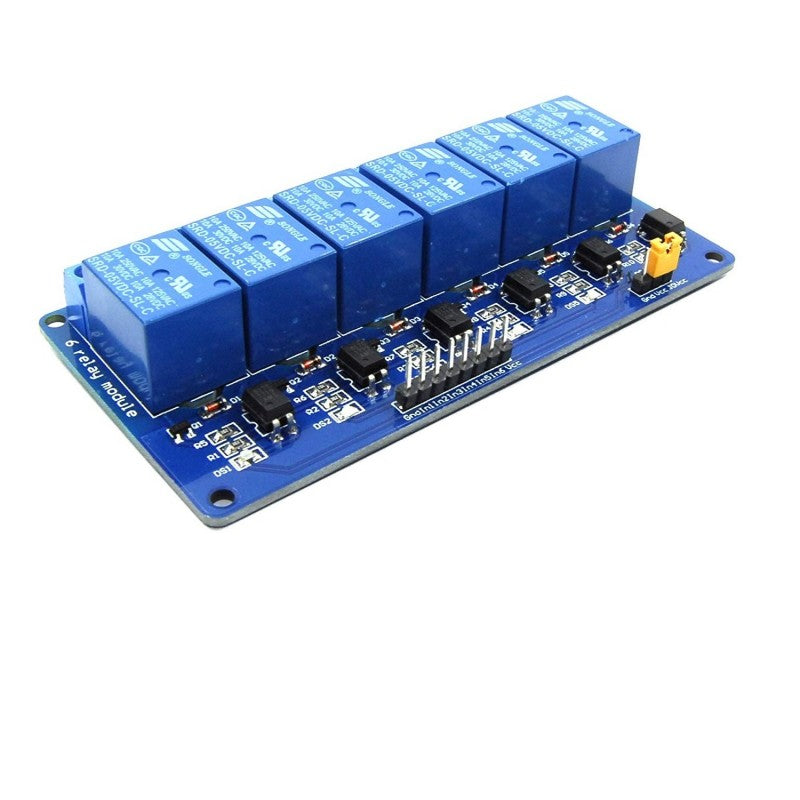

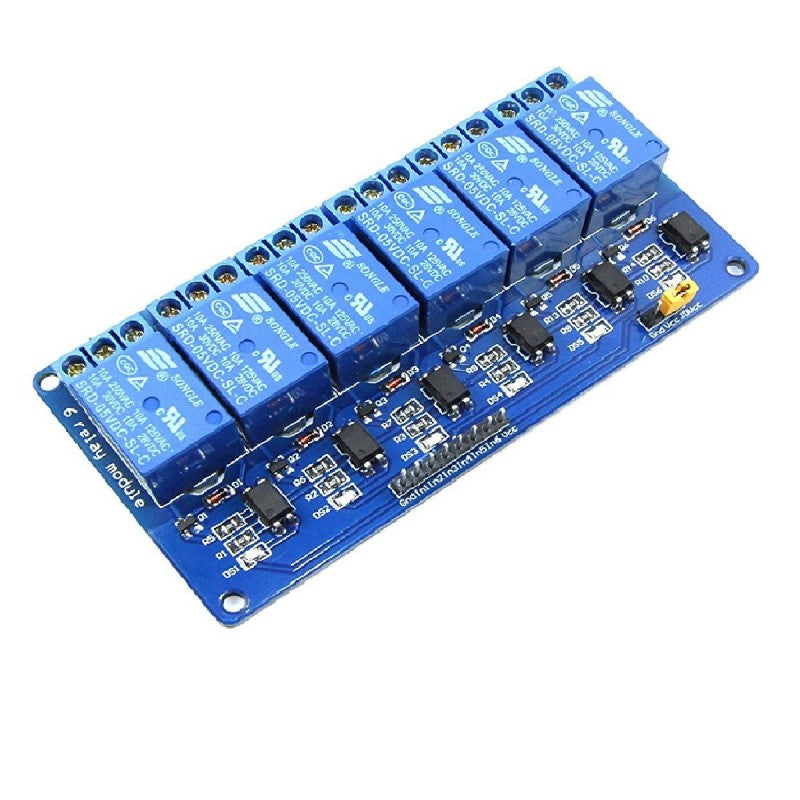

6 Channel 5V Relay Module with Optocoupler

• Channel: 6 channel
• Relay Operating Voltage: 5V
• One normally closed contact and one normally open contact
• Triode drive, increasing relay coil
• High impedance controller pin
• Pull-down circuit for the avoidance of malfunction
• Power supply indicator and Control indicator lamp
• Power supply and relay instructions, lit, the disconnect is off

Features :

• 6-way relay output module contact capacity is 10A 250V.
• input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective.
• Using single-chip design, reliable performance, strong anti-interference, no false triggering, superior performance.
• The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated.
• Each relay has an activity indicator light. With 4 fixed bolt holes, easy installation.
• Support all SCM control. It is applicable to the industrial sector, PLC control and home intelligent control.


It is a 6 Channel 5V Relay Module with Optocoupler. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A.With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA, module working voltage: DC 5V.Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red).All module size interfaces can be directly connected through the terminal block, which is convenient and practical.
