• Material: Brass
• Color: Golden
• Flow Range: 1-30L/min

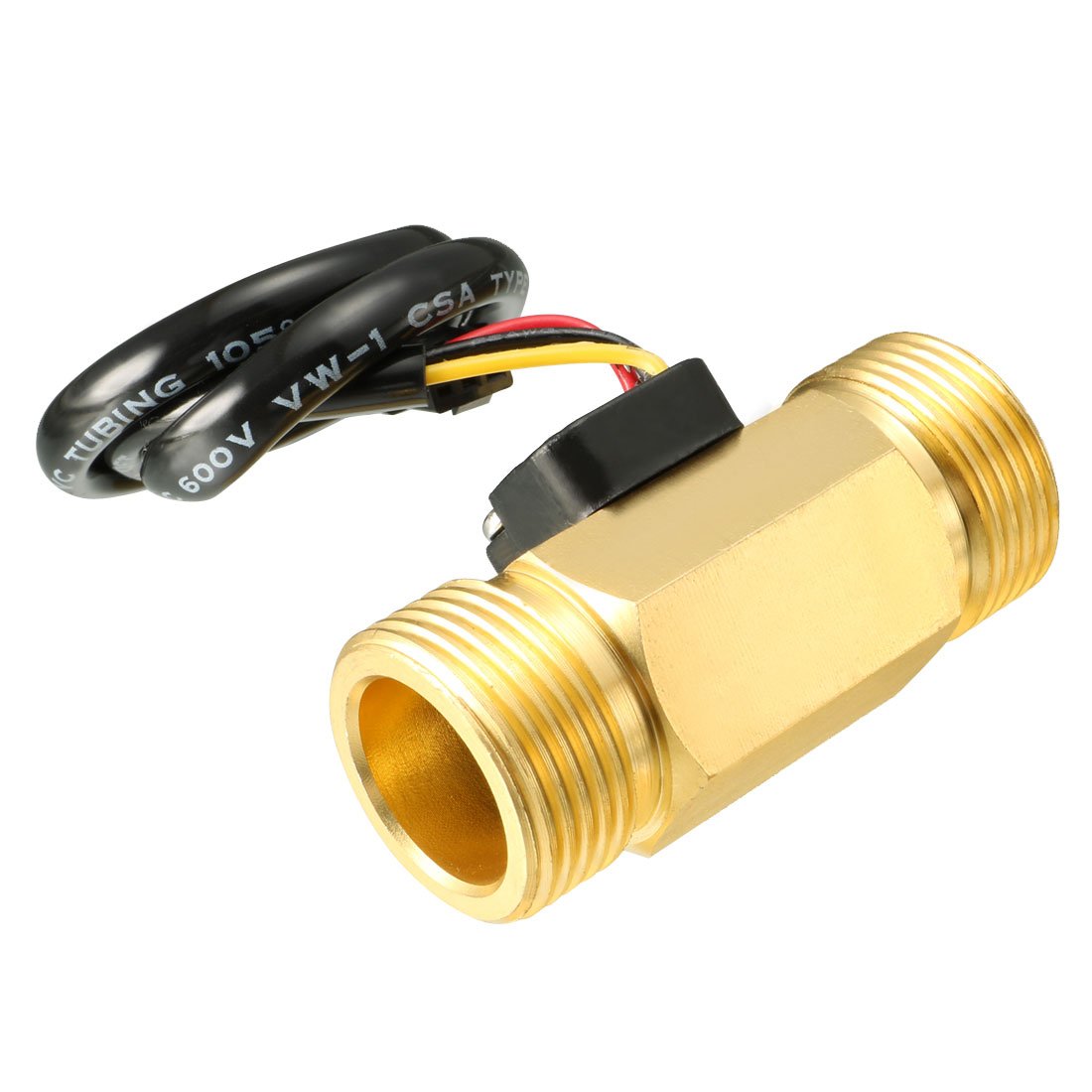

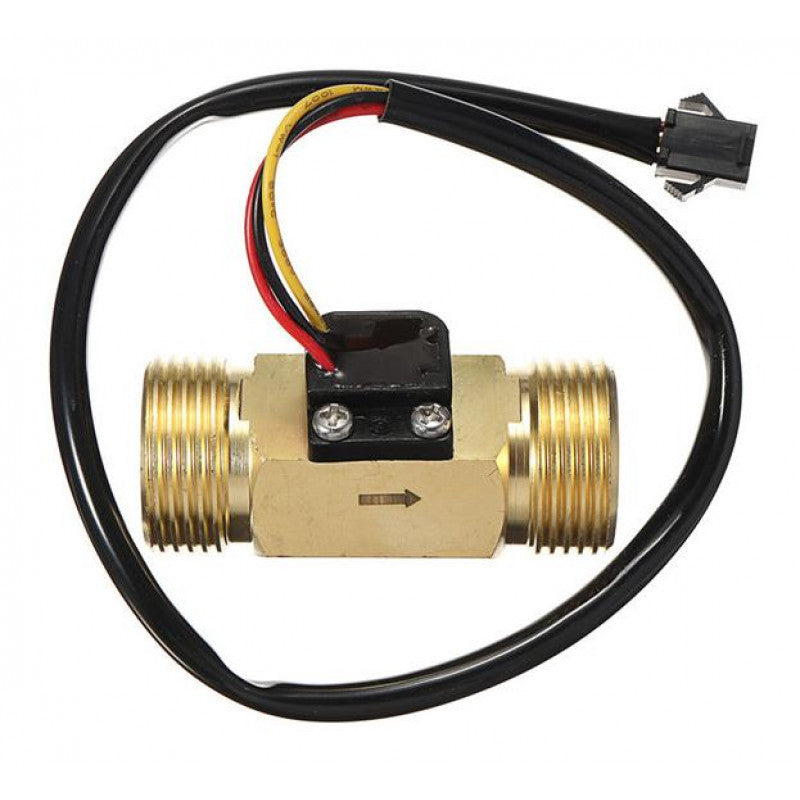

0.75 cm (3/4″) Brass Water Flow Sensor-SEN-HZ43WB,When magnetic material is close with the sensor, its characteristics may vary. In order to avoid particle debris, the sensor must be installed after a filter. The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor’s measurement accuracy. Widely used in water industrial field, such as thermostatic water heater, water purifier, water dispenser, smart card equipment, coffee machine etc. Wiring: Black:Power Negative, Red:Power Positive, Yellow: Signal.

Features/Specs

• Product Name: Water Flow Sensor Switch
• Model: SEN-HZ43WB
• Type: Hall Effect
• Max Switch Current & Voltage: 10mA, DC3-18V
• Working Range: 1-30L/min
• Male Port Thread Dia(Each End): G3/4
• Max. Pressure: 1.75Mpa
• Insulation Resistance: 100M Ohm(Min.)
• Total Size: 60 x 32mm/ 2.4 ” x 1.3 ” (L*Max.W)
• Cable Length: 34cm/ 13.4 “
• Main Material: Copper
• Color: Gold Tone, Black
• Net Weight: 153g

Package Includes:

• 1 x 1/4″ Brass Water Flow Sensor-SEN-HZ43WC

Note: Product Images are shown for illustrative purposes only and may differ from actual product.
