• Display Size: 2.0″
• Driver IC: ILI9225
• Input Voltage (V): 3.3 to 5
• Pixel Resolution: 176 x 220
• PCB Size (mm): 62×38 (LxW)
• Interface Type: SPI

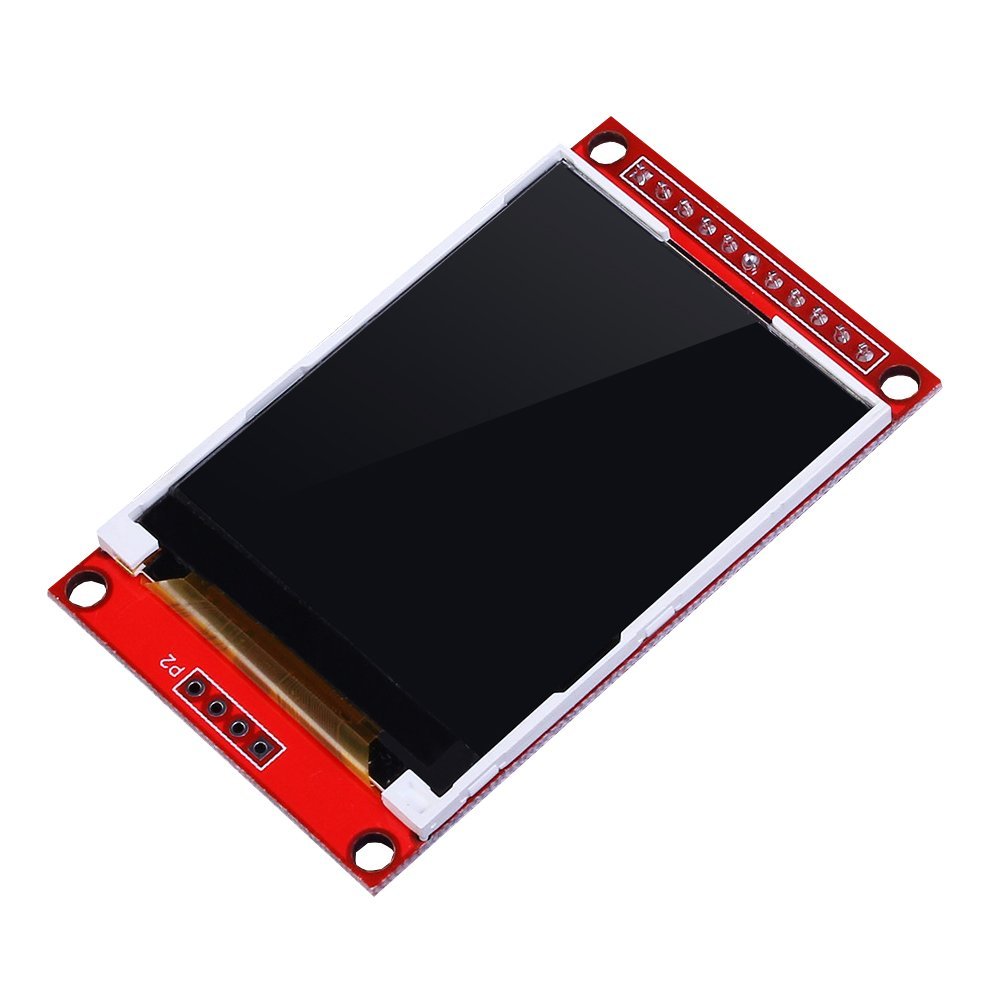

This lovely little 2.0 Inch SPI TFT LCD Color Screen Module ILI9225 Serial Interface 176 x 220 display breakout is the best way to add a small, colorful and bright display to any project.

Since the 2.0 Inch SPI TFT LCD Color Screen Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!

The 2.0 inch TFT display has 176×220 color pixels. Unlike the low cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ILI9225) can display full 18-bit color (262,144 shades!).

And the LCD will always come with the same driver chip so there are no worries that your code will not work from one to the other.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Package includes:

1 x 2 Inch TFT LCD Module
