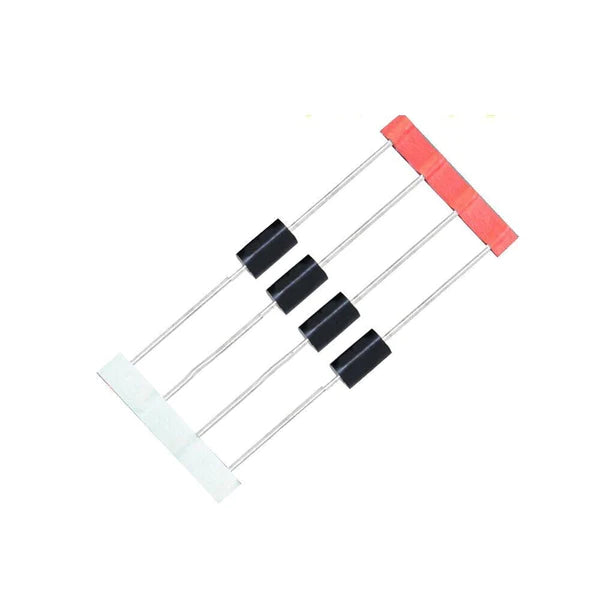

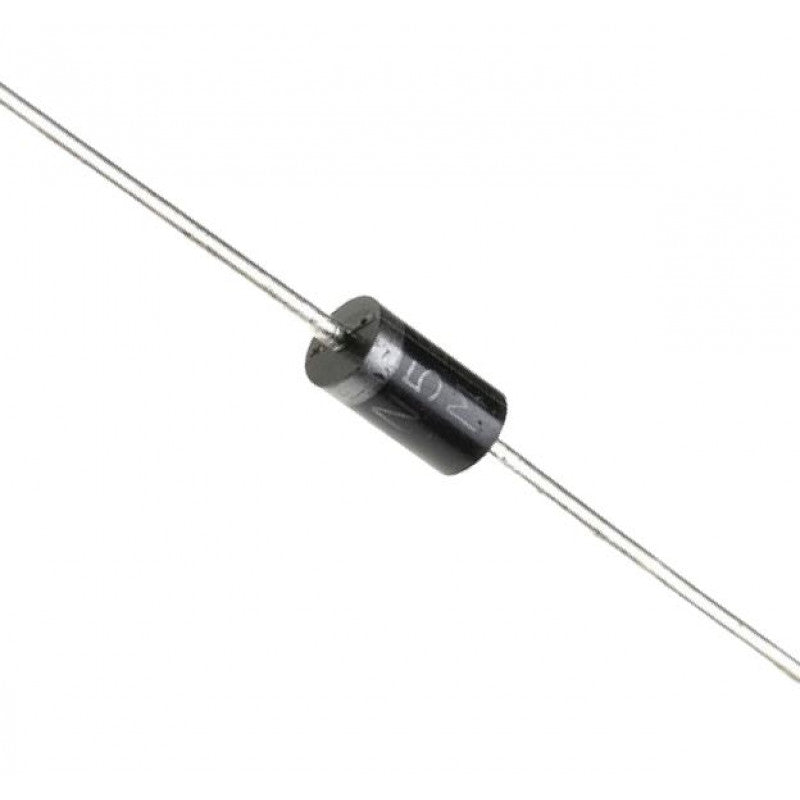

1N5822 Schottky Barrier Diode

Rs. 10.00
Rs. 10.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption
The IN5822 series employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes, and polarity protection diodes.



Features:-

• Extremely Low VF

• Low Power Loss/High Efficiency

• Low Stored Charge, Majority Carrier Conduction

• Shipped in plastic bags, 500 per bag

• Available in Tape and Reel, 1500 per reel, by adding a “RL'' suffix to the part number

• Pb-Free Packages are Available

Mechanical Characteristics:-

• Case: Epoxy, Molded

• Weight: 1.1 Gram (Approximately)

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

• Polarity: Cathode indicated by Polarity Band

Specification:-

Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 40 V
VRWM Working Peak Reverse Voltage 40 V
VR DC Blocking Voltage 40 V
VR(RMS) RMS Reverse Voltage 28 V
VRSM Non−Repetitive Peak Reverse Voltage 48 V
IO Average Rectified Output Current 3 A
IFSM Non-Repetitive Peak Forward Surge Current 80 A
TJ Operating Junction Temperature Range − 65 to +125 °C
 Tstg Storage Temperature Range − 65 to +125 °C
150°
