• Low dropout voltage (1 V typ.)
• 2.85 V device performances are suitable for SCSI-2 active termination
• Output current up to 800 mA
• Fixed output voltage of: 1.2 V, 1.8 V, 2.5 V,3.3 V, 5.0 V
• Adjustable version availability (VREF = 1.25 V)
• Internal current and thermal limit
• Available in ± 1 % (at 25 °C) and 2 % in full temperature range
• Supply voltage rejection: 75 dB (typ.)

The LM1117 is a low dropout voltage regulator with a dropout of 1.2 V at 950 mA of load current. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25 to 13.8 V with only two external resistors. In addition, it is available in five fixed voltages, 1.8 V, 2.5 V, 3.3 V, and 5 V.

The LM1117 offers current limiting and thermal shutdown. Its circuit includes a Zener-trimmed bandgap reference to ensure output voltage accuracy to within ±1%.

Features/Specs:

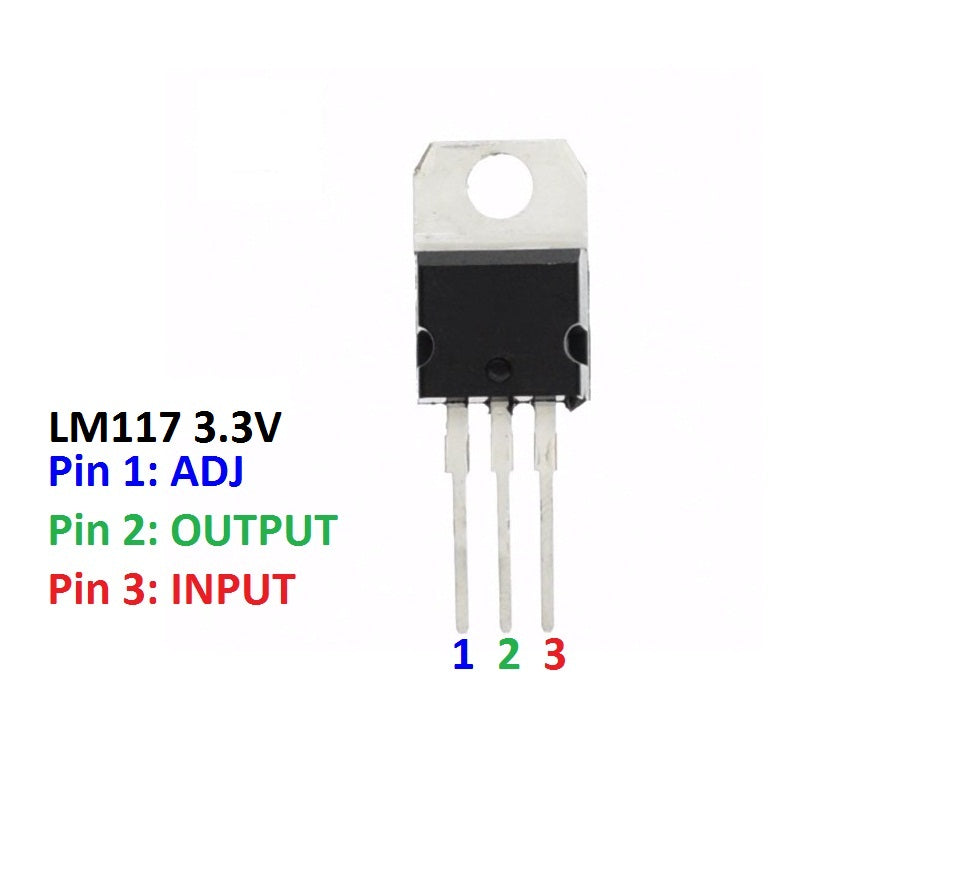

• Part No: LD1117V33
• Manufacturer: STMicroelectronics
• Output Voltage: 3.3 V
• Output Current: 950 mA
• Number of Outputs: 1 Output
• Polarity: Positive
• Quiescent Current: 5 mA
• Input Voltage, Min: 3.3 V
• Input Voltage, Max: 15 V
• Output Type: Fixed
• Line Regulation: 6 mV
• Load Regulation: 10 mV
• Pd – Power Dissipation: 12 W
• Operating Temperature: 0°C ~ 125°C
• Package/Case: TO-220-3

Package Includes:

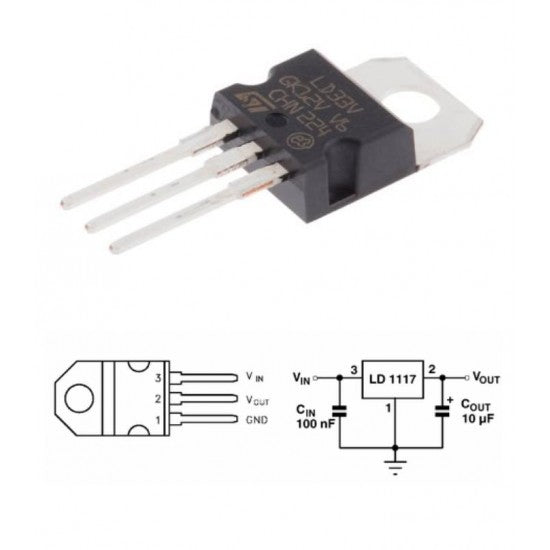

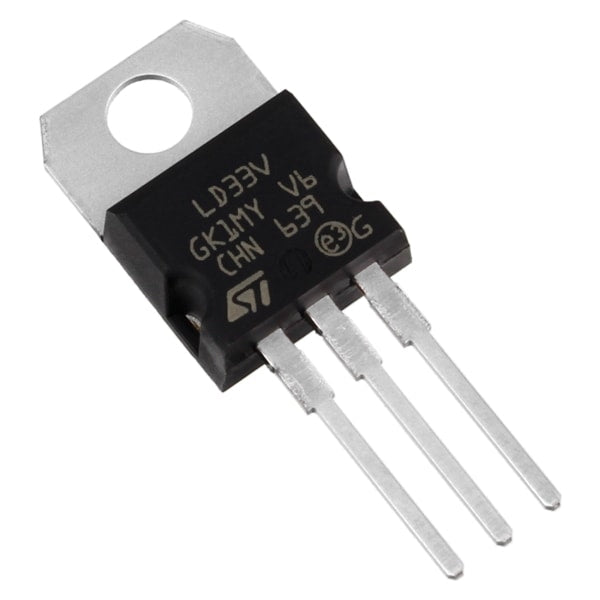

• 1 x 1117 3.3V Low Dropout Voltage Regulator IC – TO-220 Package
