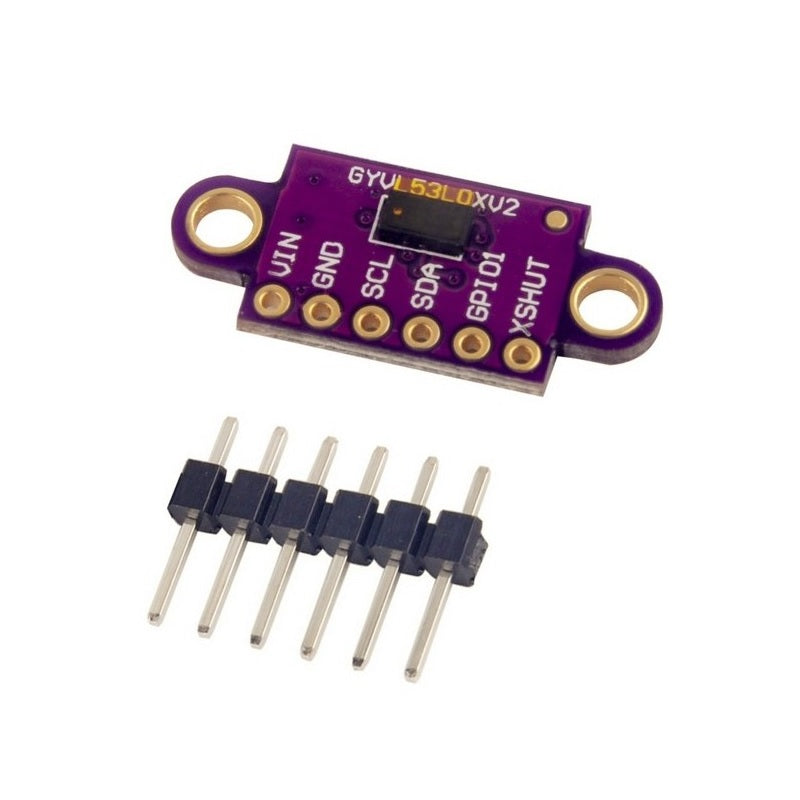

VL53L0/1XV2 Laser Ranging LIDAR Sensor Time of Flight TOF I2C
VL53L0/1XV2 Laser Ranging LIDAR Sensor Time of Flight TOF I2C
Couldn't load pickup availability
- VL53L0/1XV2 LASER Ranging Module – Time of Flight Distance Sensor
- Operating Voltage: 2.6V-3.5V
- Power Consumption: 20 mW @10Hz
- Measurement Range: 40 mm ~ 4,000mm
- Resolution: ±1 mm
- Light Source Class 1 940nm VCSEL
- Interface Type: I2C
VL53L0/1XV2 Laser Ranging Sensor Time-oF-Flight
Time of Flight Distance Sensor-VL53L0X is a high speed, high accuracy, and long range distance sensor based on VL53L0X. The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances, unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, and opening the door to various new applications. The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second-generation FlightSenseTM patented technology. The VL53L0X’s 940 nm VCSEL emitter (VerticalCavity Surface-Emitting Laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.
Features:
- Fully integrated miniature module
- Fast, accurate distance ranging
- Eye safe
- Easy integration
Features/Specs:
- Operating Voltage: 2.6V-3.5V
- Power Consumption: 20 mW @10Hz
- Measurement Range: 40 mm ~ 4,000mm
- Resolution: ±1 mm
- Light Source Class 1 940nm VCSEL
- Interface Type: I2C
- I2C Address: 0x29
- Field of View: 15° – 27°
- Max Read Rate: 50Hz
- Length: 10 mm
- Width: 25 mm
- Height: 4 mm
- Approx Weight: 2 gm
Application:
- User detection for personal computers/ laptops/tablets and IoT (energy saving)
- Robotics (obstacle detection)
- White goods (hand detection in automatic faucets, soap dispensers etc.)
- 1D gesture recognition.
- Laser assisted autofocus. Enhances and speeds up camera autofocus system performance, especially in difficult scenes (low light levels.
Package Includes:

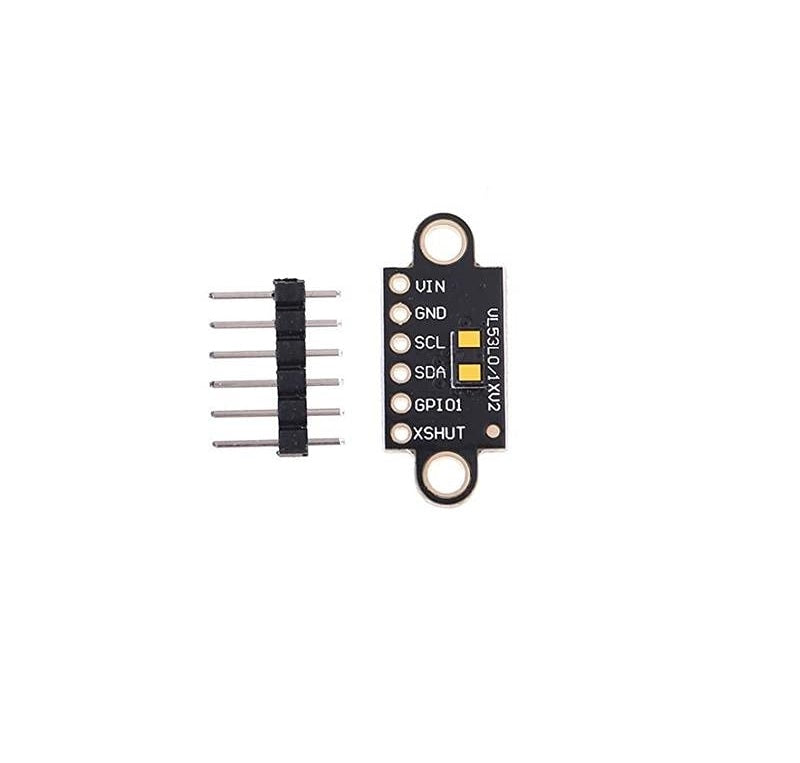

- 1 x VL53L0/1XV2 Laser Ranging Sensor Time-oF-Flight
Note: Product Images are shown for illustrative purposes only and may differ from the actual product
