S3003 Futaba Servo Motor-180 degree
S3003 Futaba Servo Motor-180 degree
Regular price
Rs. 269.00
Regular price
Sale price
Rs. 269.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
- Stall Torque (6.0V): 4.1 kg.cm,
- Stall Torque (4.8V): 3.2 kg.cm
- Operating Voltage: 4.8-6.0 Volts,
- Operating Speed (6.0V): 0.19sec/60 degrees at no load,
- Operating Speed (4.8V): 0.23sec/60 degrees at no load
- Control System: +Pulse Width Control 1520usec Neutral

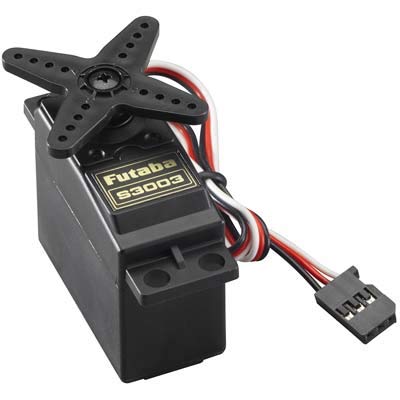

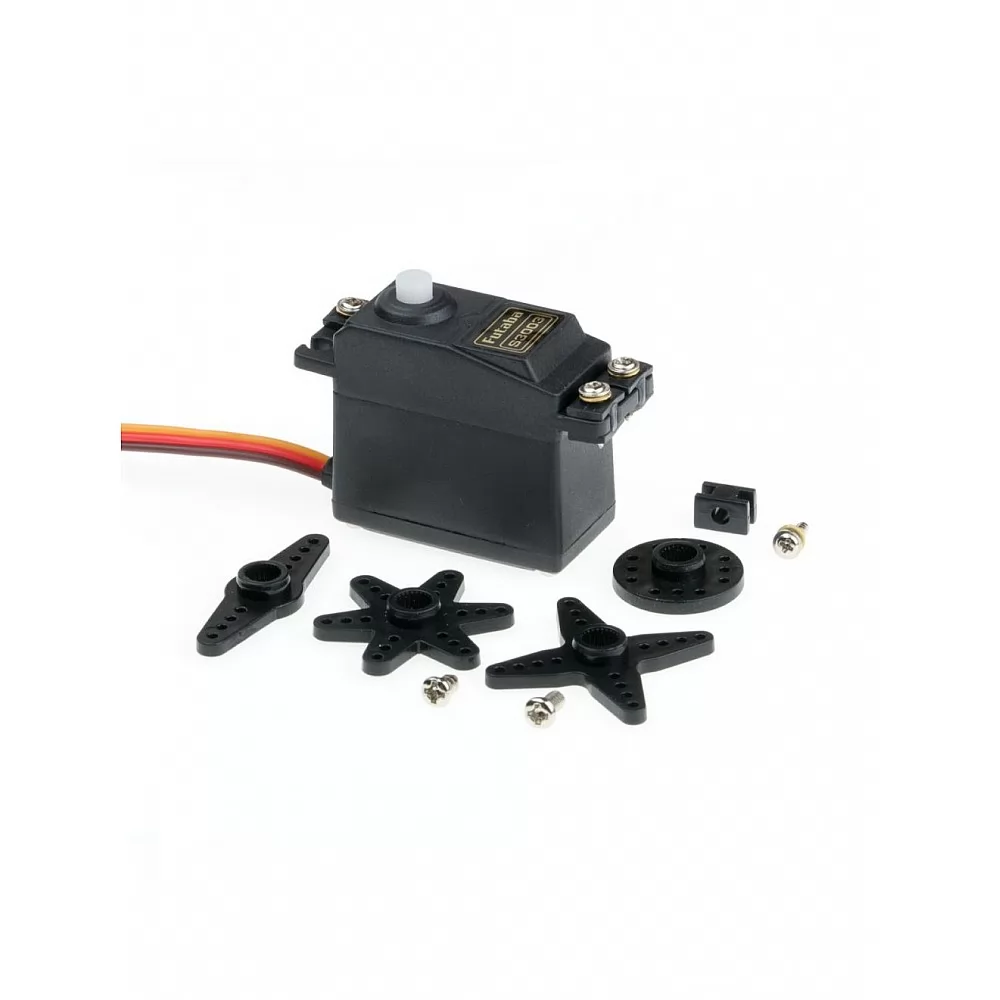

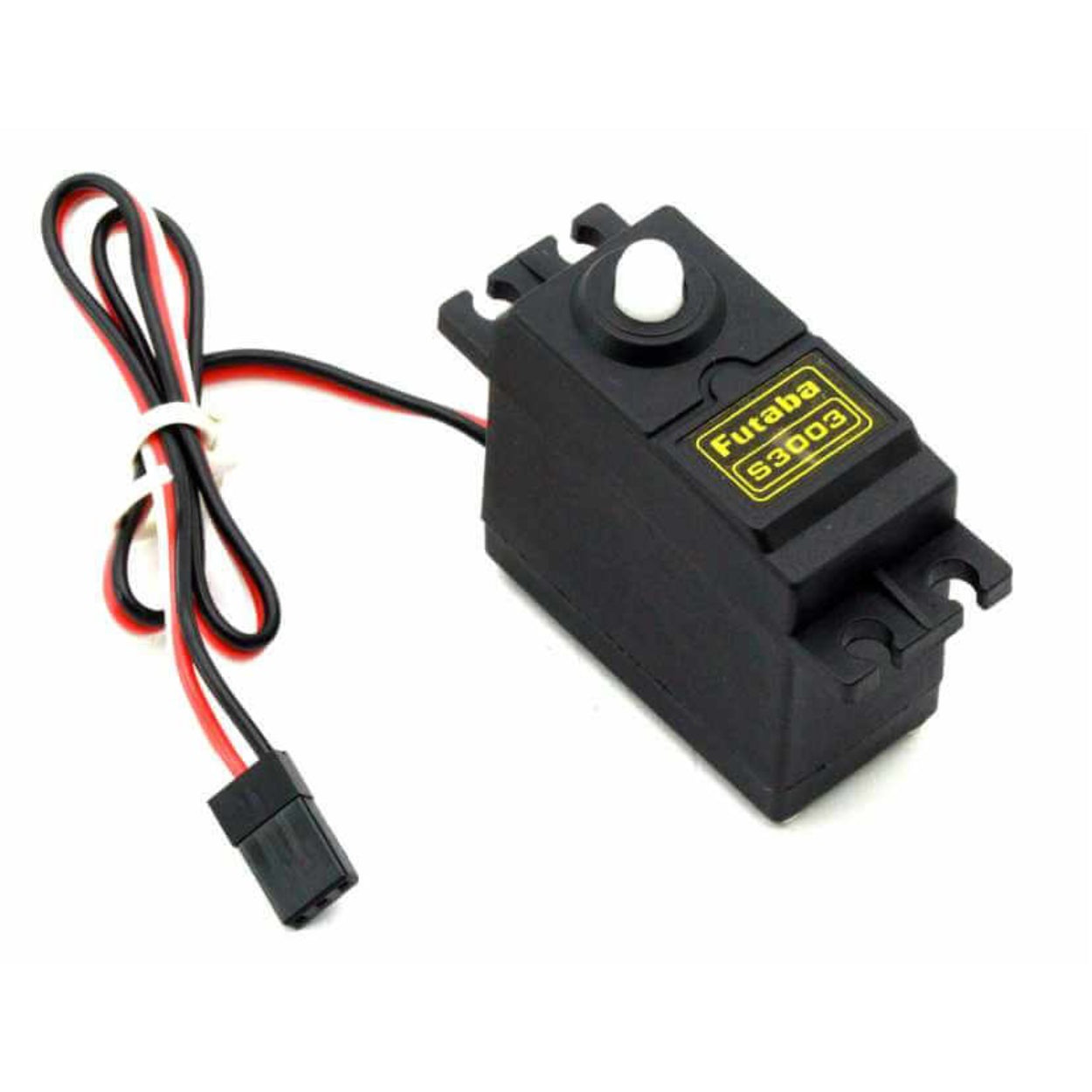

This is the Futaba S3003 Standard Servo. This basic servo is used in cars, boats, or where standard servos are used. This is the replacement for the following servos, S138,S148,S22,S38 and S12. This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps. INCLUDES One S3003 standard servo with preinstalled X shape servo horn Four brass eyelets Four Black rectangular rubber grommets (FUTM2348) Four servo mount screws One servo wheel 1-3/8" (35mm) in diameter One X-shape servo arm 1.5" (38mm) across One star shaped arm 1-1/4" (32mm) across Nylon gears
Shipping & Returns
Shipping & Returns
- Shipping Time:- Our orders are shipped within 24 Hours.
- Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
- Shipping Partner:- Bluedart, Delhivery, Xpressbees, & India Post.
- Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
- Return:- Item mismatch or parts missing etc.
- No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
- We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
