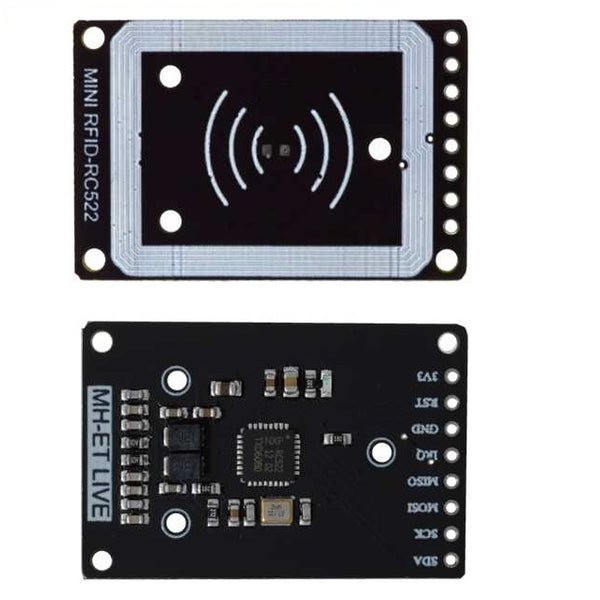

RC522 Mini RFID Reader / Writer SPI S50 with RFID Card and Tag
RC522 Mini RFID Reader / Writer SPI S50 with RFID Card and Tag
Regular price
Rs. 139.00
Regular price
Sale price
Rs. 139.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Specs:
- Working current: 13-26mA/DC 3.3V
- Idle current: 10-13mA / DC 3.3V
- Sleep current: <80uA Peak current: <30mA
- Working frequency: 13.56MHz
- Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
Product physical characteristics
- Size: 37.5mm × 33mm
- Environmental working temperature: -20-80 degrees
- Celsius Environmental storage temperature: -40-85 degrees
- Celsius Relative humidity: 5%-95% relative humidity

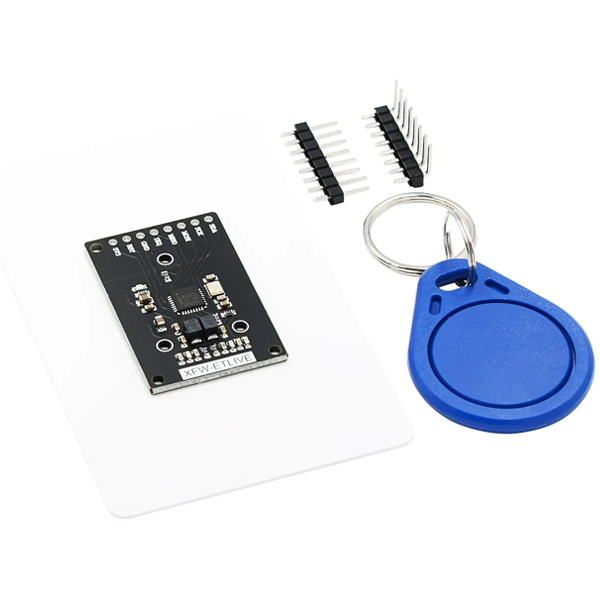

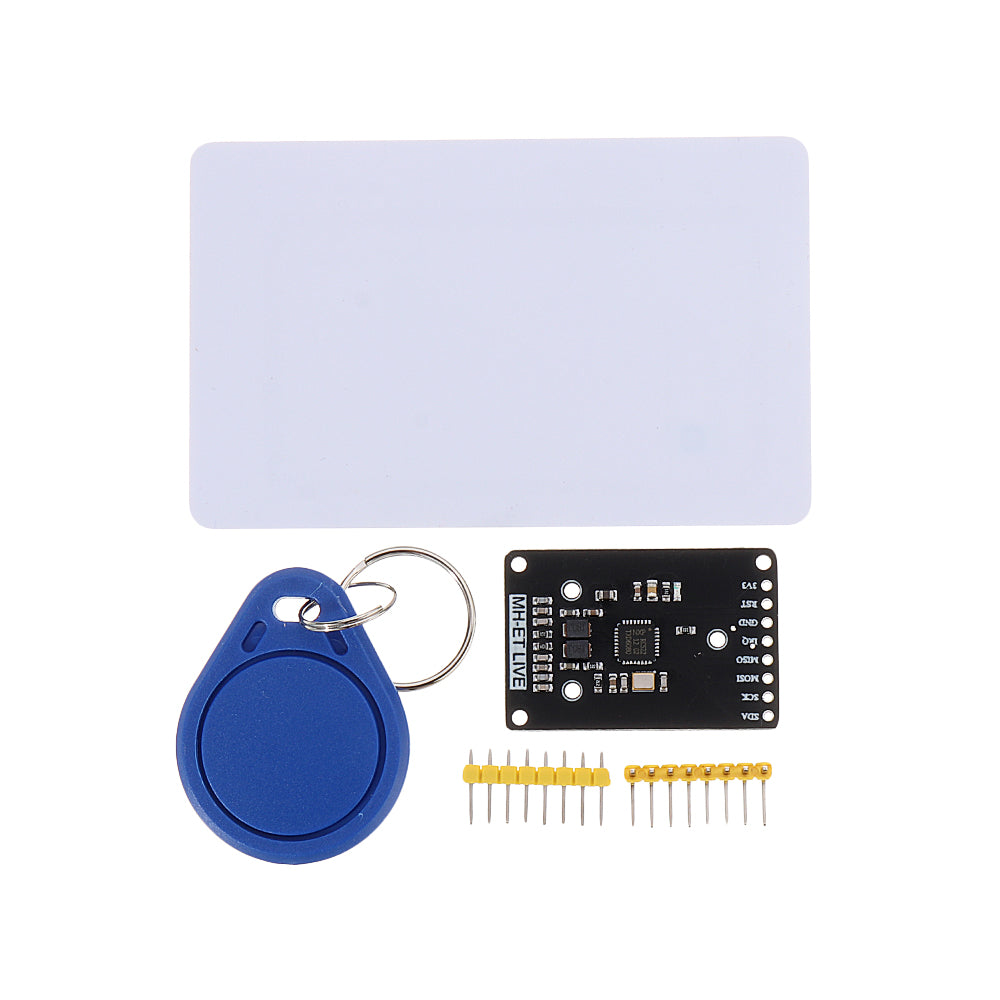

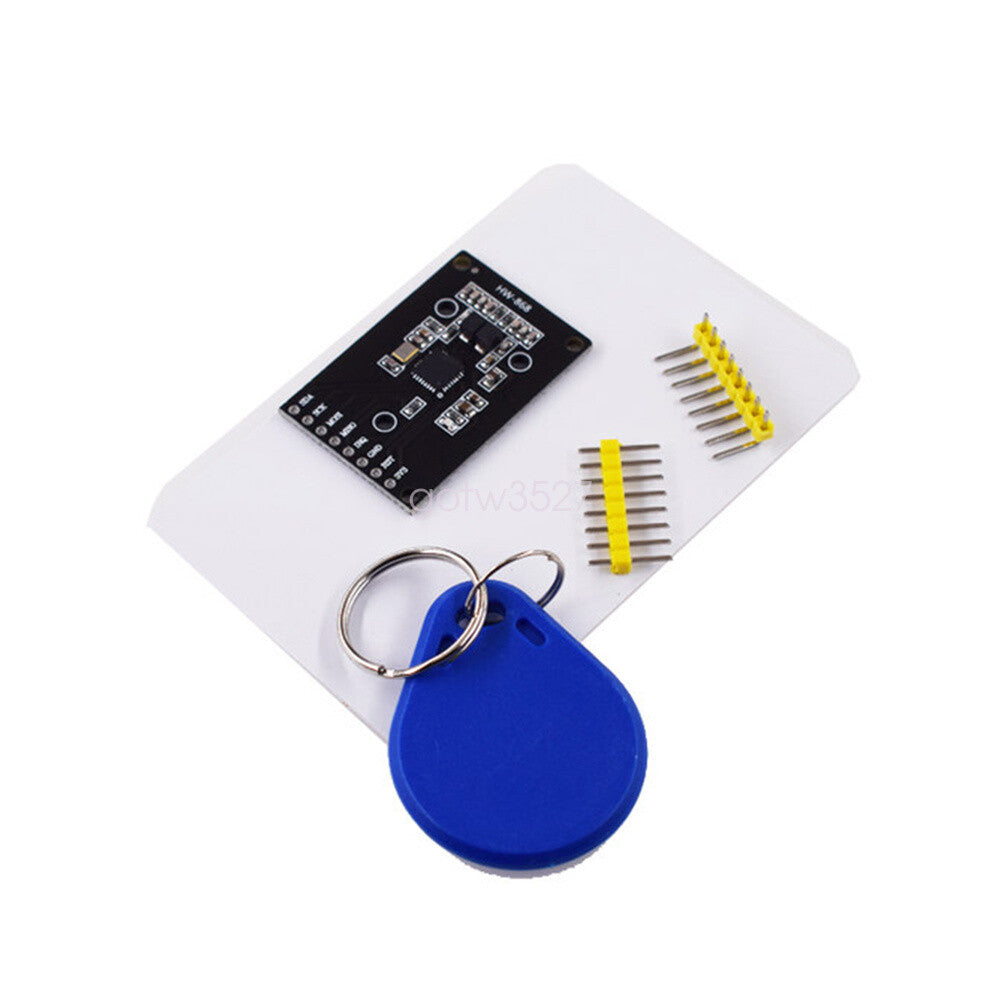

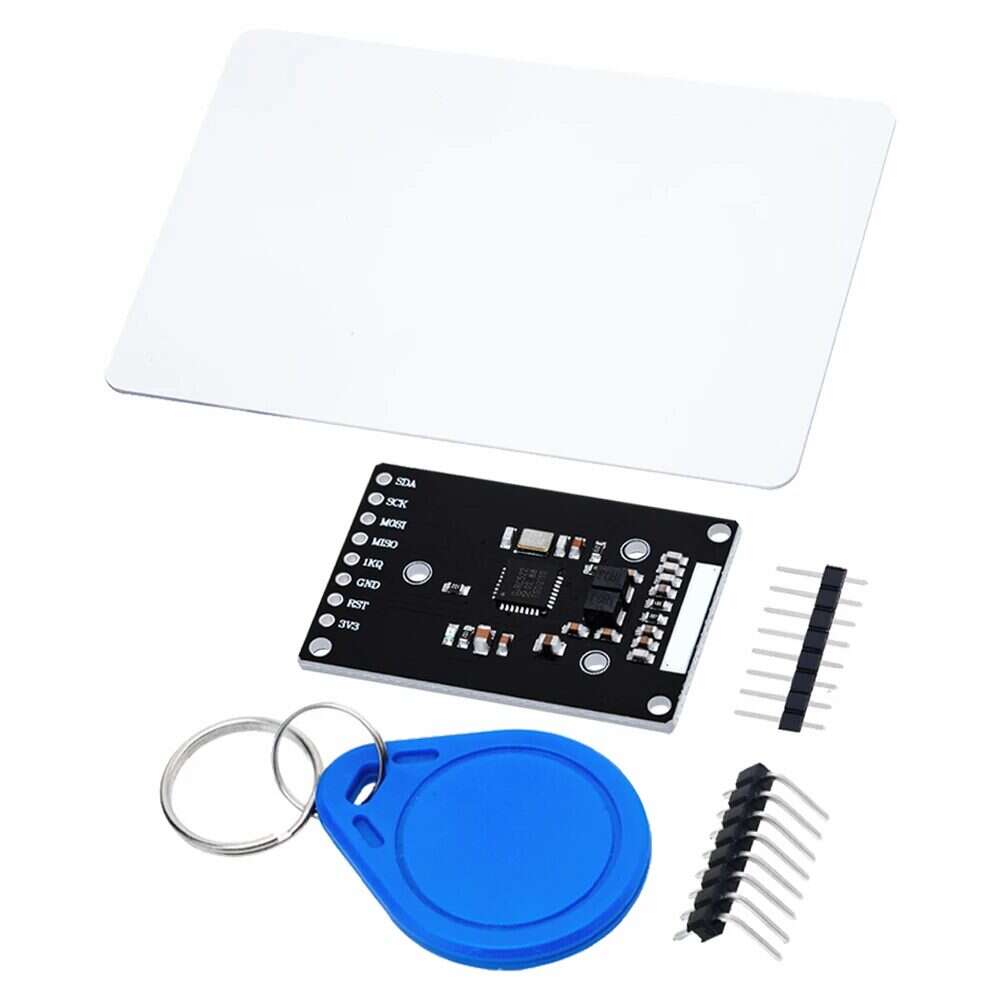

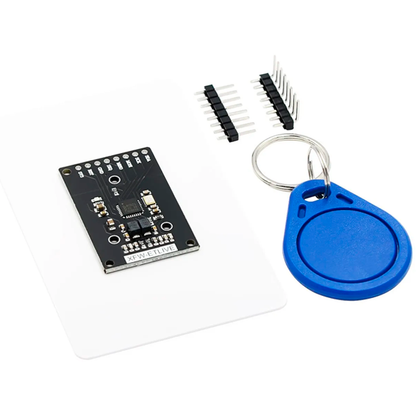

Package includes:
- 1 x RC522 MINI module
- 1 x RFID tag
- 1 x RFID Card
- 1 x Straight header strip
- 1 x Bent header strip
