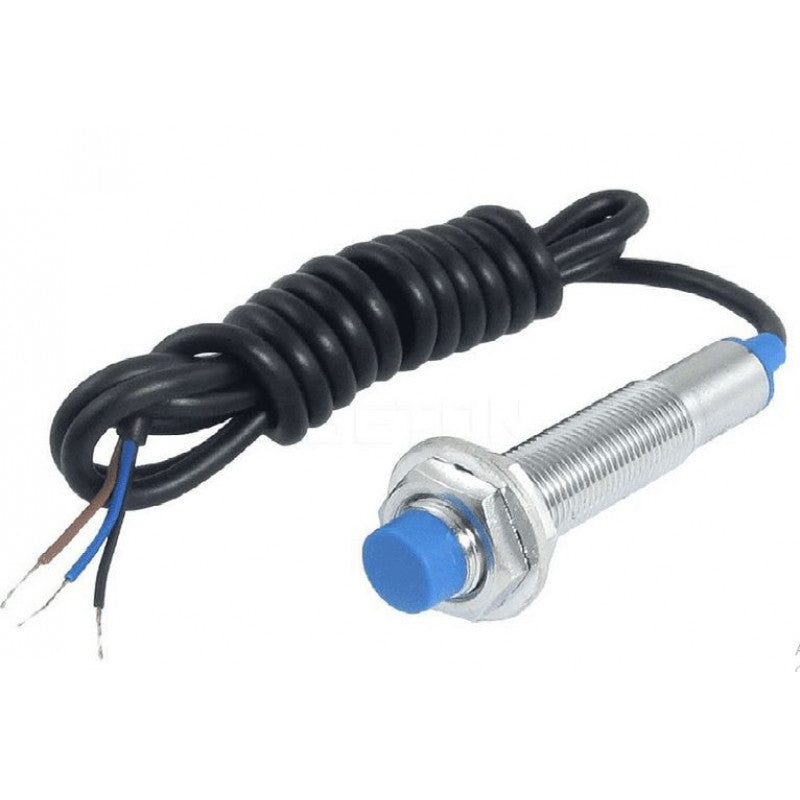

LJ12A3-4-Z/BX NPN NO Tube Type Inductive Proximity Sensor Detection Switch NPN DC 5-36V 4mm Normally Open switch

• Output Type: NPN-NO
• Input Voltage: 5-36v DC
• Red LED checks the state of the proximity sensor
• High repeated positioning accuracy
• High switching frequency
• Wide voltage range
• Antivibration, dust, water and oil prevention
• Reverse power protection, short circuit protection, directly connecting with PLC
• Can replace small switches and limit switches

This Tube Type Inductive Proximity Sensor Detection Switch NPN DC6-36V 4mm Normally Open switch LJ12A3-4-Z/BX is a component widely used in automatic control industry for detecting, controlling, and non-contact switching. When the proximity switch is close to some target object, it will send out control signal. When the metal approaches near-proximity switch sensing area, an Edy Current is induced in metal. Which in turn disturbs the magnetic field produced by the Inductive Proximity Sensor. This change is sensed by the sensor. This inductive proximity switches can be non-contact, no pressure, no spark, quickly issued the electrical command. Accurately reflect the position and the stroke movement mechanism. Positioning accuracy, operating frequency, service life. Easy to install and suitable for harsh environments. This 4mm proximity sensor can detect a variety of metals, miniature size, long life, low price, shielded type installation, anti-interference ability, 1mm detection distance, using for precise positioning of molds, precision machine tools, and robots.

Features :-

• Red LED checks the state of the proximity sensor
• High repeated positioning accuracy
• High switching frequency
• Wide voltage range
• Outer (Thread) Diameter: M12
• Antivibration, dust, water and oil prevention
• Reverse power protection, short circuit protection, directly connecting with PLC
• Can replace small switches and limit switches

* Product Images are shown for illustrative purposes only and may differ from actual product.
