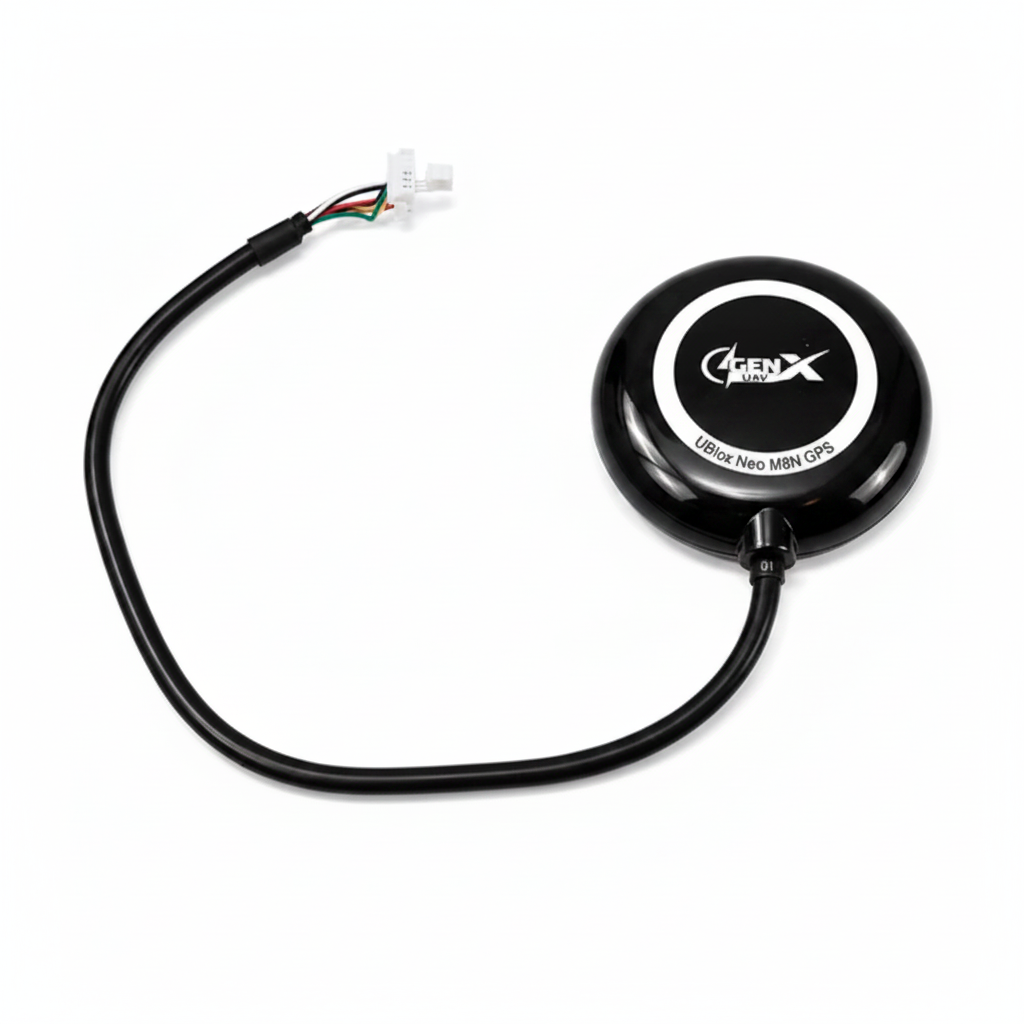

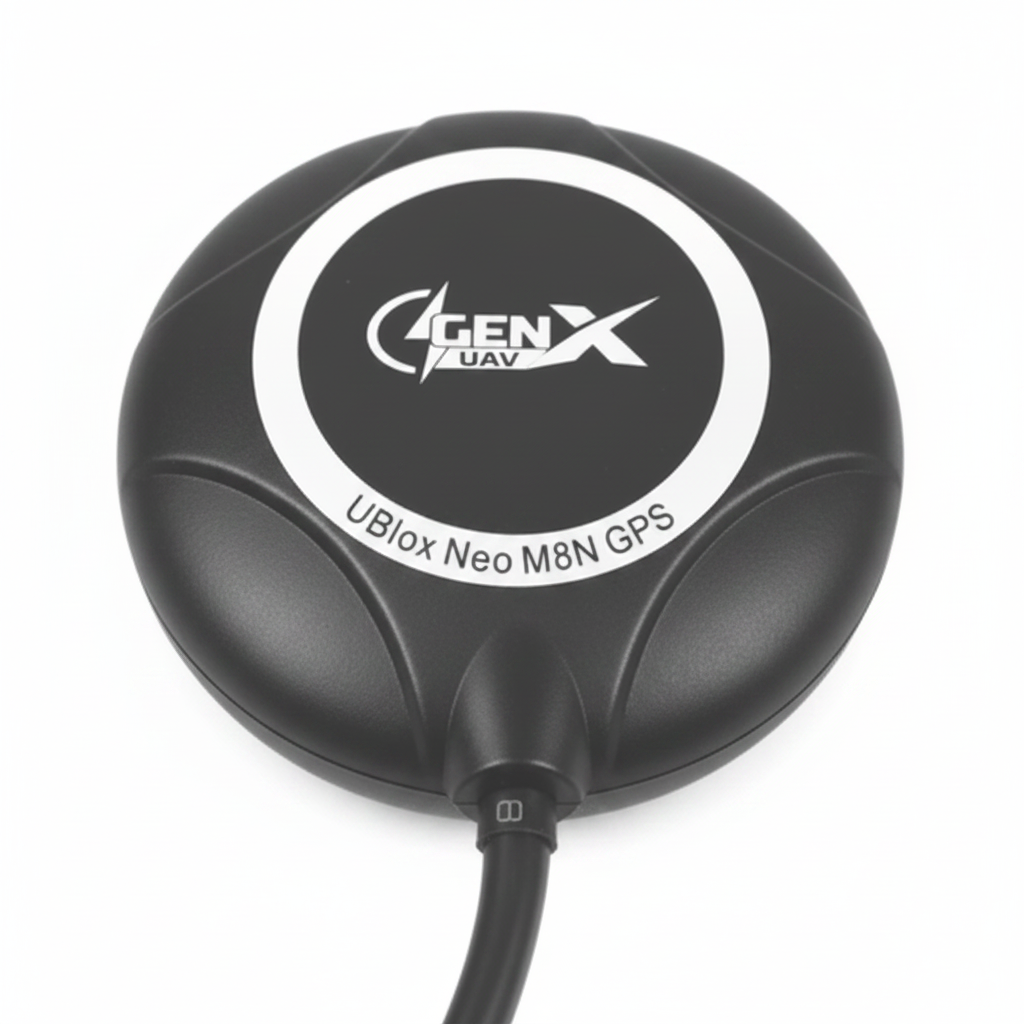

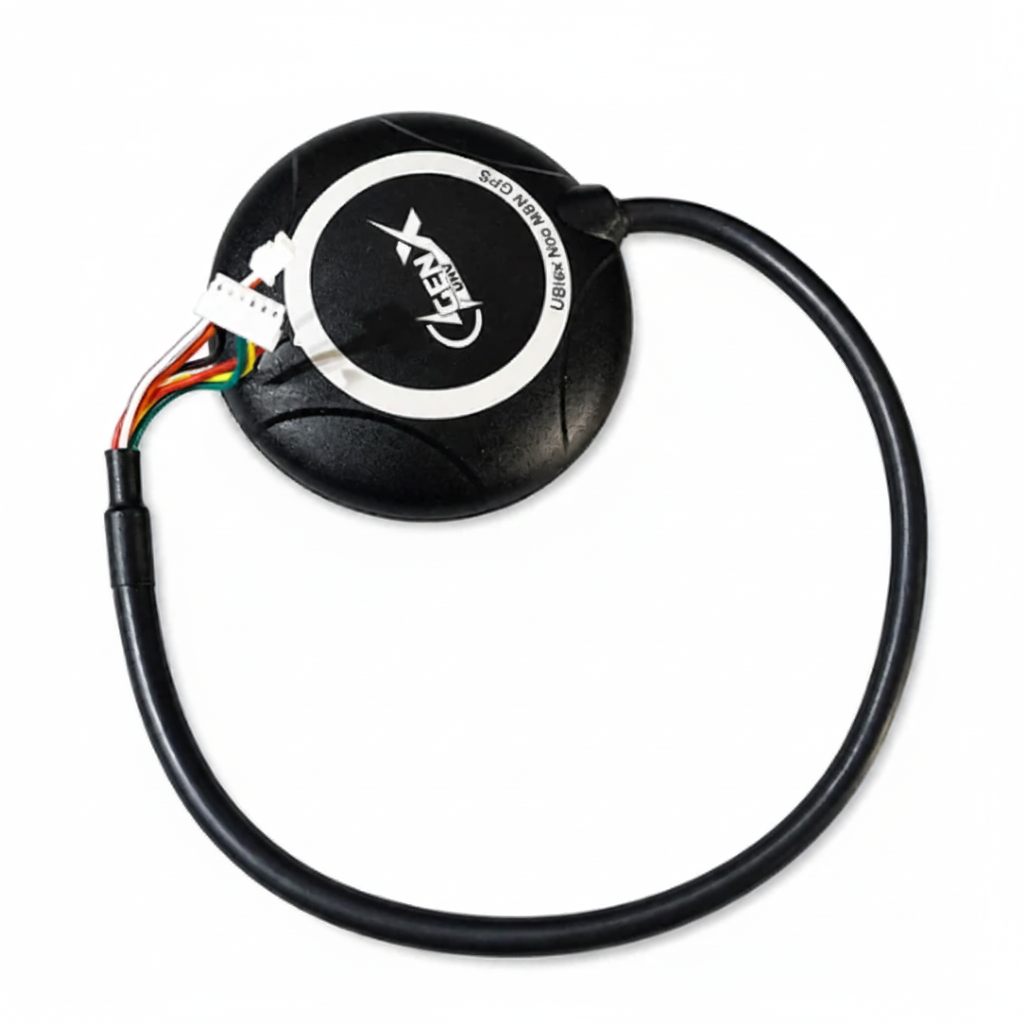

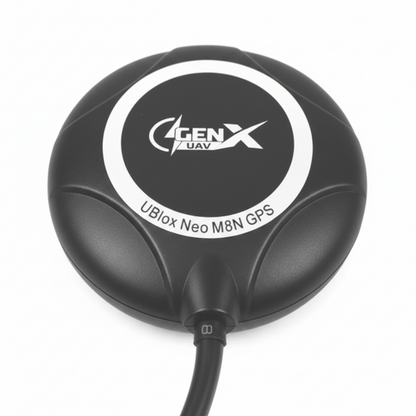

Genx NEO-M8N GPS Module with Compass for Pixhawk flight controller

Rs. 1,799.00
Rs. 1,799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Dispatched in 24 hrsExcept Sundays and public holidays
  • GST invoiceInput tax credit for businesses
  • ReplacementFor transit damage or wrong item
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI Mastercard VISA
SSL Encrypted
256-bit Encryption
Features
  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (NEO-M8N)
  • Onboard Compass
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (NEO-M8N/Q),
  • Crystal (NEO-M8M)
  • RTC crystal Built-In
  • Noise figure On-chip LNA (NEO-M8M). Extra LNA for
  • lowest noise figure (NEO-M8N/Q)
  • Anti-jamming Active CW detection and removal. Extra
  • onboard SAW bandpass filter (NEO-M8N/Q)
  • Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time (NEO-M8N)
The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems.

Genx NEO-M8N  GPS Module with Compass for Pixhawk flight controller with Case and GPS Antenna Mount to protect the GPS preventing electromagnetic interference. A new generation Genx GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.

Shipping & Returns

  • Shipping Time:- Our orders are shipped within 24 Hours.
  • Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location
  • Shipping Partner:- Bluedart, Delhivery, Xpressbees, & India Post.
  • Replacement:- Damaged During Transit, Missing Parts Or Item Mismatch.
  • Return:- Item mismatch or parts missing etc.
  •  No return/Replacement will apply if the Product has been subject to misuse, static discharge, neglect, accident, modification, or has been soldered or altered in any way.
  • We accept no responsibility for improper installation of our products. Electrical polarity must be properly observed in hooking up electrical components.
