1. Contact Rating: 10 W.
2. Switching Voltage: 220 V.
3. Switching Current: 0.5 A.
4. Breakdown Voltage: 220 VDC.
5. Carry Current: 1 A.
6. Contact Resistance: 100 mΩ.

Features:

• The maximum switch current of the float is 0.5A and the switch voltage of 100V DC.

• The temperature rating is about 10-85 degrees centigrade.

• The power rating of this sensor is about 10W.

• The entire body of this sensor is made up of plastic.

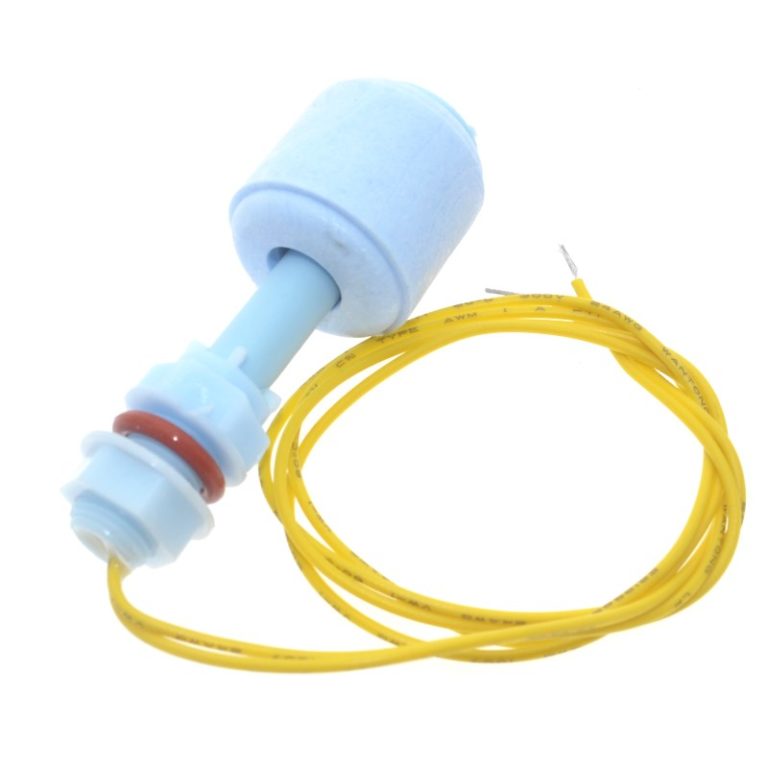

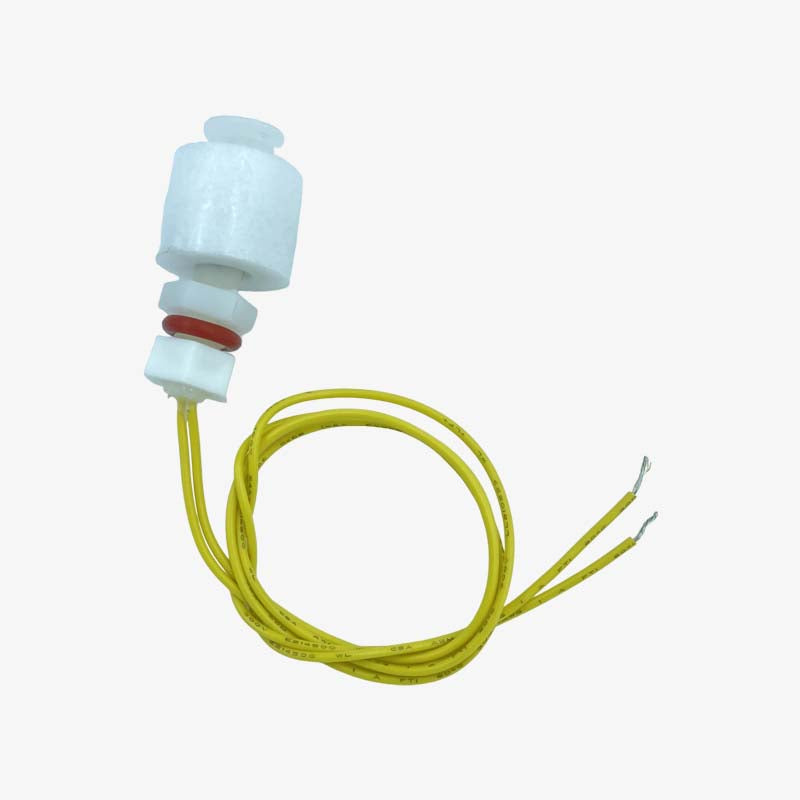

The float sensor consists of an electromagnetic switch. It operates just like any other switch. Here a Magnetic reed switch is placed in the stem of the sensor. A magnet will be in the bulb structure of float sensor. When water fills up in a reservoir the bulb structure which has the magnet starts moving up once water reaches a certain level. It moves up close to stem near the reed switch. Due to the force of attraction from this magnet reed switch closes indicating

water level is high.

When the water level goes down the bulb moves down and reed switch contact breaks and by this way the system detects that water level has gone down and acts accordingly.

• The maximum switch current of the float is 0.5A and the switch voltage of 100V DC.

• The temperature rating is about 10-85 degrees centigrade.

• The power rating of this sensor is about 10W.

• The entire body of this sensor is made up of plastic.
