Digital Light Sensor Module BH 1750

Rs. 219.00 Rs. 499.00

All Prices Incuding GST

No Hidden Charge

All Price are including GST & other applicable Taxes, For B2B Please update your GSTIN Number

Local Pickup

Estimated time to pack : 15 Mins.

11 AM- 7 PM

Order can be pickup from our Store Located in Jayadev Vihar Square, Bhubaneswar, Odisha

Fast Delivery

Same Day Dispatch.

Shipping Charge Flat-70/-

Delivery Time:- 2-5 Days (Anywhere in India), 7-10 Days for remote location

Bulk Purchase

Get Attractive Discount on Bulk
Whatsapp Support @+917749850441

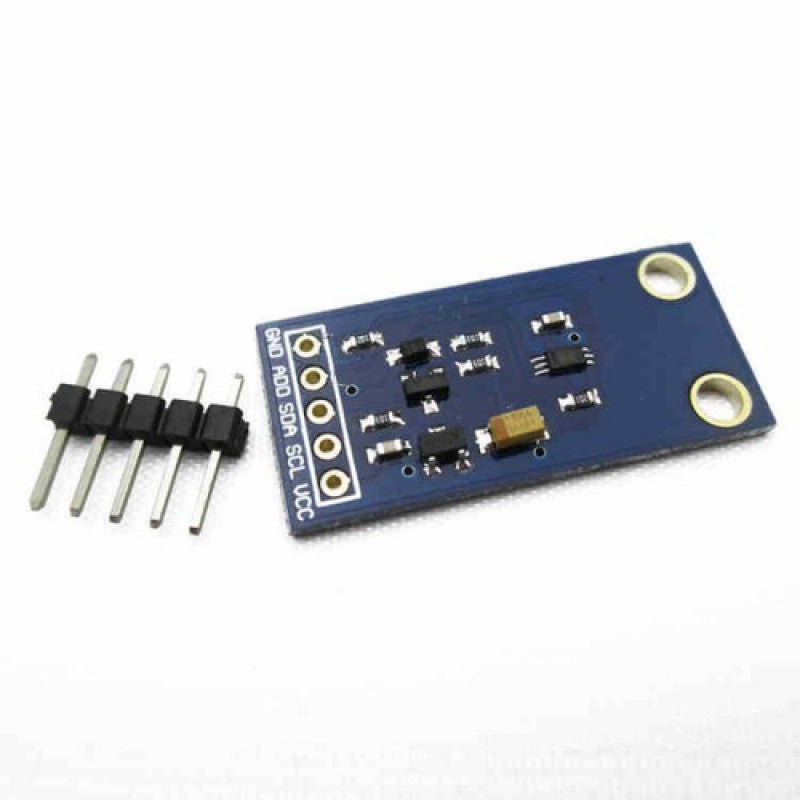

Digital Light intensity detection module: GY-30 Chip : BH1750FVI
Power supply: 3V-5V power
Light range 0-65535 lx
Sensor built-in : 16 bitAD converter
Direct digital output, bypassing the complex calculation, bypassing the calibration
Don't distinguish between ambient light
Close to the spectral characteristics of visual acuity
widely use to 1-lux high precision measurement
Standard NXP I2C communication agreement
Low Current by power down function * 50Hz / 60Hz Light noise reject-function
Light source dependency is little. ( ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light)
Small measurement variation ( /- 20%).


--

BH1750 module is a digital ambient light sensor, IIC I2C communication. Good for arduino light detection. It is a light intensity sensor breakout board with a 16 bit AD converter built-in which can directly output a digital signal, there is no need for complicated calculations. This is a more acurate and easier to use version of the simple LDR which only outputs a voltage that needs to be calculated in order to obtain meaningful data. With the BH1750 Light Sensor intensity can be directly measured by the luxmeter, without needing to make calculations. The data which is output by this sensor is directly output in Lux (Lx). When objects which are lighted in homogeneous get the 1 lx luminous flux in one square meter ,their light intensity is 1lx. Sometimes to take good advantage of the illuminant, you can add a reflector to the illuminant.So that there will be more luminous flux in some directions and it can increase the ilumination of the target surface.
