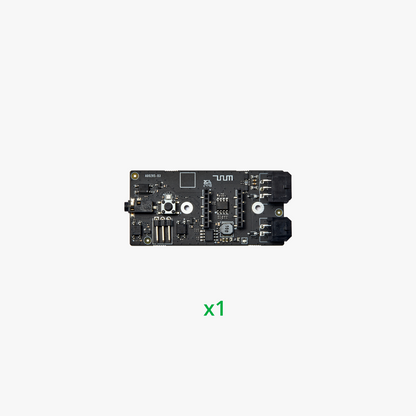

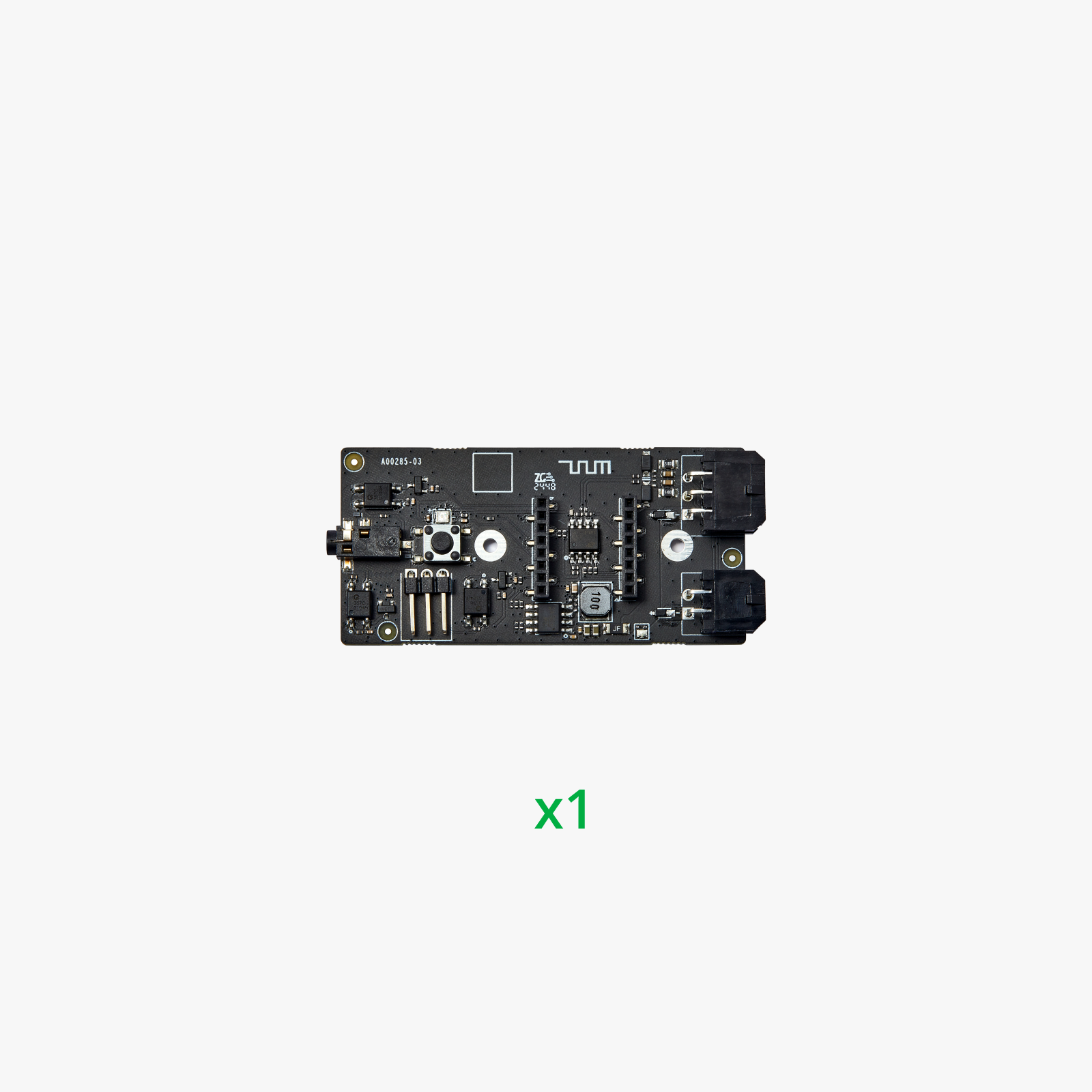

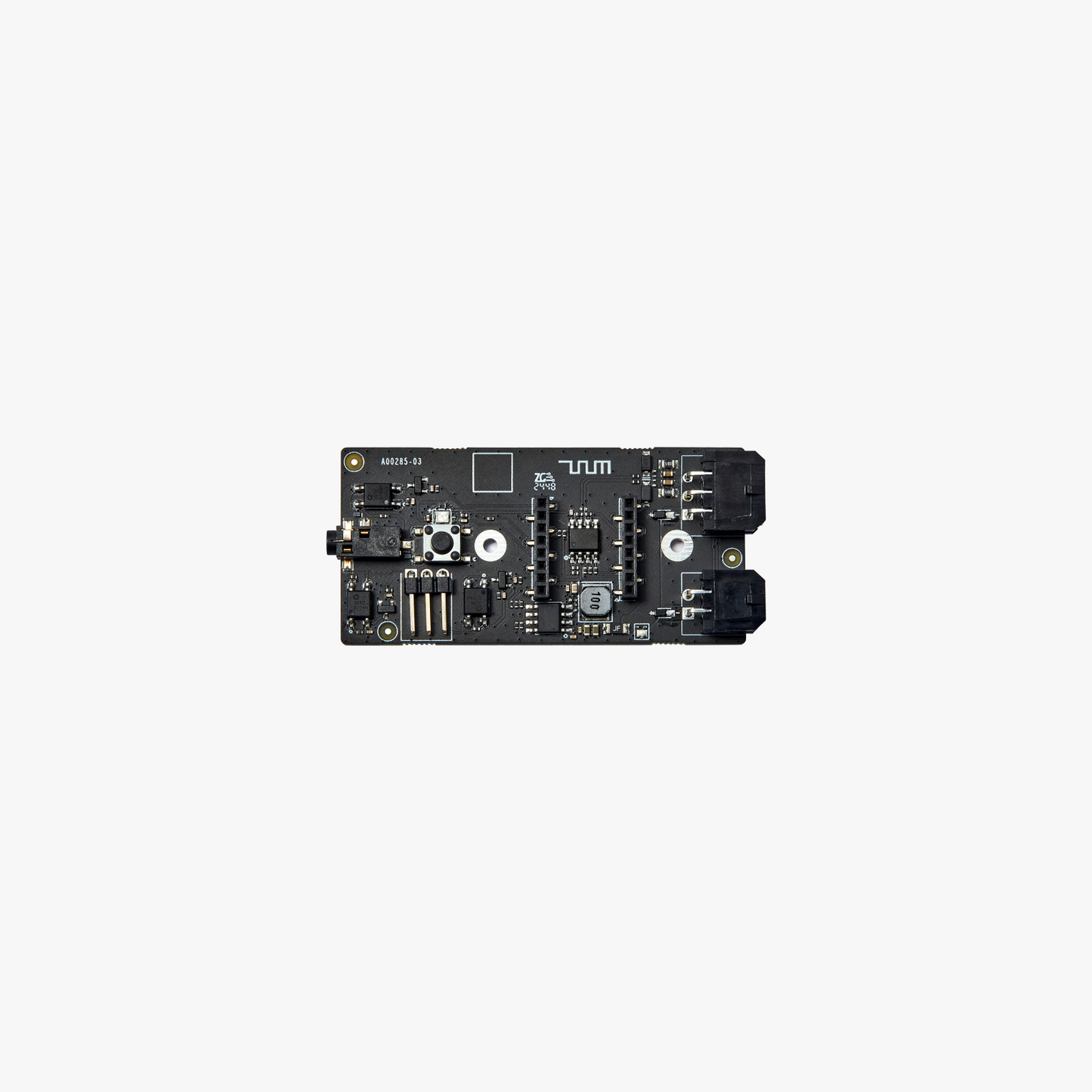

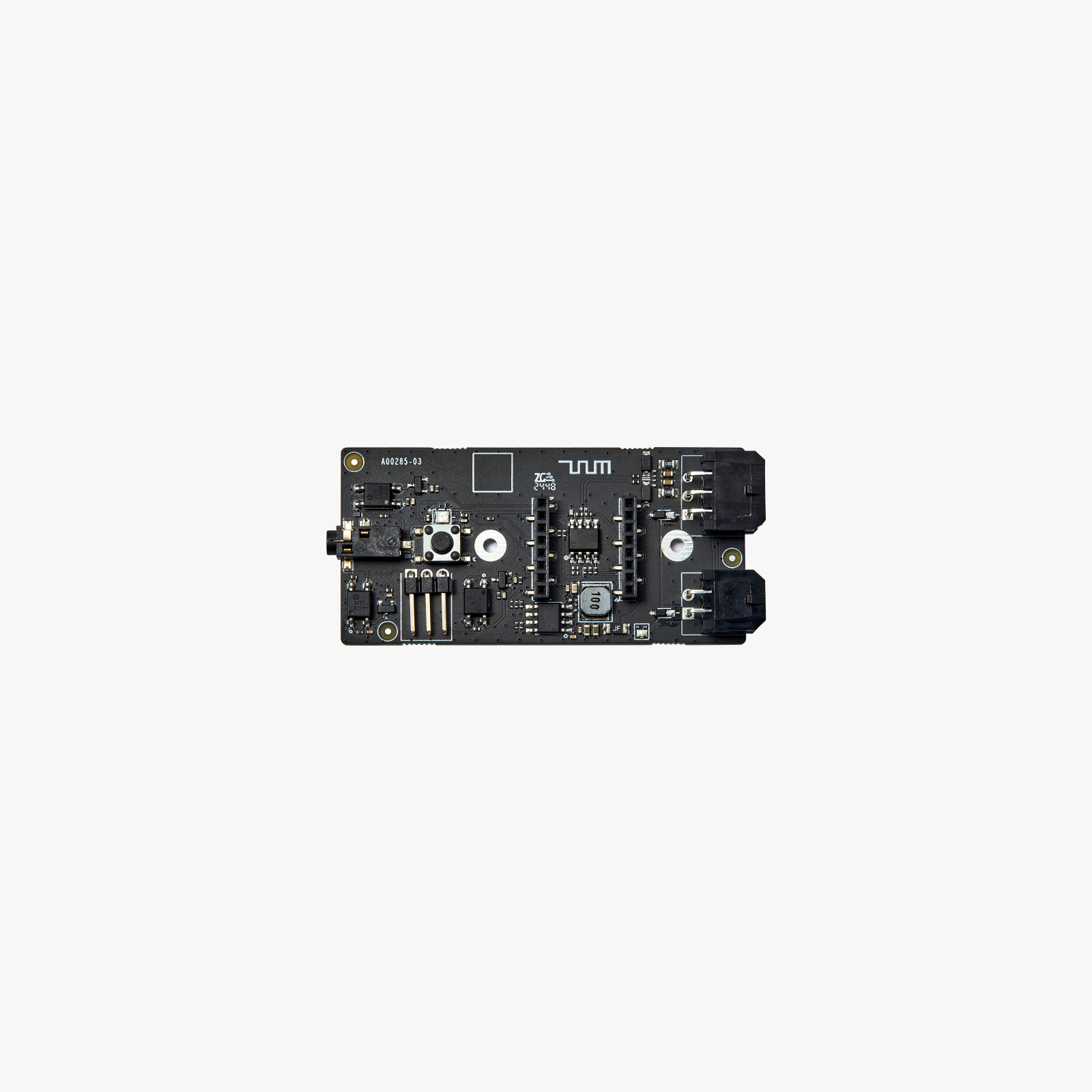

Bambu CyberBrick Expansion Board Only (XA015)
- Make: Bambu Lab
- Model: XA015
-
Compatible Model: Need to Buy Cable Separately
- For H2 / P1 / X1 Series: 510mm 6 Pin Cable (If AMS connected)
- For H2 / P1 / X1 Series: 260mm 4 Pin Cable (without AMS)
- For P2S: 510mm 6 Pin Cable (Requires a P2S AMS Buffer)
- X2 / A2 Series: 510mm 6 Pin Cable
- For A1: 260mm 4 Pin Cable
- CyberBrick Time-Lapse Hardware Kit (ZK005)

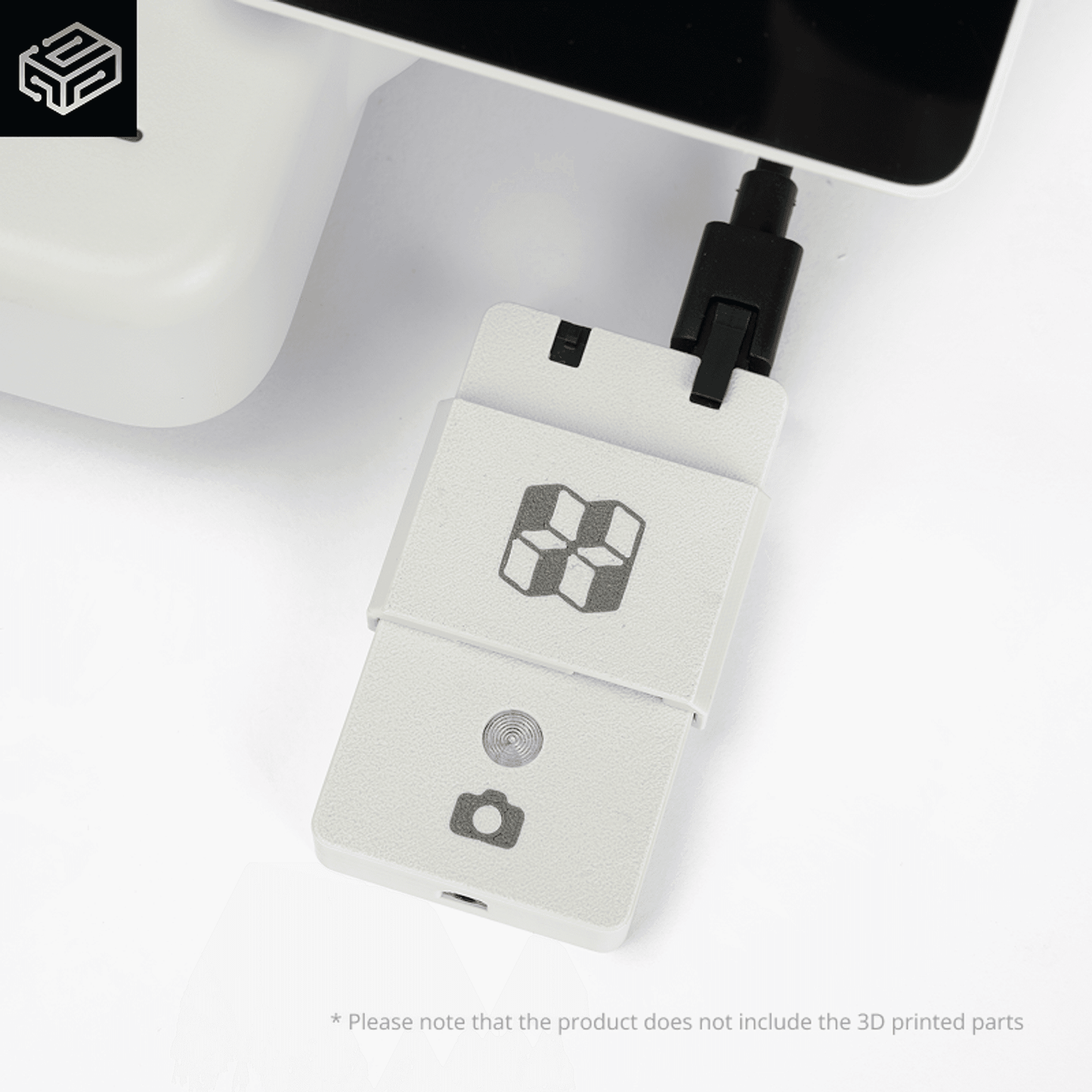

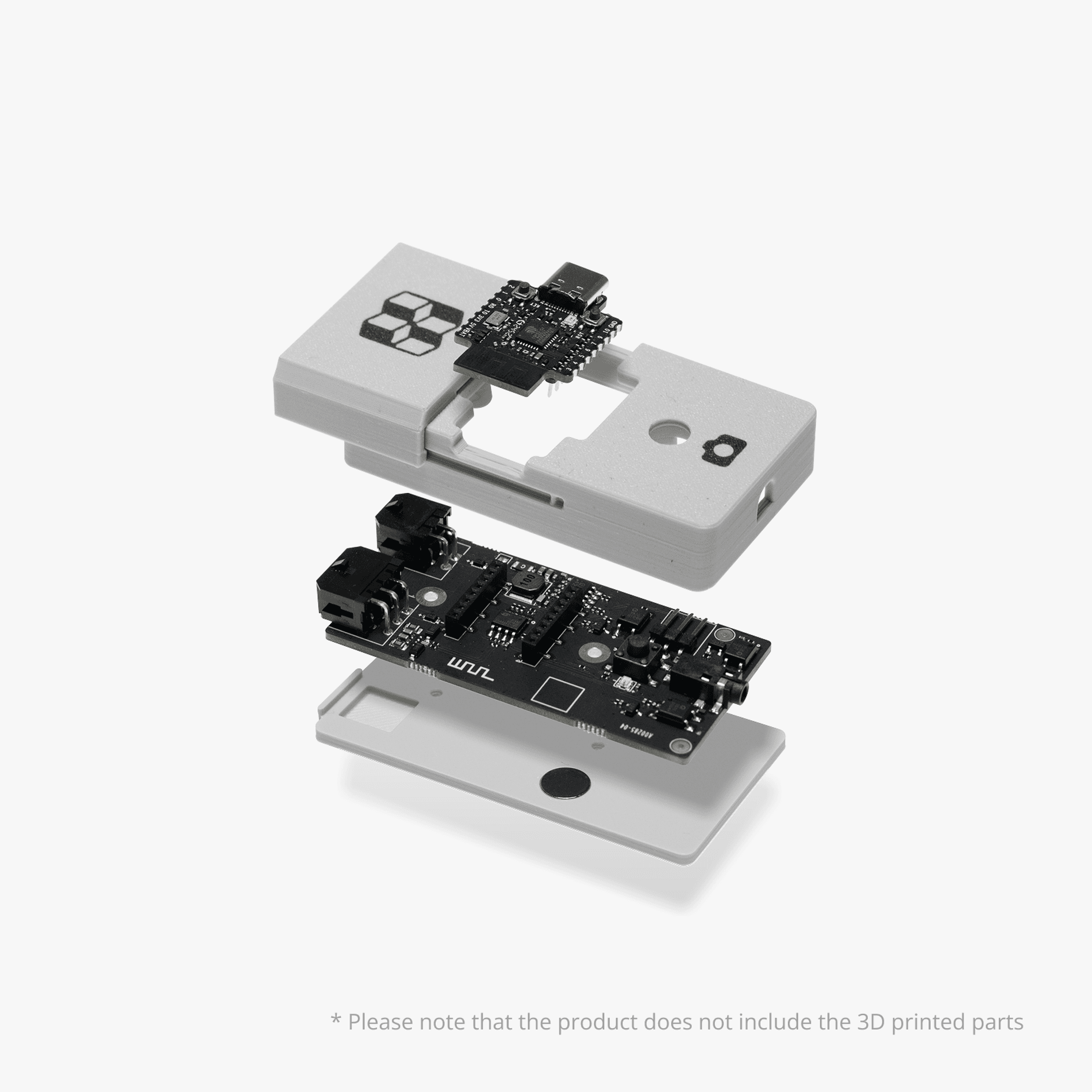

*Please note that the product does not include the 3D printed parts as shown in the main image.
*For P2S Users who don't already have an AMS connected, you will need to purchase the P2S AMS Buffer to use the product
This kit includes a Multi-Function Core Board and a Time-lapse Trigger Expansion Board. Just install the core board onto the expansion board, connect it to your printer with the Bambu Bus cable, and follow the wiki to quickly pair your camera. The core board comes preloaded with the required firmware, so you can start time-lapse photography right away.
Visit our official Wiki to discover comprehensive resources and answers to all your questions.
Product Specification
| Item Number | Component | Description |
| 1 | 4-Pin interface | Connect the printer 4pin interface |
| 2 | 6-Pin interface | Connect to AMS 6pin interface |
| 3 | 2.5mm shutter cable interface | Connect the camera shutter cable and control the camera shutter |
| 4 | Multi-function buttons & Indicator lights | Connection, Debugging, Light language |
| 5 | Servo connection | Connect to the servo to simulate button operation and control shutter release |
| 6 | Multi-Function Core Board access | Plug-in Multi-Function Core Board |
| 7 | Orientation marks | Ensure proper installation alignment |
Complete Step-by-Step Assembly & Setup
Bluetooth Compatibility List
*The compatibility list is for reference only. Please verify compatibility with other brands/models yourself.
| Android | Requires Android 12 or later |
| iOS | Requires iOS 16 or later |
| HarmonyOS | Requires HarmonyOS 4.2.0 or later |
| SONY | α7C2 / α7M4 / α7R5 / FX30 / α6700 |
| Canon | EOS R7 / EOS R6 / EOS R50 |
| Nikon | Z30 / Z6II |
Documentation
Frequently Asked Questions
1. Can't pair with "BBL_SHUTTER" device?
Please delete the paired "BBL_SHUTTER" device information from your phone and try pairing again.
2. Can't the camera find the "BBL_SHUTTER" device?
If another device occupies the Bluetooth port, it may cause the Bluetooth connection to not be retrieved. Please disconnect the time-lapse photography kit from the printer for 2 seconds and then reconnect.
3. Can't establish a Bluetooth connection with the paired time-lapse photography kit after restarting the camera?
Press and hold the multifunction button for 2 seconds to try to reconnect the previously paired device. If you still can't connect, delete the camera pairing information and pair it again.
4. Both the camera and the time-lapse photography kit have been powered off. The kit cannot be automatically connected after the camera is turned on?
Press and hold the multifunction button for 2 seconds to reconnect the previously paired device.
5. Frame dropping phenomenon occurs in the synthesized time-lapse photography video?
iOS device may miss files during photo transfer, please reconnect your phone to your computer to ensure that all photos are copied.
6. How many shooting devices can be controlled at the same time?
Supports up to 4 devices: connect 1 smartphone and 1 camera via Bluetooth, 1 camera via shutter cable, and 1 camera via mechanical servo.
7. Why is it recommended to use the official cable to connect the kit with the printer?
This can avoid the time-lapse photography function not working due to invalid connection between devices to the greatest extent.
Important Notices
- For security and stability, the CyberBrick Multi-Function Core Board only supports firmware updates through official tools. Flashing with third-party tools is not supported and may cause irreversible damage, which is not covered by warranty. Please use only official tools for any firmware operations. Thank you for your understanding!
- If you have purchased the time-lapse photography shield and are using it together with the Cyberbrick core board, please refer to the wiki to flash the time-lapse photography firmware.
- The company is not responsible for any device damage, malfunction, fire, or other losses resulting from failure to comply with the above requirements. Please strictly follow the safety instructions for this product.
