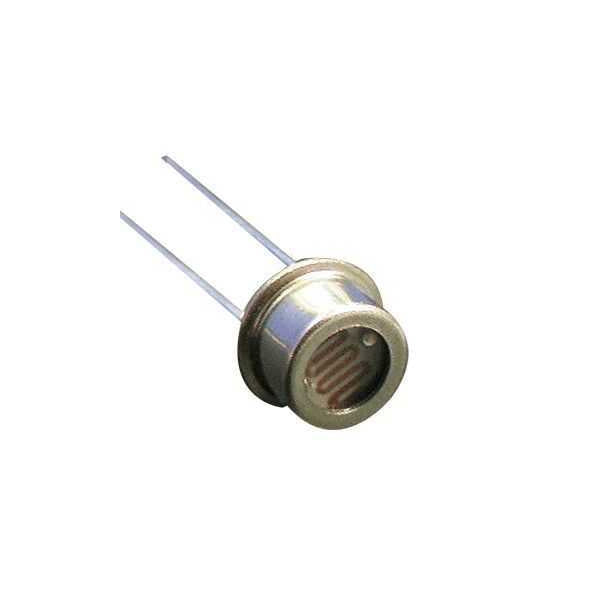

5mm LDR Metal Casing- Light Dependent Resistor
5mm LDR Metal Casing- Light Dependent Resistor
Couldn't load pickup availability
- Diameter : 5mm
- Number of Pins : 2
-
Material : Metal Case
- Max Voltage : 150 Vdc
- Max Power : 100mW
- Ambient Temperature : -30 deg C ~ 70 deg C
- Spectral Peak : 540nm
- Light Resistance at 10Lux : 20-30 K ohm
--
When light falls upon it then the resistance changes. Values of the resistance of the LDR may change over many orders of magnitude the value of the resistance falling as the level of light increases.
LDR 5mm – Metal Housing is a resistor which made of semi-conductor material, and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic. Photoresistor is widely used in many industries, such as toys, lamps, camera, etc.
