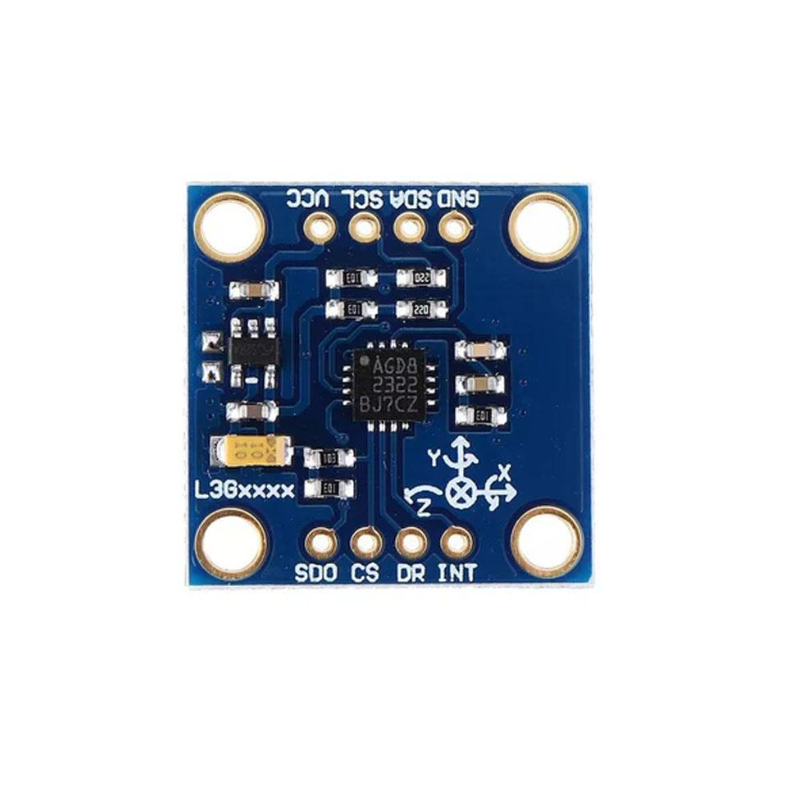

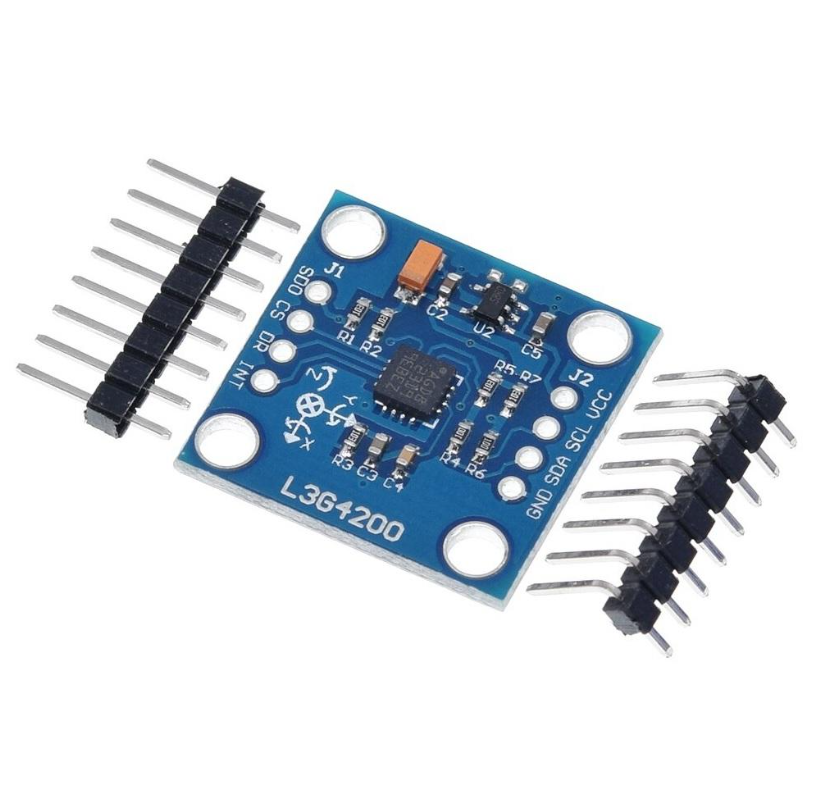

GY-50 L3G4200D 3 Axis Digital Gyroscope Sensor Module Angular Velocity Module
GY-50 L3G4200D 3 Axis Digital Gyroscope Sensor Module Angular Velocity Module
Regular price
Rs. 209.00
Regular price
Sale price
Rs. 209.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Raw angular rate and temperature data measurements are accessed from the selectable digital I2C or SPI interface. The small package design and SIP interface accompanied by the mounting hole make the sensor easy to integrate into your projects. Designed to be used with a variety of microcontrollers, the module has a large operating voltage window.
Features:
- 3-axis angular rate sensor (yaw, pitch & roll) make it great for model aircraft navigation systems.
- Supports both I2C and SPI for whichever method of communication you desire.
- Three selectable scales: 250/500/2000 degrees/sec (dps)
- Embedded power down and sleep mode to minimize current draw
- 16 bit-rate value data output
- 8-bit temperature data output
Specifications:
- Power Requirement: 2.7 to 6.5 VDC
- Current draw: 6.7mA @ 3.3VDC, 7mA @ 5VDC
- Communication: I2C (up to 400kHz) or SPI (10MHz; 4 & 3 wire)
- Dimensions: 0.85 x 0.80 in (2.16 x 2.03cm)
- Operating temp range: -40 to +185 °F (-40 to +85 °C)
Applications:
- UAV, IMU systems
- Robotics
- 3D motion control
- Virtual reality input devices
Package Includes:
- 1 x L3G4200D 3AXIS GYRO
