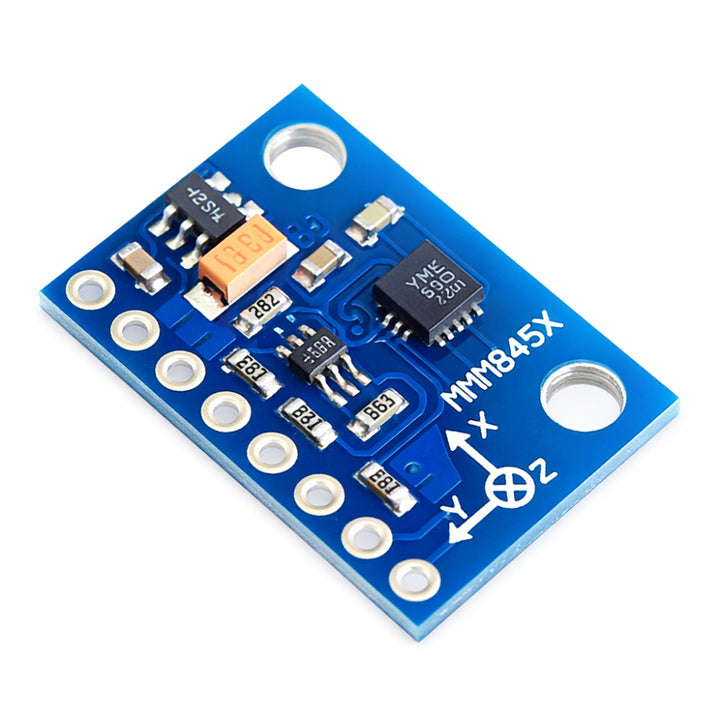

GY-45 MMA8452 3-Axis Accelerometer Module
GY-45 MMA8452 3-Axis Accelerometer Module
Regular price
Rs. 169.00
Regular price
Sale price
Rs. 169.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The GY-45 MMA8452 3-Axis Accelerometer Module is a compact breakout board based on the MMA8452 capacitive micro-machined accelerometer IC. It features 14-bit high-resolution sensing, low power consumption, and rich embedded functions for motion and orientation detection.
The MMA8452 supports selectable measurement ranges of ±2g, ±4g, and ±8g and provides I²C digital output for easy interfacing with popular platforms such as Arduino and Raspberry Pi. With support for up to two interrupt pins and built-in motion detection features—including free-fall, pulse, and vibration detection—this module is ideal for motion-aware embedded applications.
The MMA8452 supports selectable measurement ranges of ±2g, ±4g, and ±8g and provides I²C digital output for easy interfacing with popular platforms such as Arduino and Raspberry Pi. With support for up to two interrupt pins and built-in motion detection features—including free-fall, pulse, and vibration detection—this module is ideal for motion-aware embedded applications.
Features
- MMA8452 three-axis accelerometer IC
- Selectable measurement ranges: ±2g / ±4g / ±8g
- I²C digital output interface
- Up to two interrupt outputs
- Three motion detection channels
- Free-fall detection
- Pulse detection
- Vibration detection
- Low power consumption with smart embedded functions
- Compatible with Arduino and Raspberry Pi
Technical Details
- Item Type: Accelerometer
- Model No.: GY-45 MMA8452
- Accelerometer Type: 3-Axis
- Operating Voltage: 3–5 V DC
- Output Resolution: 14-bit (12-bit & 8-bit selectable)
- Interface Type: I²C
- Pulse Detection: One channel
- Interrupt Pins: 2
- Length: 14 mm
- Width: 21 mm
- Height: 2 mm
- Weight: 2 g
pplications
- Motion detection and orientation sensing
- Wearable and portable devices
- Robotics and automation projects
- Free-fall and impact detection
- Vibration monitoring
- Embedded system development and learning
Physical Attributes
- Compact PCB module design
- Dimensions: 21 × 14 × 2 mm
- Weight:10g
- Includes header pins for easy soldering
Package Includes

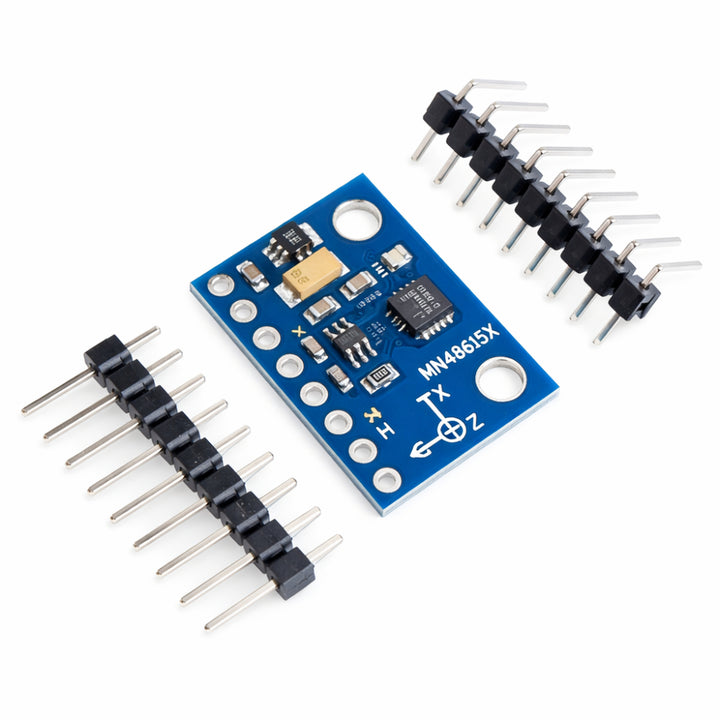

- 1 × GY-45 MMA8452 3-Axis Accelerometer Module
- 1 × 8-Pin Right Angle Male Header
- 1 × 8-Pin Straight Male Header
