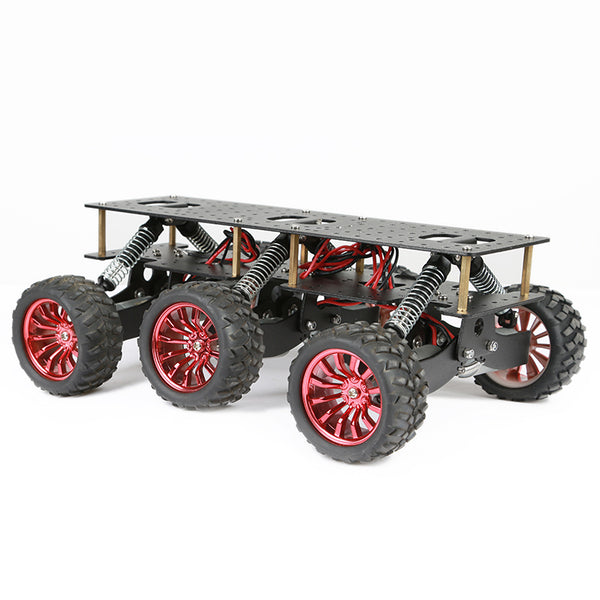

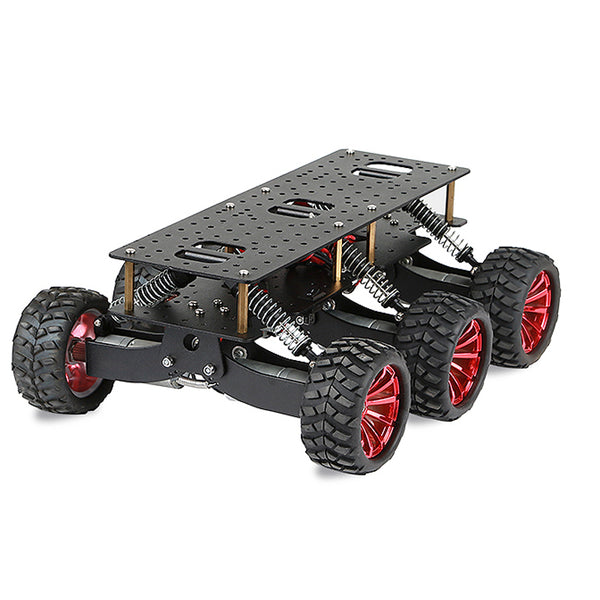

6WD Off-Road Robot Car Chassis with Suspension (DIY)
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
Share
A robot chassis is the frame of a mobile robot: motors, wheels, battery, sensors and the controller board all mount on it.
Specifications
| Product weight | 1700g |
|---|---|

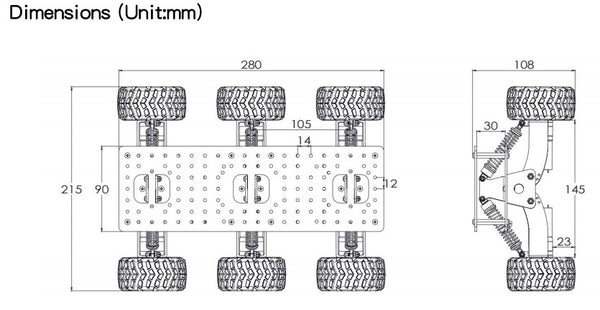

| Size | 280*215*108mm |
| Load capacity | 6500g |
| Ground clearance | 23mm |
| Working voltage | 6-12V Load current: 650mA * 6 |
| Motor power | 4w * 6 |
| Reference speed | 1.5m/s @12V Stall current: 7A * 6 |
| Shock travel | 15mm |
| Shock adjustment | Supported |

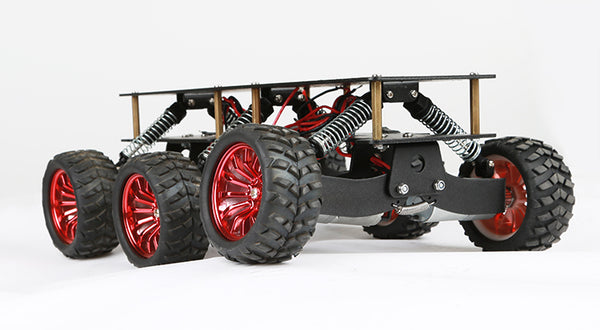

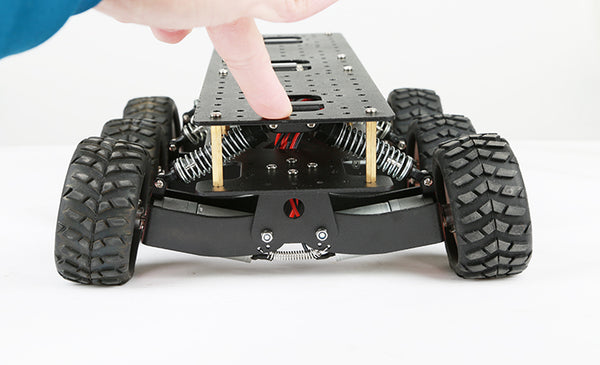

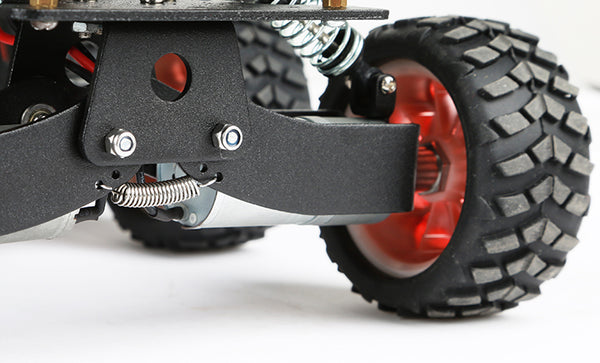

The 6WD shock-absorbing chassis is equipped with a 2mm one-piece stamped base plate, with an aluminum-plated surface treatment. It consists of two plates, with 3mm aperture holes regularly distributed on the base plate, with a lateral spacing of 12mm and a vertical spacing of 14mm, which makes it convenient for users to extend various sensors or perform other mechanical modifications, such as installing a robot. The upper plate reserves installation holes for the Arduino and Raspberry Pi platforms. Its shock-absorbing part uses 6 metal shock absorbers, which make the car have better road-passing ability and improve its off-road performance, especially on complex terrain. The car's wheels are 72mm rubber wheels. It has 6 original high-speed motors with a speed of 17000 RPM, and with a 1:34 reduction gearbox, it can obtain greater torque.
This is a differential drive chassis, which means that turning is accomplished by driving the motors on the platform's two sides at different speeds. The three motors on each side of the car are parallel, so only two motor control channels are required to move the chassis. The six motors can also be controlled individually. The working voltage of the motors is 6-12V.

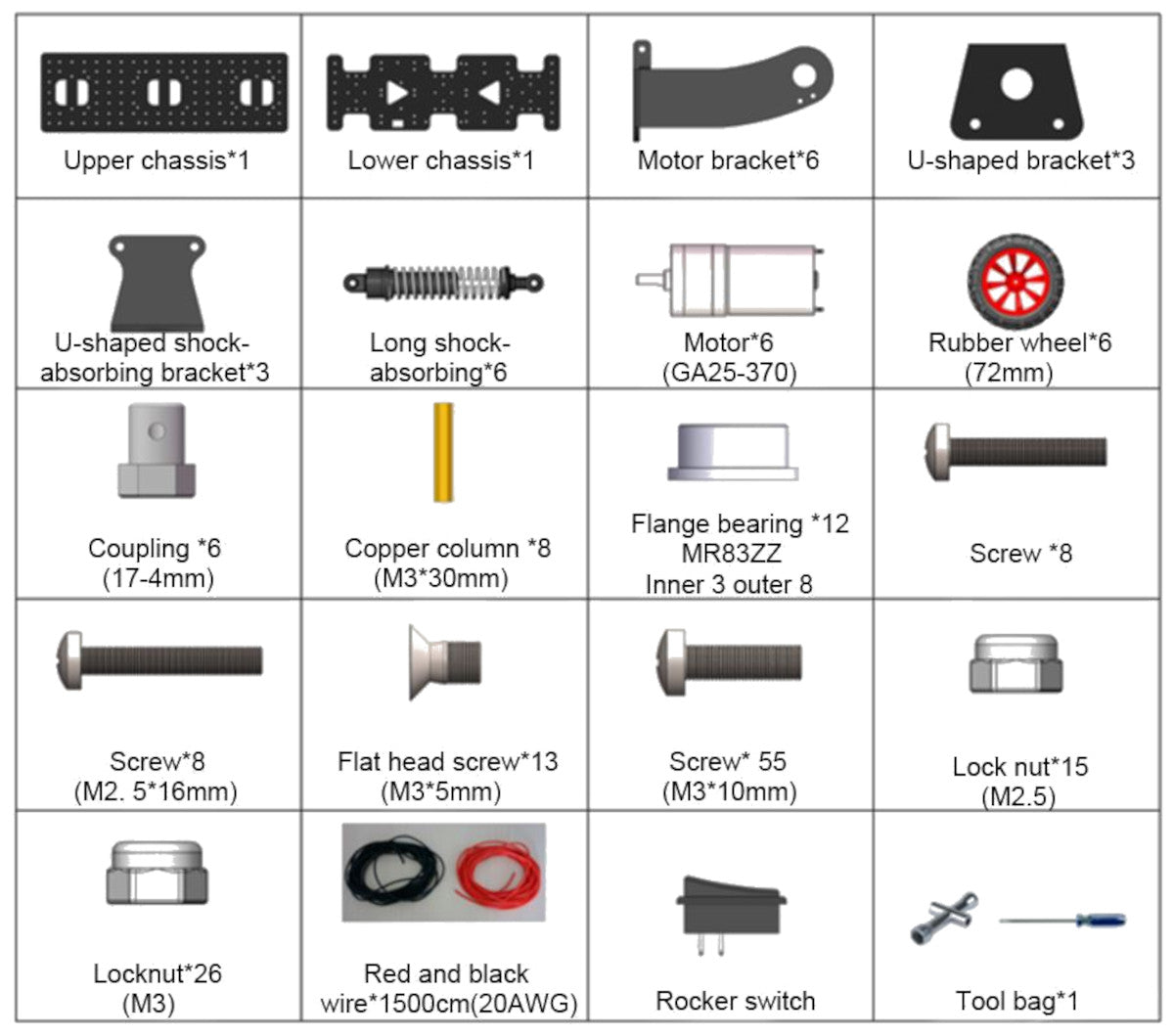

The chassis is shipped as separate parts and needs to be assembled. It comes in a 34 x 22 x 9 cm box with a sponge lining to protect the parts.
Precautions: this chassis is not waterproof, so do not use it in water or damp places, and never short the battery's positive and negative wires.
Motor parameters
| Voltage | 9V: 350 RPM, 0.5A, 1.5 kg.cm, 3W, stall 4A, 1.2 m/s |
|---|---|
| Voltage | 12V: 495 RPM, 0.65A, 2.8 kg.cm, 4W, stall 7A, 1.5 m/s |
Works with: motors in DC Gear & BO Motors, drivers in Motor Drivers, and Robot Wheels, Castors & Pulleys.
Tip: mount the battery low and near the middle of the chassis so the robot stays stable when it turns.
