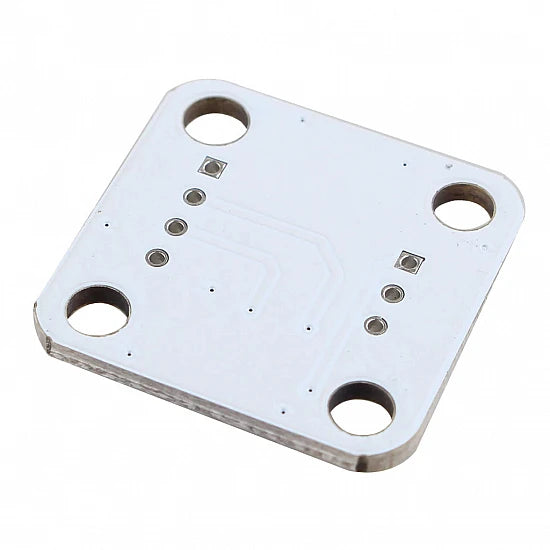

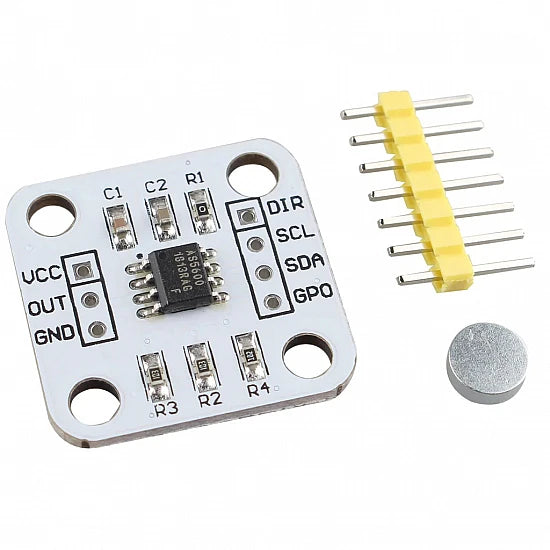

AS5600 12-Bit Magnetic Encoder Sensor Module
Regular price
Rs. 169.00
Regular price
Sale price
Rs. 169.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Dispatched in 24 hrsExcept Sundays and public holidays
- GST invoiceInput tax credit for businesses
- ReplacementFor transit damage or wrong item
Share
🎟️ Available Coupons — Copy & Apply at Checkout
IHCPRIME
₹100 off on orders above ₹2999
WELCOME
₹50 off for new customers above ₹999
P42A10
10% off on Molicel P42 MOQ100
FREESHIPPING
Free shipping above ₹1999
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Features:
- 12-Bit DAC Output Resolution: Provides 4096 positions per revolution for high precision
- Non-contact Magnetic Induction: Uses magnetic field changes to measure angle without physical contact
- Output Modes: Supports multiple output formats including I2C, PWM, and analog voltage
- Hall Effect Sensor: Uses the Hall element to measure magnetic field strength and output proportional voltage
- Wide Operating Temperature: Works reliably in environments from -40°C to 125°C
The AS5600 Magnetic Encoder is a high-precision, non-contact magnetic angle sensor that detects rotational position by measuring changes in the magnetic field. It uses the Hall effect to convert magnetic variations into electrical signals, providing accurate feedback for a wide range of applications. With a 12-bit resolution and multiple output modes, this sensor is ideal for precise angle measurement in robotics, motor control, and 3D printing.
Specification:
- Main Chipset: AS5600
- Product Name: Magnetic encoder sensor module AS5600
- Power Supply: 3.3VDC
- Operating Temperature: -40°C to 125°C
- Interface: I2C, PWM, and Analog voltage
- Resolution: 12-Bit DAC Output (4096 Positions Per Revolution)
- Non-Contact Magnetic Angle Measurement
- Length: 23mm
- Height: 3mm
- Width: 22.5mm
- Weight: 3 gm
Application:
- Motor Position Feedback
- Rotary Angle Measurement
- Robotics & Automation
- Industrial Control Systems
- Consumer Electronics
- Automotive Applications
- Embedded Systems Projects
- Speed (RPM) Measurement
- Human Interface Devices (Rotary Knobs / Dials)
