APC220 Bluetooth Voice Recognition Module Multifunctional Expansion Board Shield
APC220 Bluetooth Voice Recognition Module Multifunctional Expansion Board Shield
Regular price
Rs. 299.00
Regular price
Sale price
Rs. 299.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- Multi-function Shield
- 10K adjustable precision potentiometer
- Piezo Buzzer
- DS18B20 temperature sensor interface
- LM35 temperature sensor interface
- Infrared receiver interface

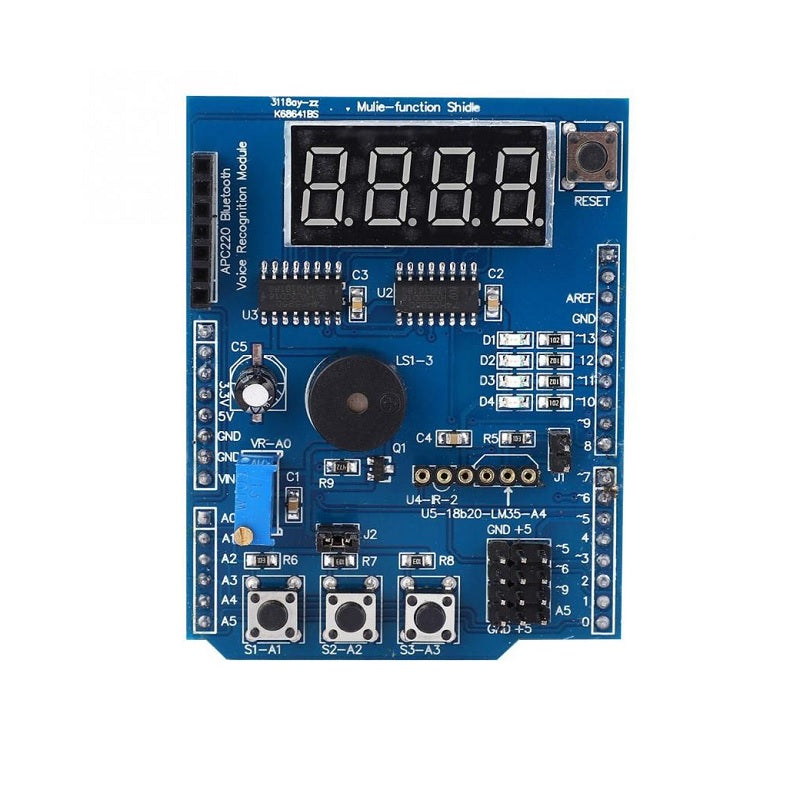

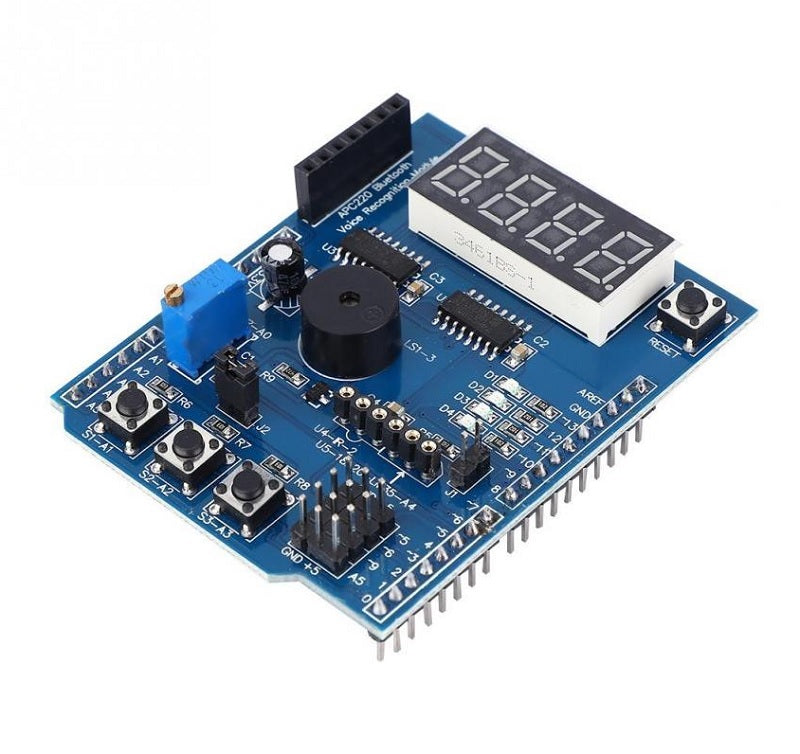

Multifunction Shield For Arduino Uno / Leonardo
This Multifunction Shield For Arduino Uno / Leonardo is all in one shield for beginner users of the Arduino Development Board. This Arduino Uno and Leonardo compatible multifunction experimenter shield (HCARDU0085) has a large range of features which makes it ideal for beginners who just want to experiment and learn, or just as a general-purpose shield for more advanced uses. Multifunction Shield For Arduino Shield, Screw Shield, Expansion Board, Multifunctional Shield, and Mulie-Function Shidle,rMultiFuncShield.

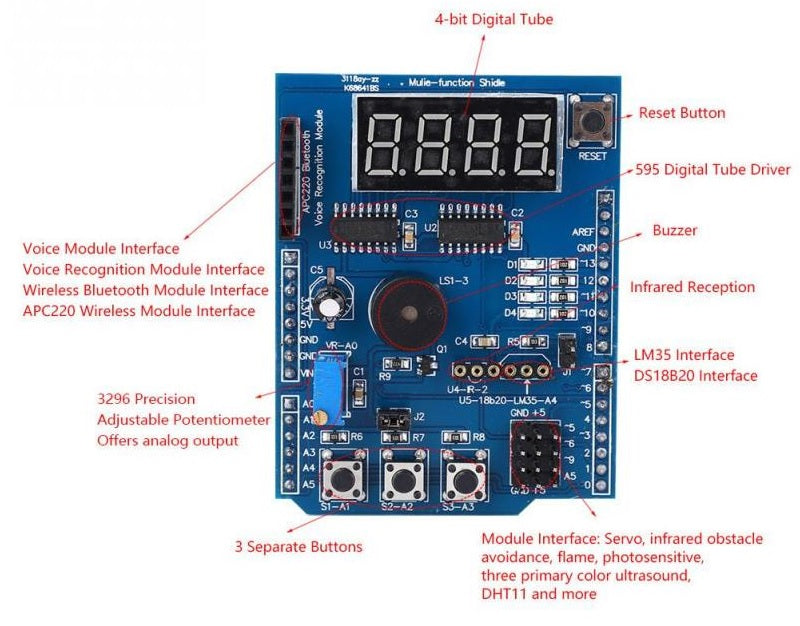

Features:
- 4 digit 7-segment LED display module driven by two serial 74HC595’s
- 4 x surface mount LED’s in a parallel configuration
- 10K adjustable precision potentiometer
- 3 x Independent push buttons
- Piezo buzzer
- DS18B20 temperature sensor interface
- LM35 temperature sensor interface
- Infrared receiver interface
- Serial interface header for convenient connection to serial modules such as Bluetooth, a wireless interface, voice module, a voice recognition module, etc.
Features/Specs
- Input Supply voltage: 5VDC

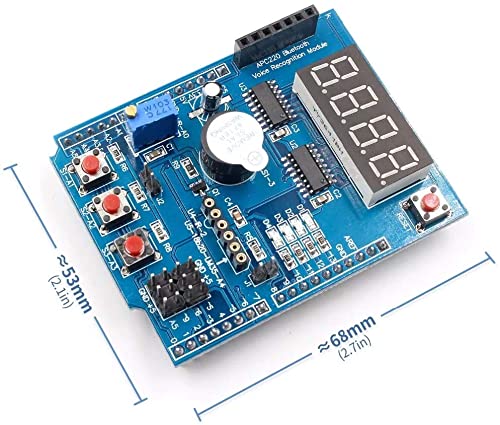

- Length: 66 mm
- Width: 53.5 mm
- Height: 21 mm
- Weight: 22 gm
Package Includes:
- 1 x Multifunction Shield For Arduino Uno / Leonardo
Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
