XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB
XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB
Couldn't load pickup availability

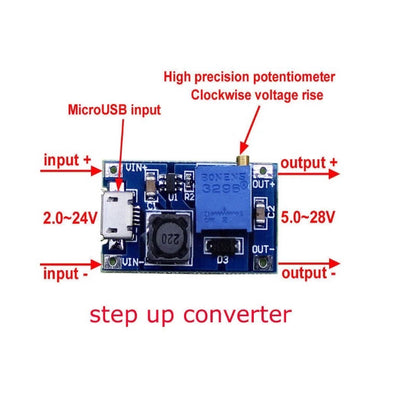

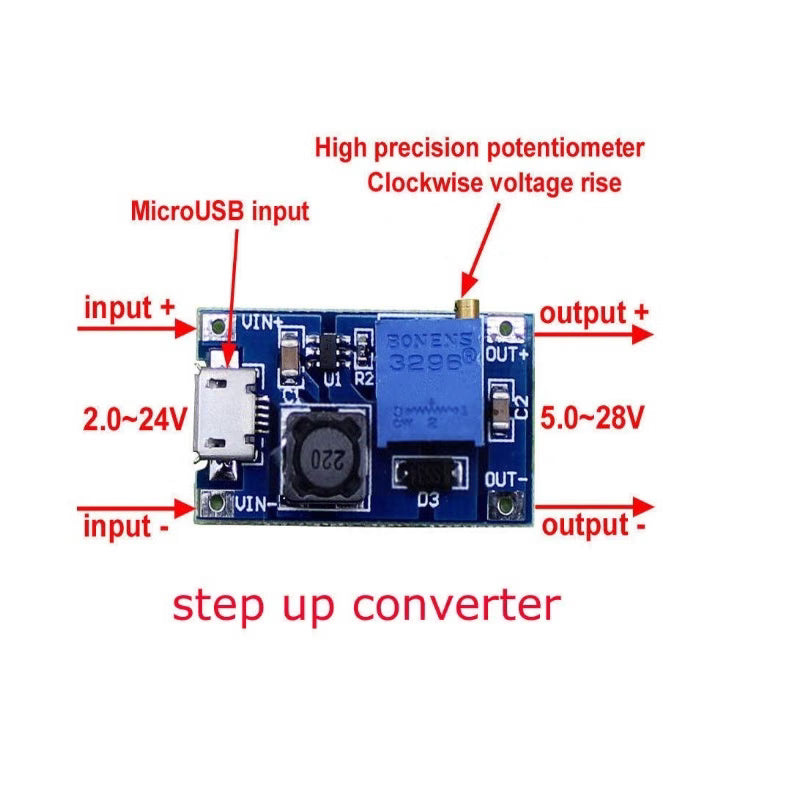

This is XY-016 2A DC-DC Step Up 5V/9V/12V/28V Power Module with Micro USB. All network small adjustable boost module easily installed in a variety of small equipment.
This Multipurpose tiny and very cheap voltage booster can be very useful in your various DIY project as it has a variable output voltage range from 5.5V DC to 28V DC at up to peak 2A of current capacity. Additionally, the module has a Micro-USB input voltage port so you can get the input to the module from various sources like computer port, Mobile phone, Power Banks etc.
- Max. Output Current (A): 2
- Input Voltage (V): 2 to 24
- Maximum Output Voltage (V): > 28
- Efficiency: >93%.
Applications:
The module can be used in any application which needs voltage greater than 5V up to 28V with the maximum current requirement of 2A
Measures :
- This module is a step-up module, the output voltage is greater than the input voltage.
- Peak current output current should not exceed 2A.
Note: This Product is available in two different variants (XY-016 and HW-183) with the same working we will ship it randomly.
