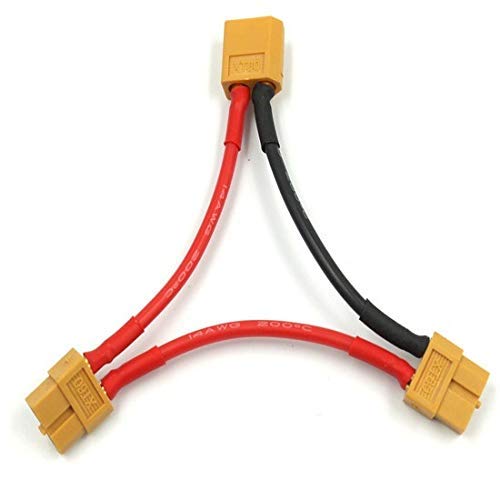

XT60 Male to Female Series Connector Cable 15CM (1 XT60 Male TO 2 XT60 Female)

XT60 Male to Female Series Connector Cable
Silicone wire

This harness comes with two female and one male connector, designed to connect two batteries in series so that the male connector at the output gives the combined voltage of both batteries. It is an excellent and economical way of building a larger LiPo pack.

It also means that if you have a crash and damage a cell the loss is far less than losing an entire 6S1P pack. It’s the smarter way to run larger packs.

For example, 2×1800mAh 12V batteries connected using this would become a 24V 1800mAh battery.

Specifications

• Connector Type: XT60
• Application: Series Connection
• Cable length: 15 cm
• Wire Width: 4 mm
• Connector Width: 16.5 mm
• Weight: 20 gm

Note

• Only use with batteries and ESCs that follow the standard polarity conventions for XT60 connectors.
• All batteries must be fully charged before a connection.
• Do not charge the batteries while connected.

Used for

• LiPo battery packs and chargers
• ESCs and power distribution boards
• Series and parallel battery setups

In the box

• 1 x XT60 Male to Female Series Connector Cable 15CM (1 XT60 Male TO 2 XT60 Female)
