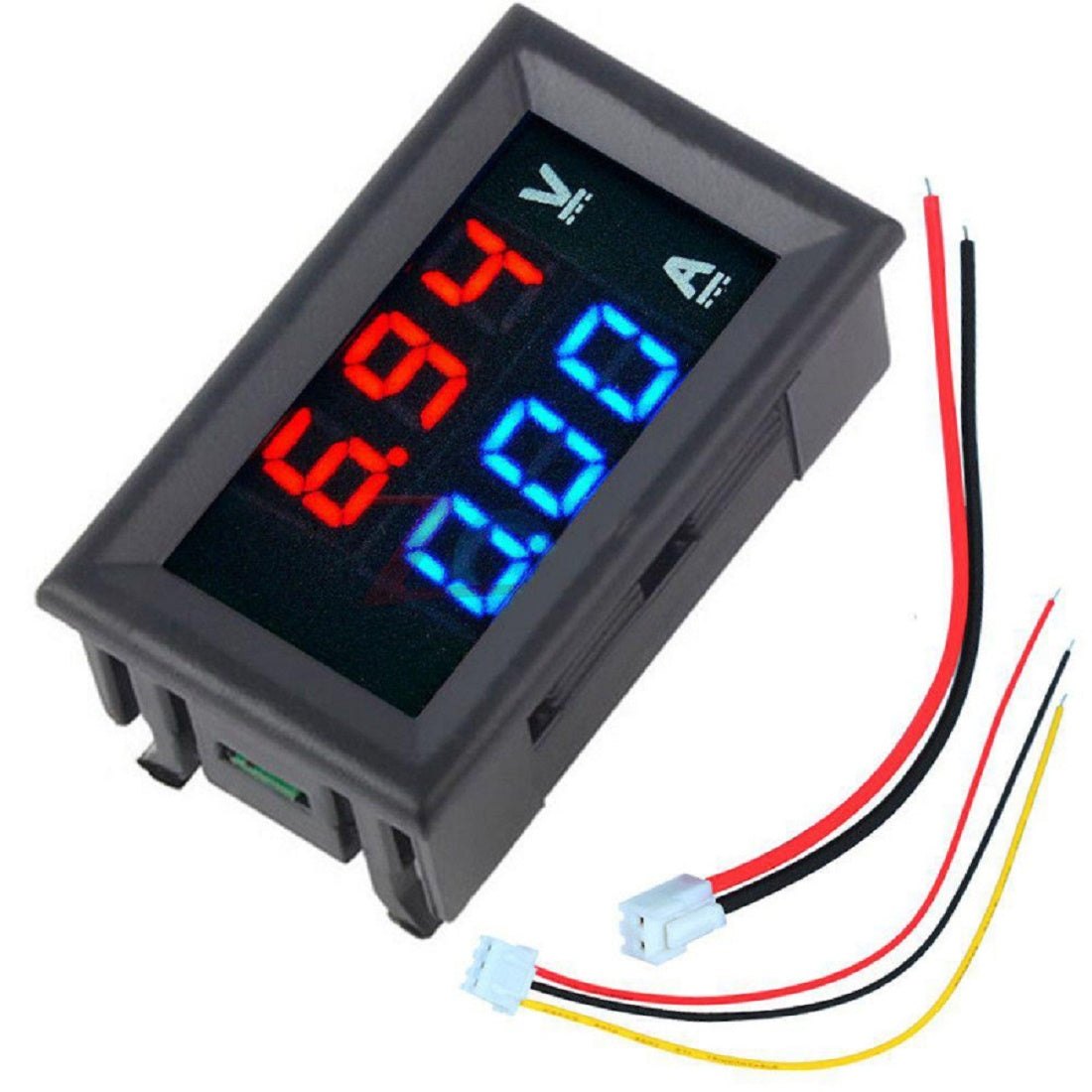

XK-001 DSN-VC288 Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module
XK-001 DSN-VC288 Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module
Regular price
Rs. 199.00
Regular price
Sale price
Rs. 199.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module
Specifications:-
- Input Voltage - 4.5V to 30V DC
- Input Current - <= 20mA
- Display Color - Red (Voltage) , Blue (Current)
- Measuring Voltage Range - 0V to 100V DC
- Measuring Currrent Range - 0A to 10A
- Measurement Accuracy - 1%
- Minimum Voltage Resolution - 0.1V
- Minimum Current Resolution - 0.01A
- Size - 48x29x21mm
Note:- Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning
Wiring:-
- Black line (thin): vacant or buck circuit (module) Negative
- Red line (thin): power supply Positive
- Black line (thick): COM, common measuring
- Red line (thick): PW+, measuring terminal voltage input positive
- Yellow line (thick): IN+, current input Positive
Package Contains:-
1 x Digital Voltmeter & Ammeter Module
1 x Two wire thin connector
1 x Three wire thin connector
* Product Images are shown for illustrative purposes only and may differ from actual product.
