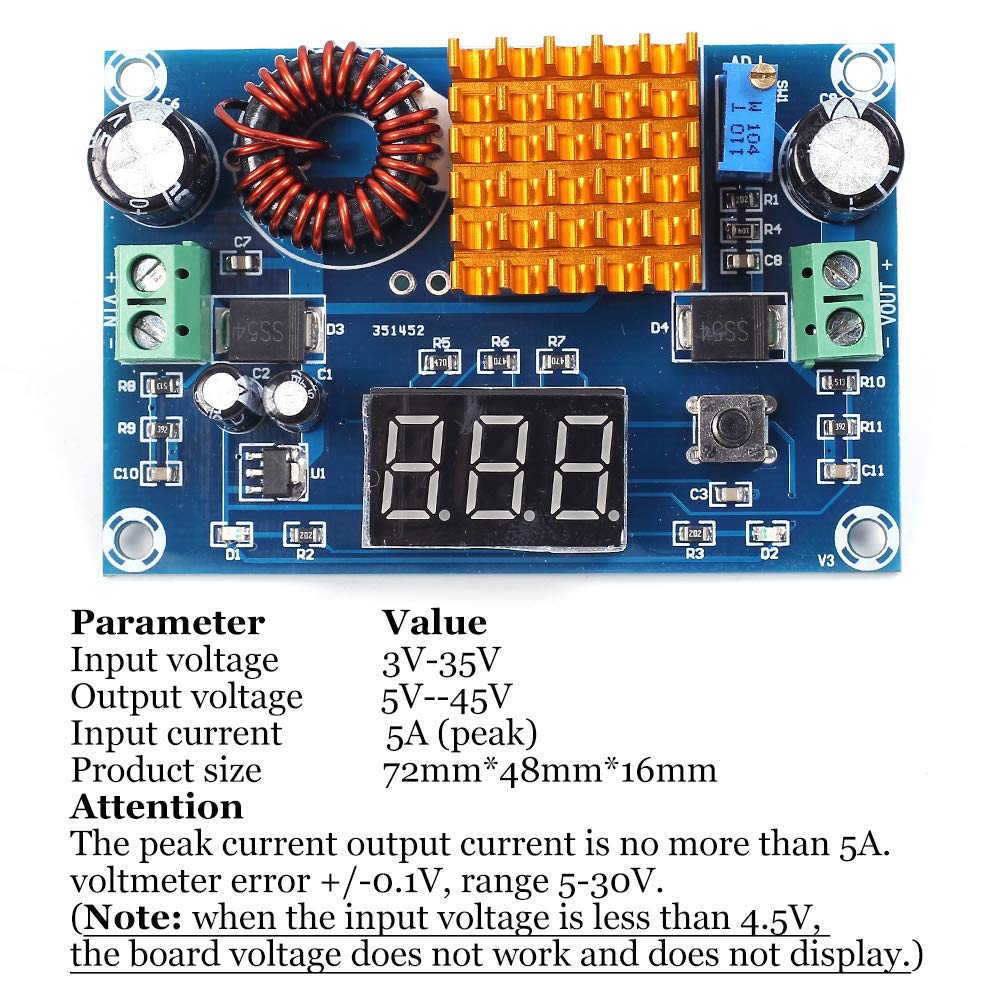

1. Model: XH-M411
2. Input Voltage: 3V-35V
3. Output Voltage: 5V-45V
4. Input Current: 5A(Peak)
5. Voltage Display Range: 5V-30V
   (if input voltage is lower than 4.5V, it will not display), Voltage Display Error: ±0.1V

Features:

• This is a powerful DC-DC boost power supply module for electrical equipment, digital products, etc. You can use it to DIY a regulated power supply, input voltage is 3V-35V, the output xoltage can be adjusted from 5V-45V . Monolithic integrated circuit, digital programming, precise control, reliable and durable.
• 0.9WH power inductor adopts brand new original IC input and output switching display, input and output terminals adopt screw terminal design to facilitate wire connection and disconnection. USB and 2.5A high current output design can identify resistance and simultaneously Telephone charging.

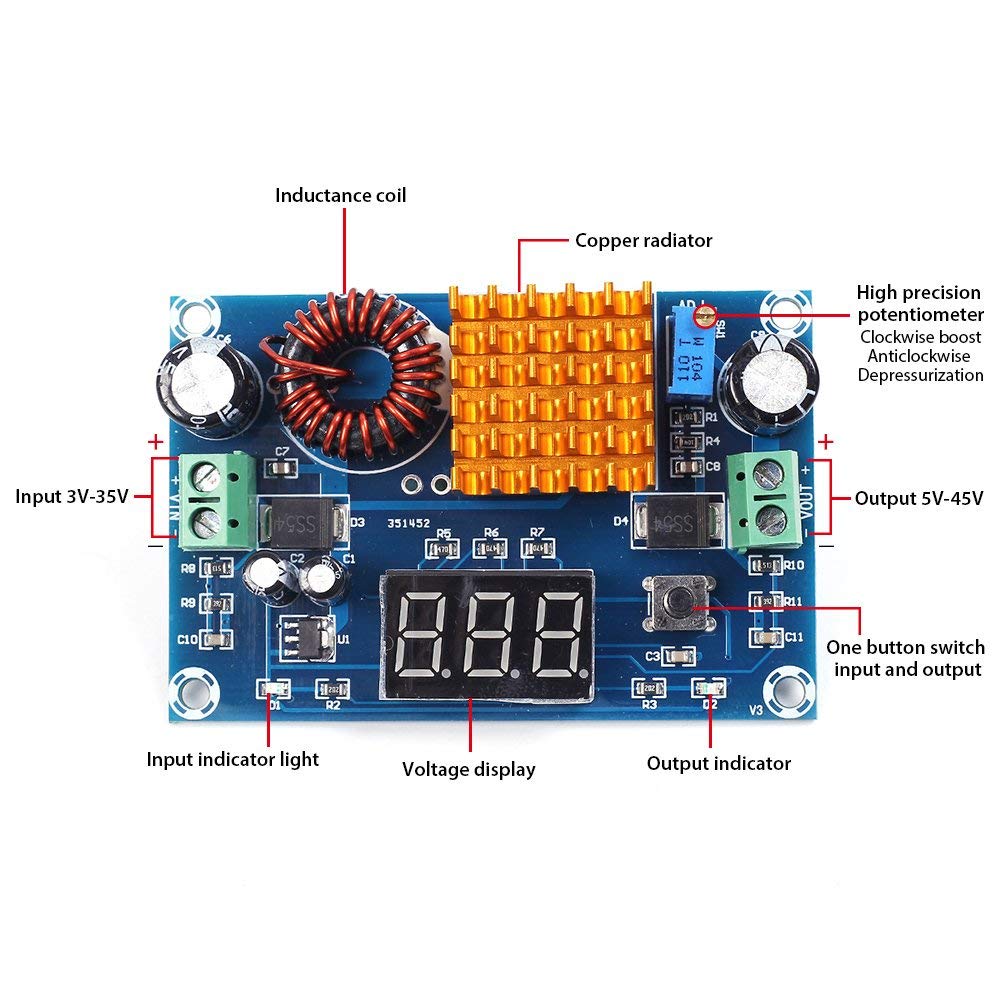

• Module has inductor coil, copper heat sink, high precision potentiometer (clockwise boost, counterclockwise step down), digital tube voltage display (display voltage is more intuitive), input indicator and output indicator and other parts. More convenient to use, more comprehensive functions .
• Power supply for your electronic equipment, you can set the output value according to your system voltage. DIY a high-power notebook mobile power supply with a large capacity 12V lithium battery, use your notebook as you like. DIY high current mobile power supply with a single-cell lithium battery. It comes with USB interface and identification resistor, and has a large current output of 2.5A, charge several mobile phones at the same time. Solar panel regulator power supply.

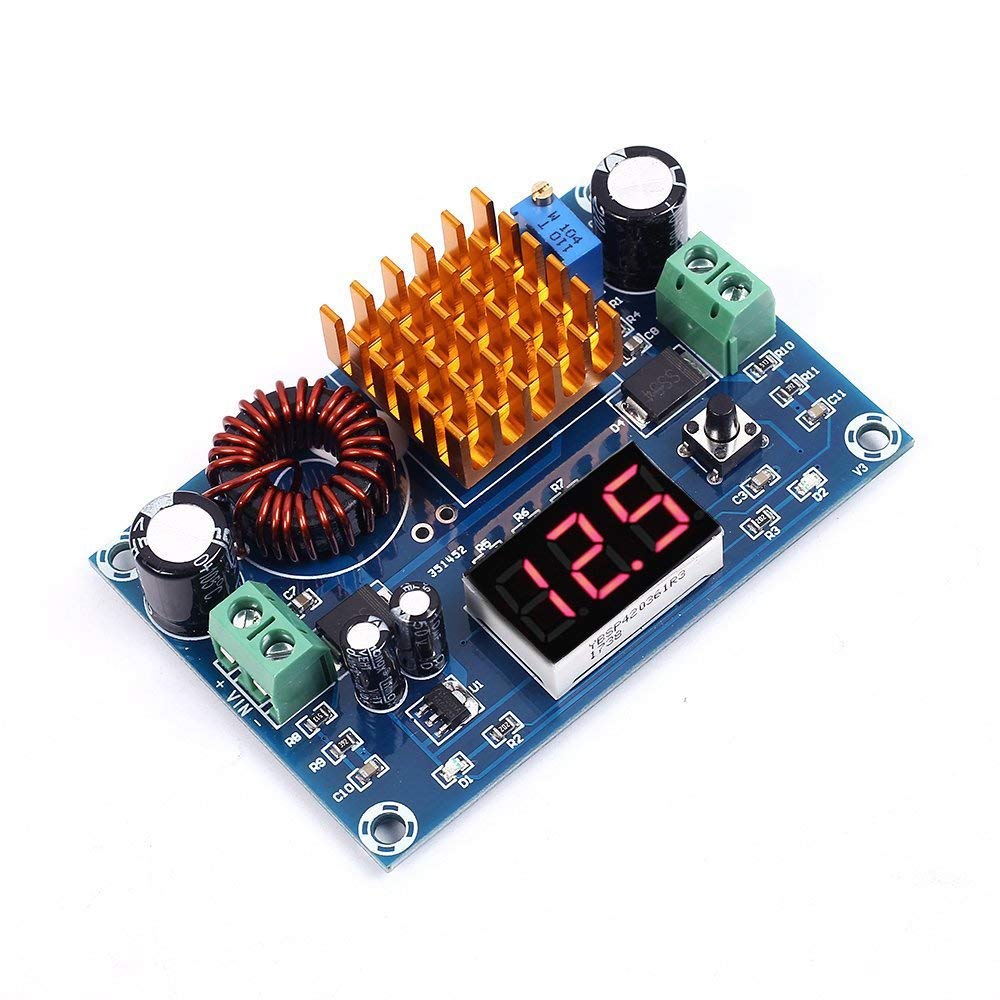

XH-M411 DC-DC Digital Booster Board Boost Nodule High-Power 5-45V Output 5A is a great DC to DC step-up power supply module for electric equipment, digital products, etc. Input and output are designed with screw terminals for convenient wire connection and disconnection. There is a heat sink on board that would ensure better heat dissipation. Designed with USB and 2.5A large current output, can identify resistance and charge several phones at the same time. It can also be used as a power supply for laptops or voltage regulator for solar panels.

Application:

1.  Make a DIY stable power supply, input 12V, the output can 12-35V adjustable, with a voltmeter, display more intuitive.
2.  Power supply for electronic equipment. You can set the output value according to your system voltage.
3.  Make car power supply. Powering laptops, PAD, or digital products.
4.  It can be used to make a DIY high-power notebook mobile power, configure a large capacity 12V lithium battery. Keep your laptop bright.
5.  Used as a solar panel voltage regulator.
6.  It can be used to make a DIY high current moving current and can be boosted to 5V with a single lithium battery. Ultra-large current output with USB port and identification resistor and 2.5A. It can charge several mobile phones at the same time.
