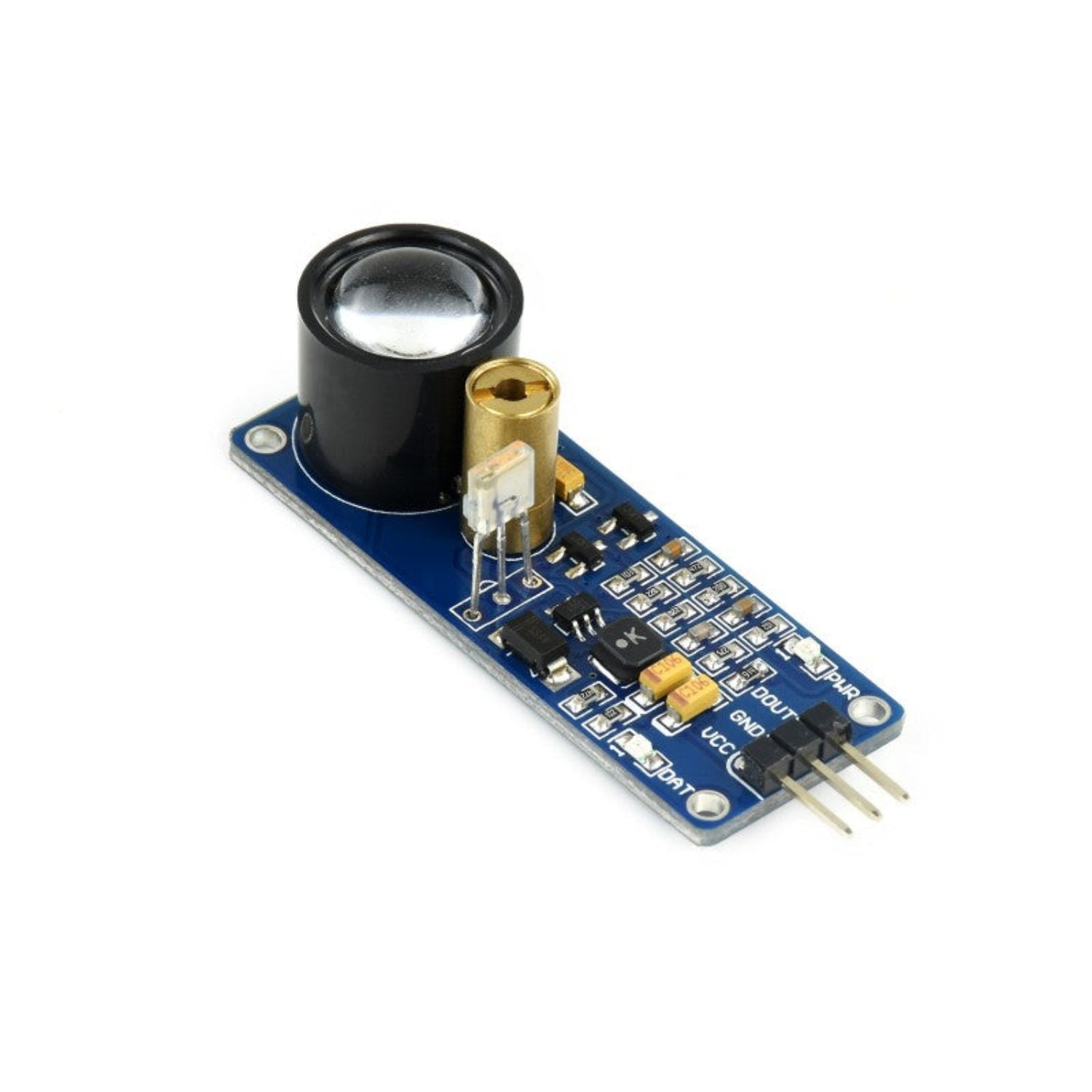

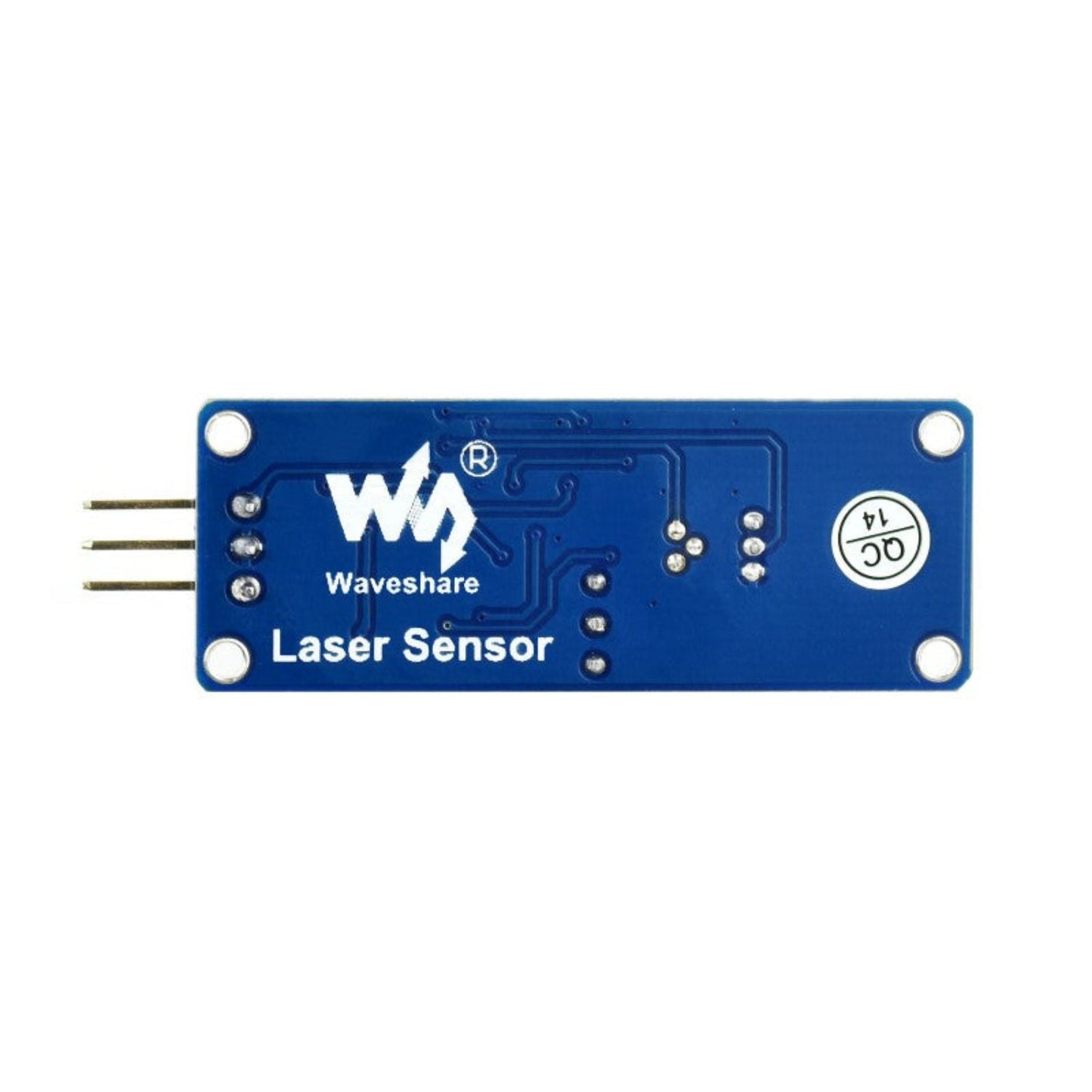

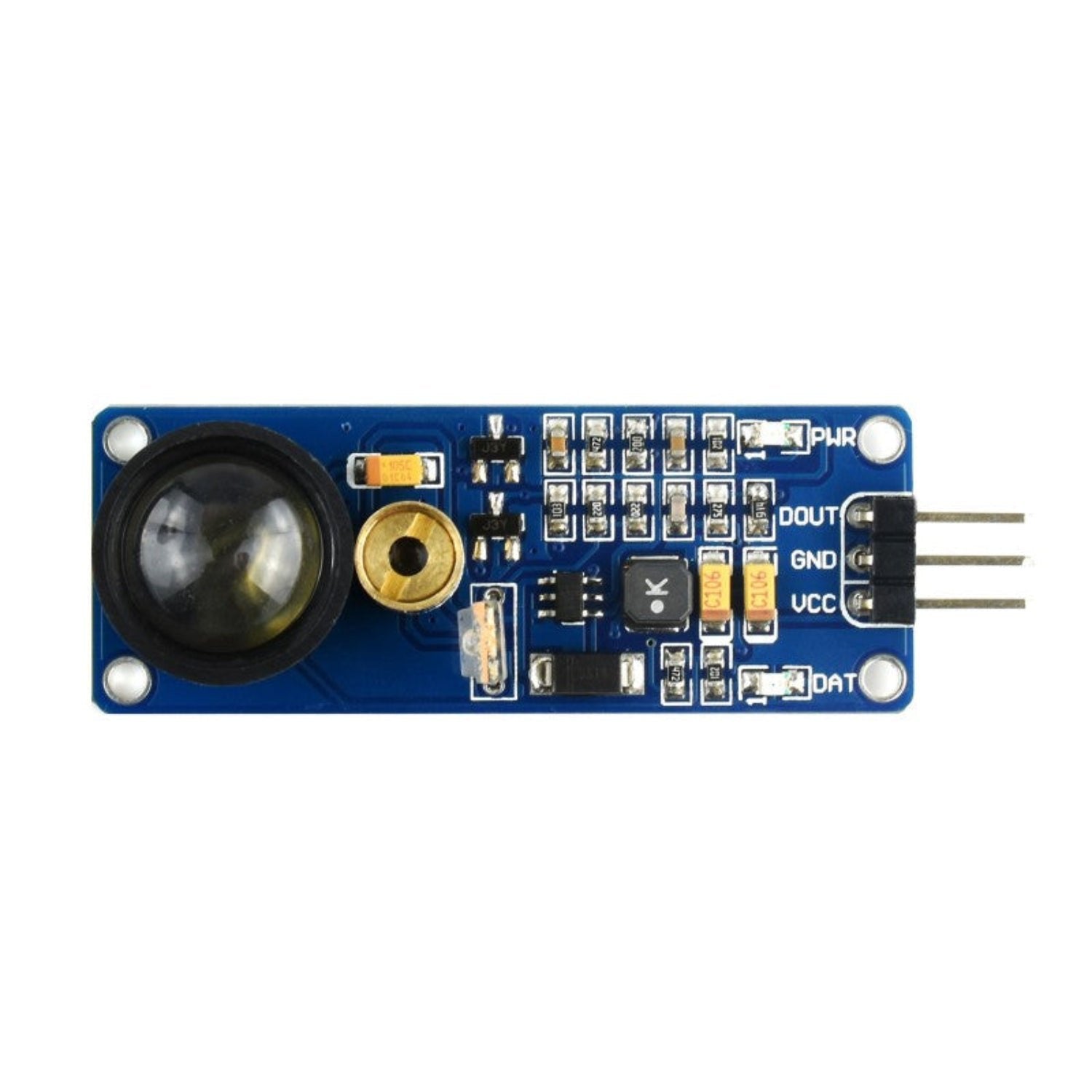

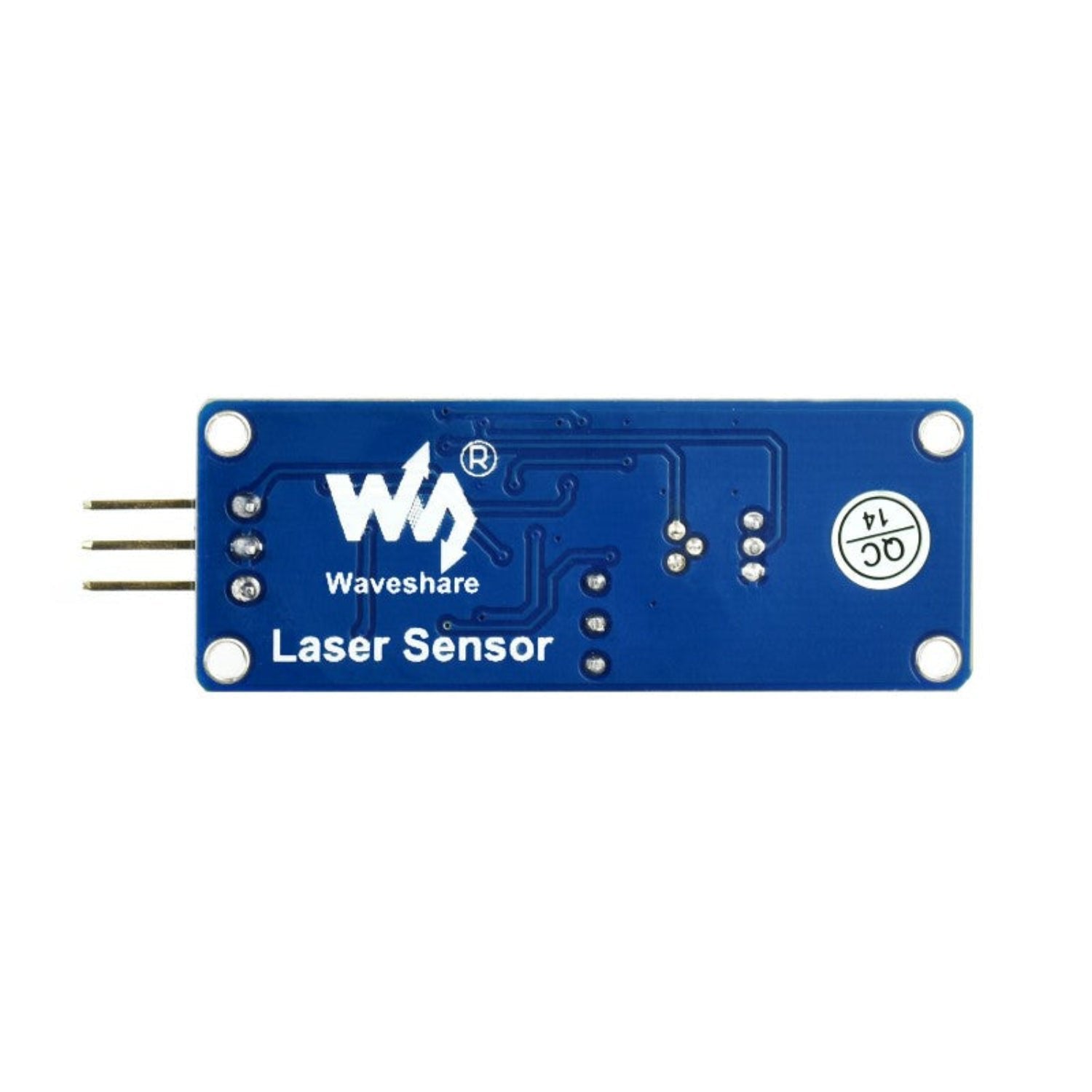

Waveshare Laser Distance Measurement Sensor
Waveshare Laser Distance Measurement Sensor
Regular price
Rs. 989.00
Regular price
Sale price
Rs. 989.00
Taxes included.
Flat Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
🎟️ Available Coupons — Copy & Apply at Checkout
100% Secure Payments
Verified & Protected
Accepted Payments
UPI
Mastercard
VISA
SSL Encrypted
256-bit Encryption
SKU:9524
Part No.:Laser Sensor
Brand:Waveshare
Overview
- Features boost circuit
- Signal output indicator
Specifications
- Effective distance: 0.8m(typ), 1.5m(max)
- Power: 2.5V ~ 5.0V
- Dimension: 47.7mm * 17.9mm
- Mounting holes size: 2.0mm
Applications
- Obstacle detection
- Pipeline counter
- Smart robot
- Obstacle-avoiding car
How to Use
In the case of working with a MCU:
- VCC ↔ 2.5V ~ 5.0V
- GND ↔ power supply ground
- DOUT ↔ MCU.IO (digital output)
