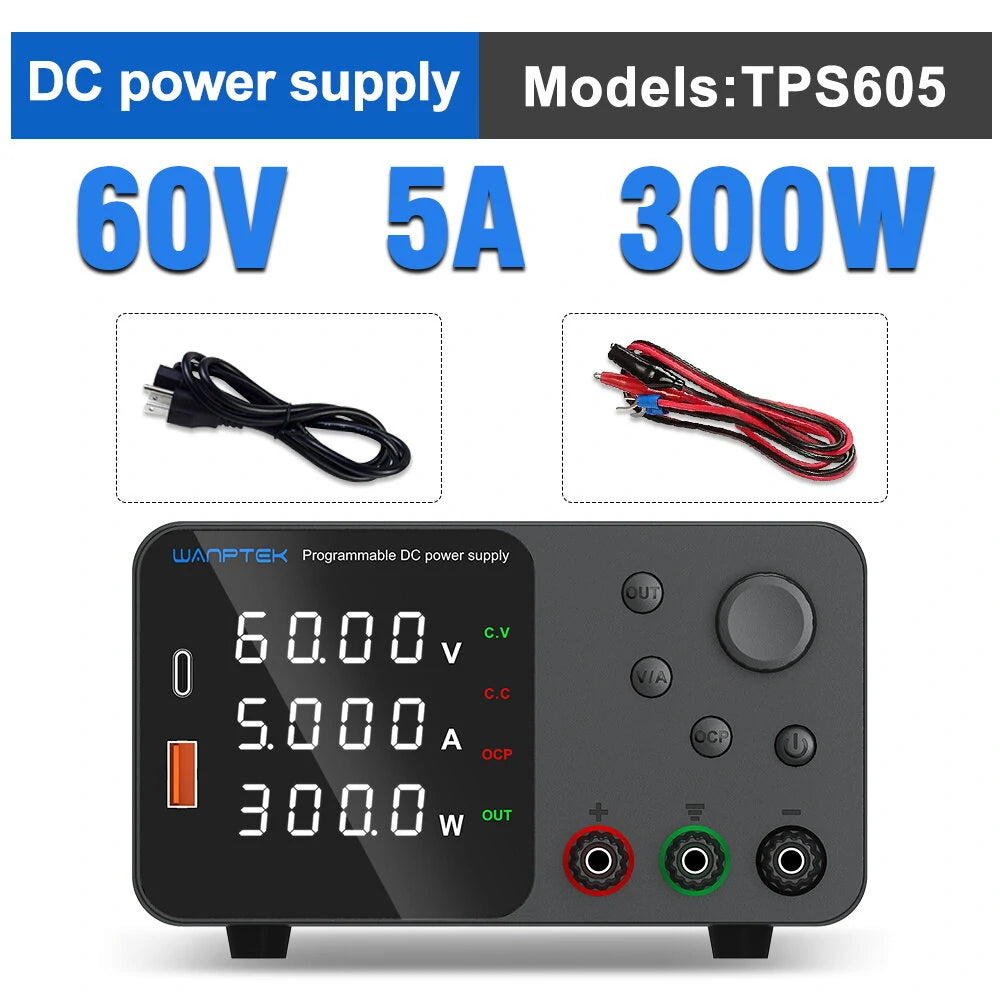

1. Make: WANPTEK
2. Model: TPS605
3. Channels: 1
4. Output Voltage(V): 0-60
5. Output Current (A): 0-5
6. Rated output power: 300W

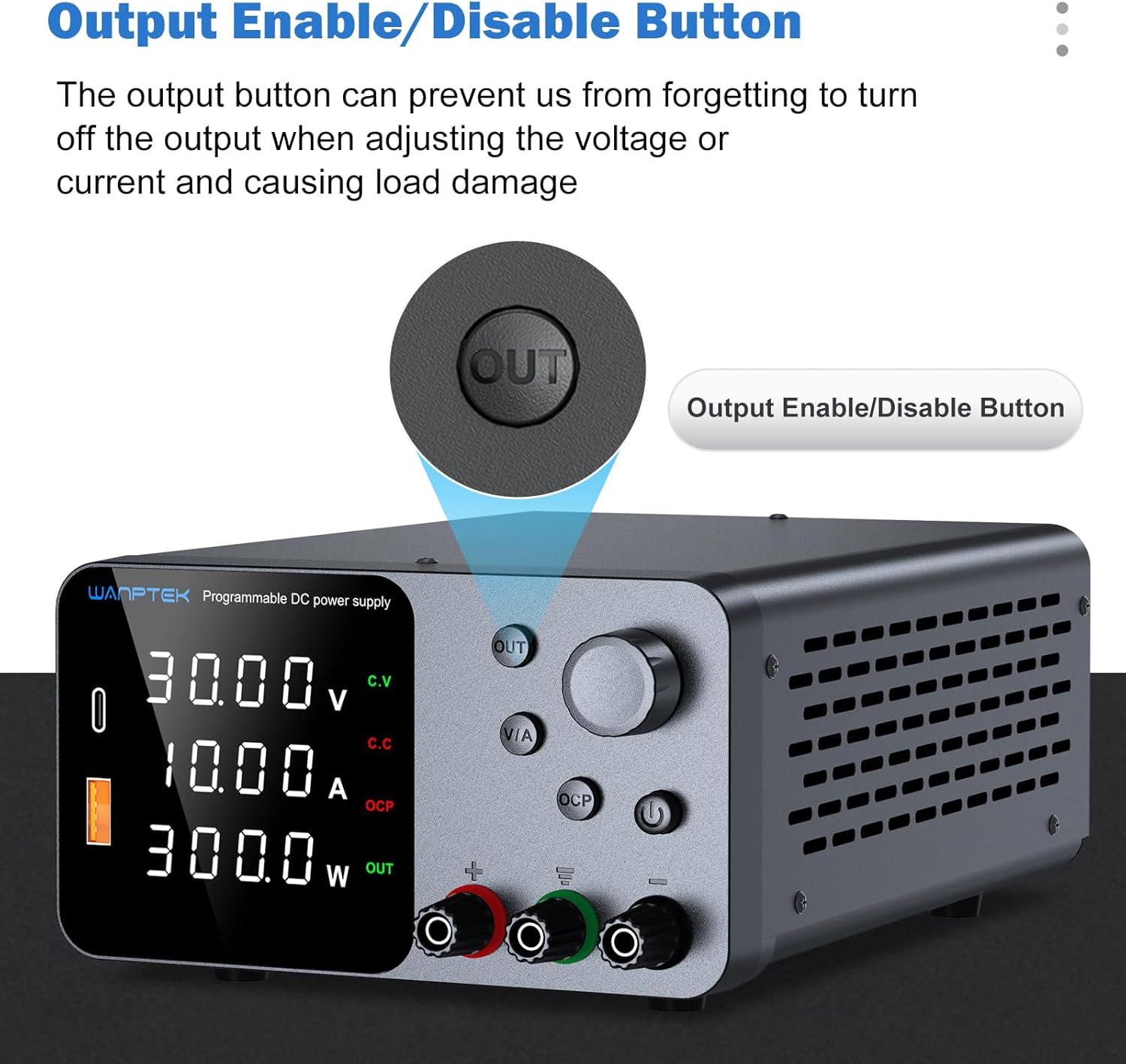

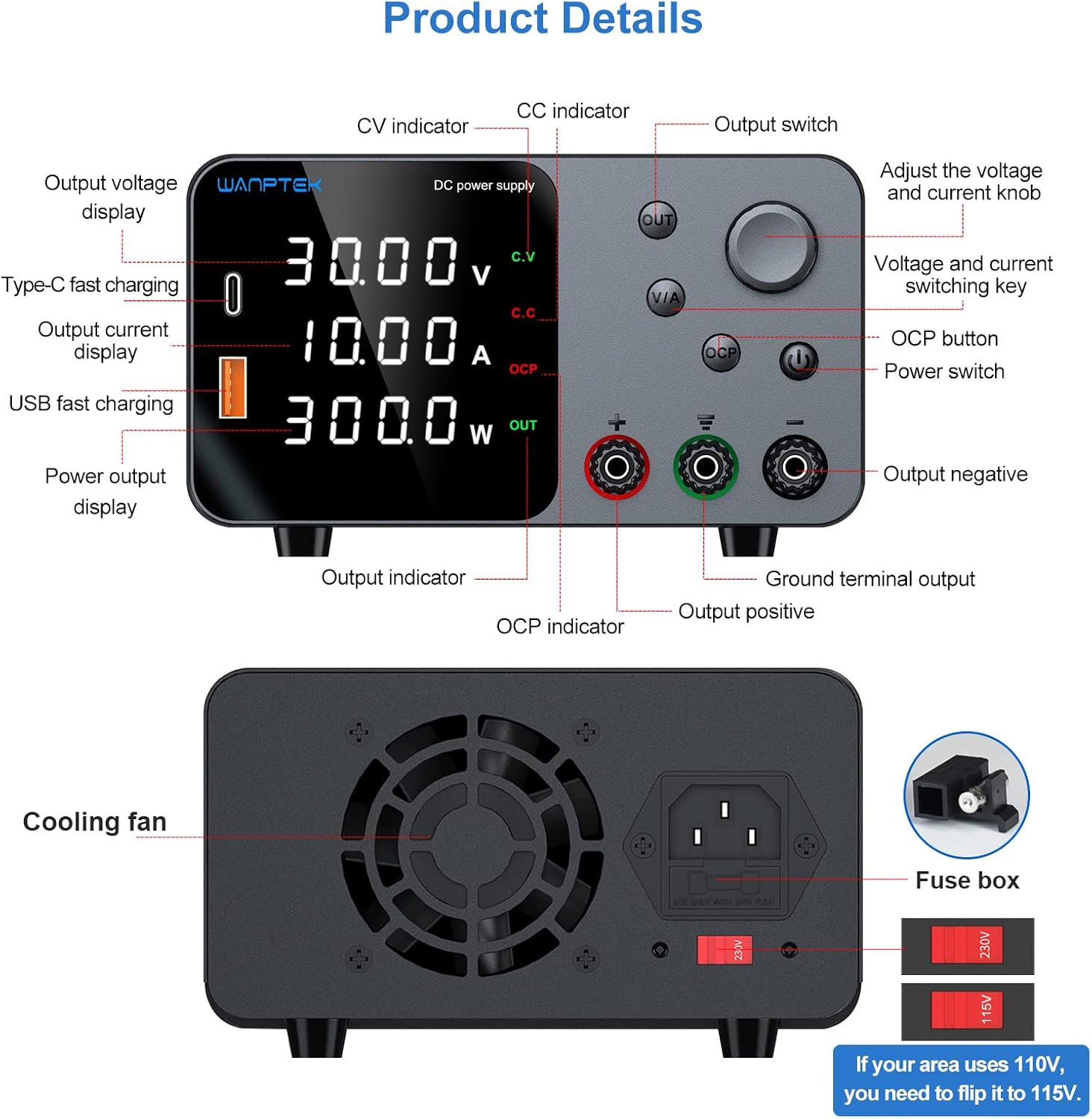

Wanptek DC bench Power Supply is designed to provide a stable and adjustable DC voltage and current output, making it ideal for various electronic testing, repair, and development applications. It features precise encoder knobs for accurate adjustments, an output enable/disable button, and integrated USB and Type-C quick-charge interfaces for added convenience. This manual provides detailed instructions for safe operation, setup, and maintenance of your device.

Features:

1.Small size, light weight and high power density.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

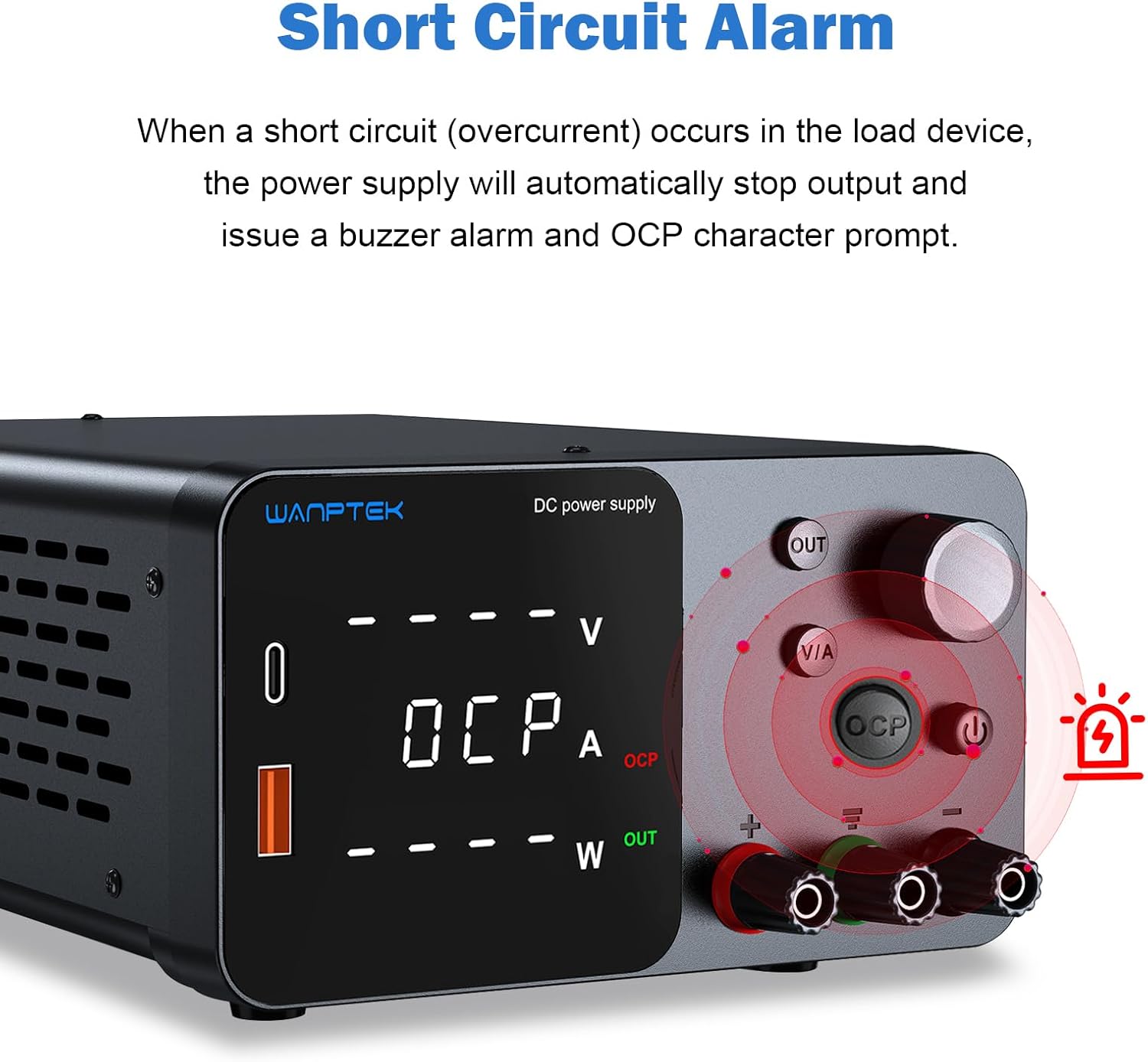

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously adjusted between 0 and nominal value with fine regulating and coarse regulating, it has over voltage protection(OVP), over current protection(OCP), over temperature protection.

5.Temperature controlled fan cooling, low noise, long life.

6.Dual voltage input and convenient choice.

7.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

8.Output current ranges from 0 to rating current with continuous adjustment

9. AC 110v and 220V can work , rest assured to choose.

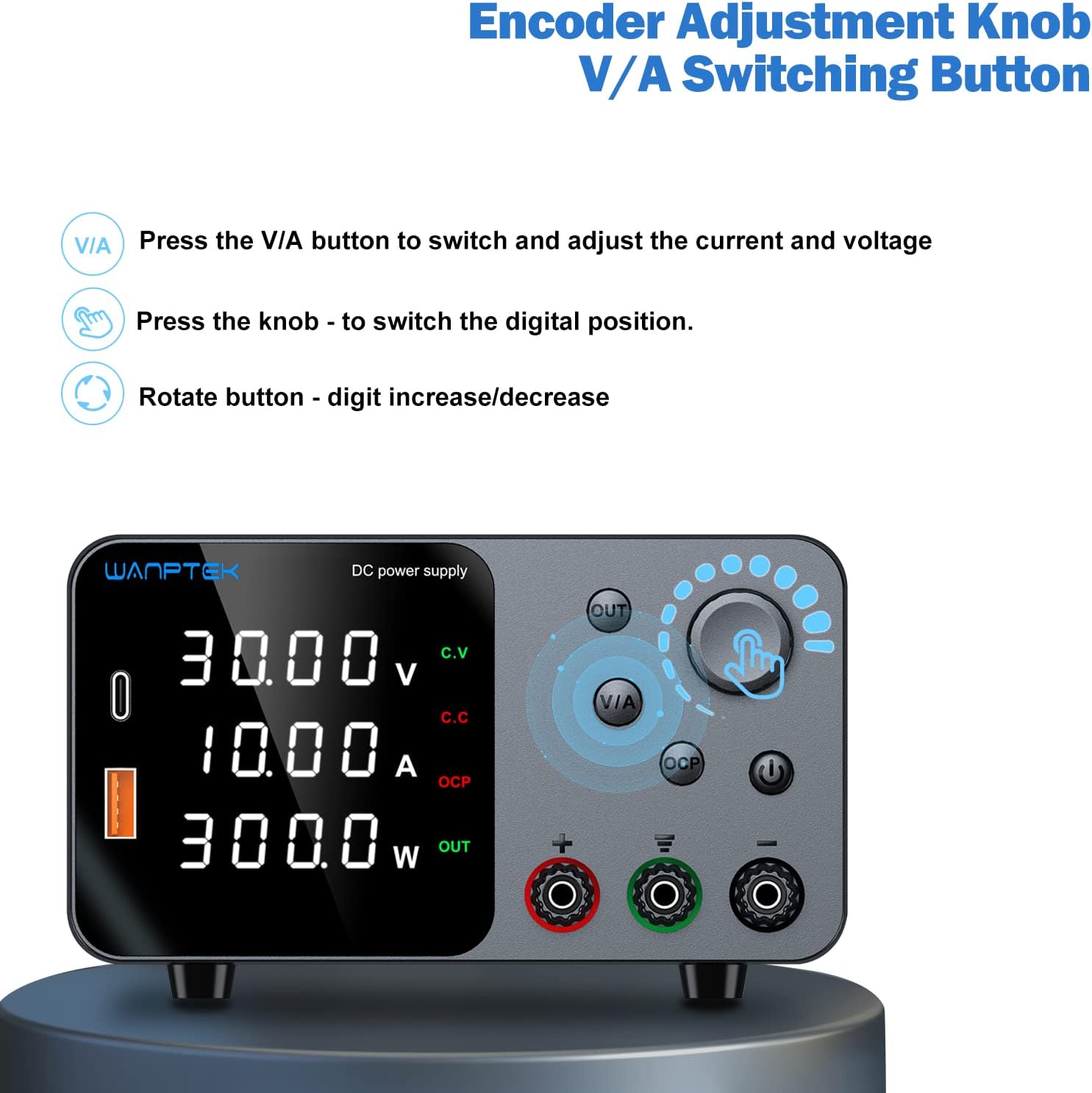

10. Encoder adjustment DC power supply

11. Voltage and current one-key conversion regulation

12. Built-in cooling fan, Smart turn on when temperature over 50℃

Specification: -

• Output Power: 300W
• Output voltage: 0~60V
• Output current: 0~5A
• Working environment: input voltage:AC 230V/115V±10%;50Hz/60Hz
• Working temperature:0℃～40℃;relative humidity:<80%RH
• Storage temperature:-10℃～70℃;relative humidity:<70%RH
• Constant voltage CV: Voltage stability:0.1%±3mV Load stability: 0.2%±3mV
• Ripple voltage:≤0.5% Vp-p 0 to rated voltage continuously adjustable
• Constant current CC: Current stability:0.1%±3mA
• Load stability: 0.2%±3mA
• Ripple current:≤0.5% Vp-p
• Recovery time:≤500μS
• Temperature coefficient:≤100ppm/℃ 0 to rated current continuously adjustable
• Display: LED digit display
• Display accuracy:0.5%±digits
• Display resolution: voltage 0.01V, current 0.001A
• Four-digit display 0.01 V/0.001 A
• USB-A/USB TYPE-C TPS605 Encoder adjustment DC power supply


Package Includes:

1 x DC power supply (Model as your choice)

1 x Power cord

1 x Test line

1 x Instructions / Quick Guide
