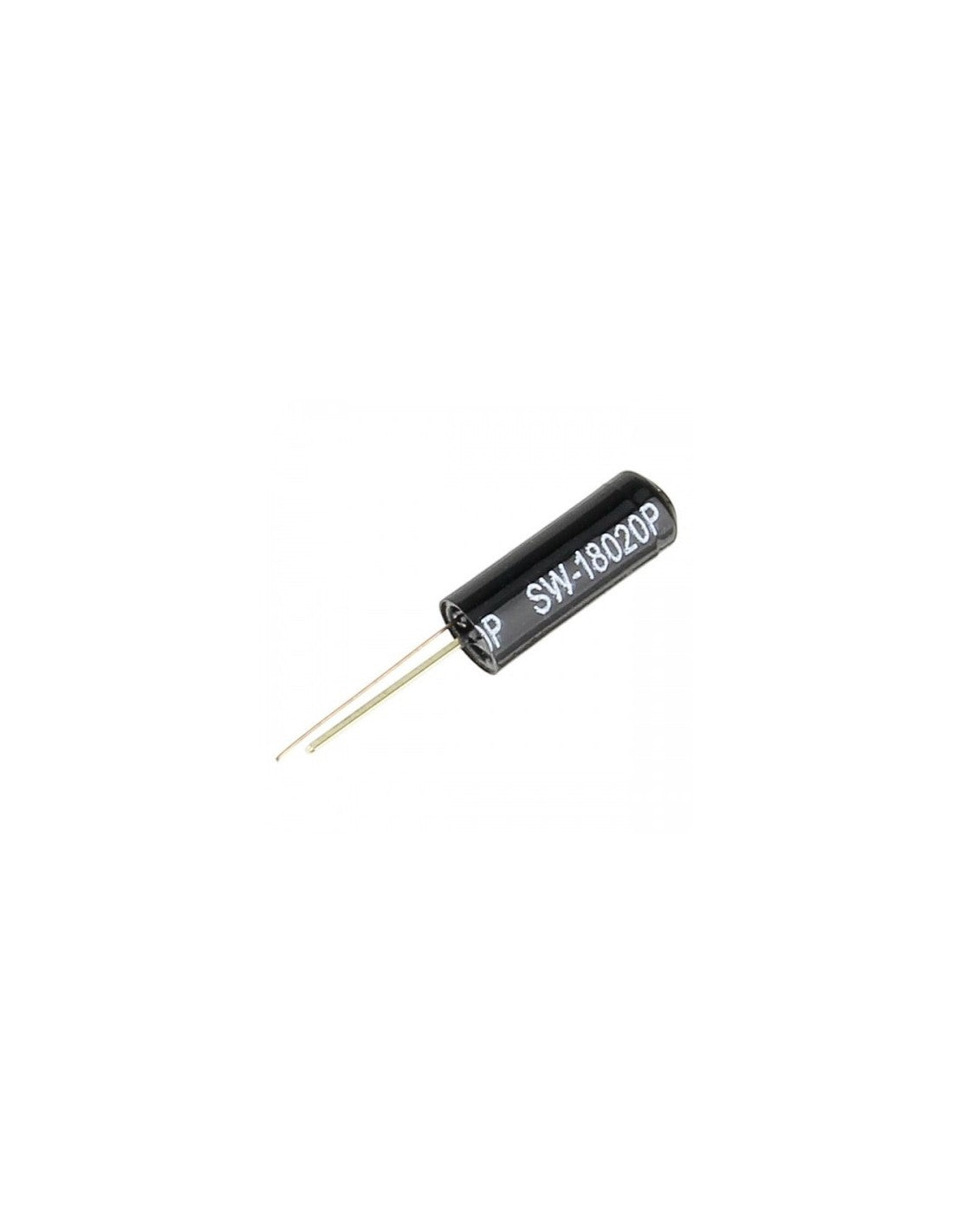

Small sensor can detect horizontal tilt, vertical flip, shock and vibration. It is formed by two contacts and two small metal spheres. When the sensor is in a horizontal position, the spheres connect contacts between them (ON-state), closing the circuit, when it is tilted more than 15? the contacts open (OFF-state). It is widely used in toys, small appliances, and anti-theft detection systems but also in smart-car and robot-car.
Operating voltage: <12V; Current tolerated < 20mA
Conduction time: 2ms; Contact resistance (closed): 10M?
Operating temperature range: -40 ~ +80? C; Operating lifespan: 100,000

Package Include 5 x Tilt Sensor Switch. Small sensor can detect horizontal tilt, vertical flip, shock and vibration. It is formed by two contacts and two small metal spheres. When the sensor is in a horizontal position, the spheres connect contacts between them (ON-state), closing the circuit, when it is tilted more than 15? the contacts open (OFF-state). It is widely used in toys, small appliances, and anti-theft detection systems but also in smart-car and robot-car. Operating voltage: <12V; Current tolerated < 20mA Conduction time: 2ms; Contact resistance (closed): 10M? Operating temperature range: -40 ~ +80? C; Operating lifespan: 100, 000
